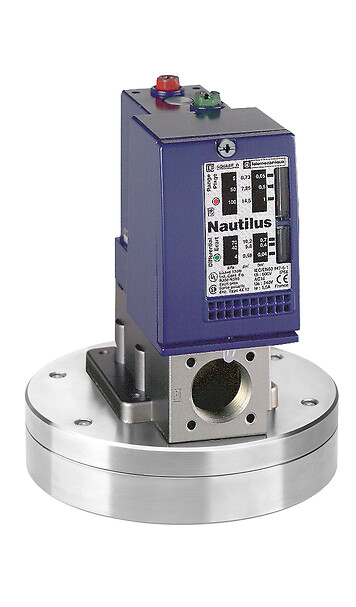

XMLCS02B2S12SB5 – Telemecanique
476,90 € excl. VAT
591,35 € incl. VAT
Pressure switch XMLC 2.5 bar - adjustable scale 2 thresholds - 2 C/O - Telemecanique
Pressure switch XMLC 2.5 bar - adjustable scale 2 thresholds - 2 C/O
SPECIFICATIONS
Main
Device short name
XMLC
pressure actuator
Diaphragm
Fluid connection type
G 1/4 (female) conforming to ISO 228
product specific application
30 bar adjusted
controlled fluid
Air (0-160 °C), fresh water (0-160 °C), hydraulic oil (0-160 °C)
Pressure switch type of operation
Regulation between 2 thresholds
pressure sensor type
Electromechanical pressure sensor
Complementary
local display
With
Product certifications
CSAUL
Auxiliary contacts operation
Simultaneous, snap action
Product or component type
Electromechanical pressure sensor
awg gauge
AWG 20...AWG 14
cable entry
Cable gland 7-13 mm
Contacts material
Silver contacts
Enclosure material
Zinc alloy
Contacts type and composition
2 C/O
Electrical shock protection class
Class I conforming to IEC 1140, class I conforming to IEC 536, class I conforming to NF C 20-030
Electrical circuit type
Control circuit
setting
External
Operating position
Any position
terminal block type
8 terminals
Materials in contact with fluid
SteelFPM, FKM
electrical connection
Screw-clamps terminals, 1 x 0.5...2 x 2.5 mm²
Operating rate
120 cyc/mn
Shock resistance
50 gn conforming to IEC 60068-2-27
Resistance across terminals
25 mOhm conforming to IEC 255-7 category 3, 25 mOhm conforming to NF C 93-050 method A
Scale type
Adjustable differential
Environment
ip degree of protection
IP66 conforming to IEC 60529
Range of product
Telemecanique Pressure sensors XM
standards
CSA C22.2 No 14CEUL 508IEC 60947-5-1
vibration resistance
4 gn conforming to IEC 60068-2-6 (f = 30-500 Hz)
protective treatment
TC standard version
