XCSRC10M12 - Preventa RFID safety switch, Telemecanique Safety switches XCS - Telemecanique - Preventa RFID safety switch, Telemecanique Safety switches XCS, contactless Single model, Unique pairing - Telemecanique - 0
XCSRC10M12 - Preventa RFID safety switch, Telemecanique Safety switches XCS - Telemecanique - Preventa RFID safety switch, Telemecanique Safety switches XCS, contactless Single model, Unique pairing - Telemecanique - 0
Pending restock

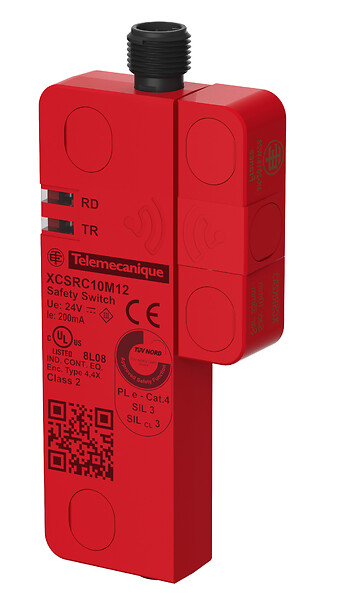

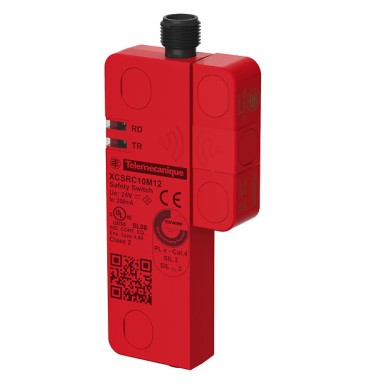

XCSRC10M12 – Telemecanique

104,54 € excl. VAT
129,63 € incl. VAT
Preventa RFID safety switch, Telemecanique Safety switches XCS, contactless Single model, Unique pairing - Telemecanique
 In cart
129,63 €
Preventa RFID safety switch, Telemecanique Safety switches XCS, contactless Single model, Unique pairing. This product is compatible with XCSRZSRC1, XCSRZSTK1, XZCP11V12L2, XZCP12V12L2, XZCP29P12L2. End of comm. announced. XCSRC10M12 is replaced by the following product:: XCSRM10M12
SPECIFICATIONS
Main
design Rectangular, standard
approach directions 3 directions-transponder with rotary sensing face
component name XCSRC
Complementary
[ue] rated operational voltage 24 V DC (- 20...10 %)SELV or PELV conforming to IEC 60204-1
Product certifications CSA 22-2TÜVFCCICE2RCMEcolab
response time 120 ms typical
Product or component type Preventa RFID safety switch
tightening torque < 1.5 N.m
marking CEEACFCCICTÜVRCMcULus
Electrical shock protection class Class III conforming to IEC 61140
safety reliability data PFHD = 5E-10/h conforming to IEC 62061, PFHD = 5E-10/h conforming to ISO 13849-1
Material Valox
switching frequency <= 0.5 Hz
Local signalling Green, orange and red 2 multi-colour LEDs
switching capacity in ma 200 mA
connector type M12 male
electrical connection 1 male connector
Safety outputs 2 NO
Shock resistance 30 gn for 11 ms conforming to IEC 60068-2-27
Safety level SIL 3 conforming to IEC 61508, SILCL 3 conforming to IEC 62061, PL = e conforming to ISO 13849-1, category 4 conforming to ISO 13849-1
Type of output stage Solid-state, PNP
Size Transponder: 50 x 15 x 15 mm, reader: 108.3 x 30 x 15 mm
Protection type Short-circuit protection
Environment
ip degree of protection IP65 conforming to IEC 60529, IP66 conforming to IEC 60529, IP67 conforming to IEC 60529, IP69K conforming to DIN 40050
Range of product Telemecanique Safety switches XCS
standards IEC 60947-5-3ISO 14119IEC 60947-5-2
vibration resistance 10 gn (f= 10-150 Hz) conforming to IEC 60068-2-6
