Pending restock
XCMW139 – Telemecanique
135,04 € excl. VAT
167,45 € incl. VAT

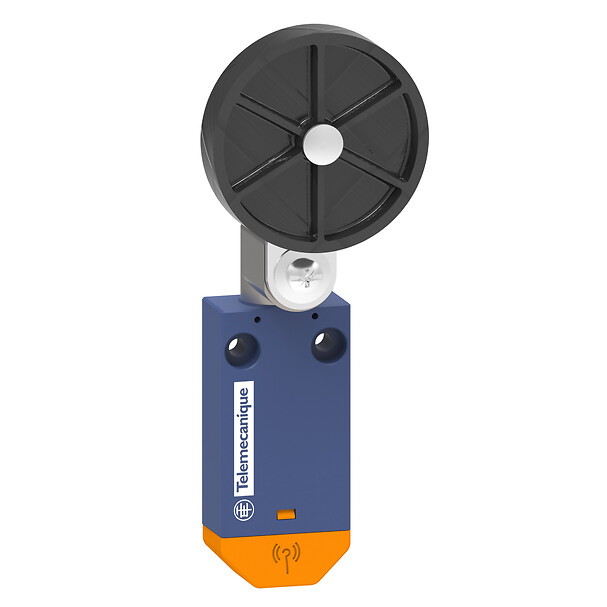

Wireless limit switch XCMW - plastic roller 50 mm, lever - Telemecanique
Wireless limit switch XCMW - plastic roller 50 mm, lever
SPECIFICATIONS
Main
Body type
Fixed
Device short name
XCMW
Series name
Standard format
head type
Rotary head
Complementary
electrical composition code
PW1
Communication network type
ZigBee green power - 2.4 GHz conforming to IEEE 802.15.4
response time
<= 2 ms
Product or component type
Wireless limit switch
contact operation
Snap action
Fixing mode
By 2 screws
body material
Plastic
Type of operator
Spring return roller lever
Ik degree of protection
IK04 conforming to IEC 62262
Radio agreement
IC conforming to RSS, FCC conforming to RCM
head material
Plastic
Lever material
Metal
Operating rate
60 CYCLE_PER_MINUTE
Switch actuation
By 30° cam
Type of approach
Lateral approach, 2 directions
Shock resistance
50 gn for 11 ms conforming to IEC 60068-2-27
Environment
Directives
1999/5/EC - R&TTE directive2004/108/EC - electromagnetic compatibility
ip degree of protection
IP65 conforming to IEC 60529
Range of product
Telemecanique Limit switches XC Standard
electromagnetic compatibility
Radiated emission, immunity for industrial environments, susceptibility to electromagnetic fields - test level: 3 V/m (80...2700 MHz, distance = 20 m), susceptibility to electromagnetic fields - test level: 10 V/m (80...2000 MHz), electrostatic discharge immunity test - test level: 6 kV (on contact (on metal parts)), electrostatic discharge immunity test - test level: 8 kV (in free air (in insulating parts))
standards
IEC 60947-5-1IEC 60947-1
vibration resistance
25 gn (f= 10-500 Hz) conforming to IEC 60068-2-6, +/- 10 mm (f= 2-11 Hz) conforming to IEC 60068-2-6
