XCMW102 - Wireless limit switch, Limit switches XC Standard - Telemecanique - Wireless limit switch, Limit switches XC Standard, XCMW, roller plunger - Telemecanique - 0
XCMW102 - Wireless limit switch, Limit switches XC Standard - Telemecanique - Wireless limit switch, Limit switches XC Standard, XCMW, roller plunger - Telemecanique - 0
Pending restock

XCMW102 – Telemecanique

88,21 € excl. VAT
109,38 € incl. VAT

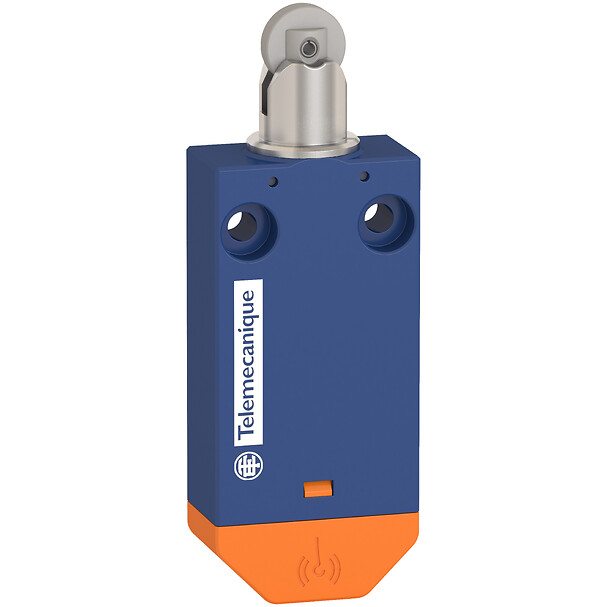

Wireless limit switch, Limit switches XC Standard, XCMW, roller plunger - Telemecanique
 In cart
109,38 €
Wireless limit switch, Limit switches XC Standard, XCMW, roller plunger. This product is compatible with XZBWR2STT24
SPECIFICATIONS
Main
Body type Fixed
Device short name XCMW
Series name Miniature format
head type Plunger head
Complementary
electrical composition code PW1
Communication network type ZigBee green power - 2.4 GHz conforming to IEEE 802.15.4
response time <= 2 ms
Product or component type Wireless limit switch
contact operation Snap action
Fixing mode By 2 screws
body material Plastic
Type of operator Spring return roller plunger metal
Ik degree of protection IK04 conforming to IEC 62262
Radio agreement IC conforming to RSS, FCC conforming to RCM
head material Metal
Lever material Metal
Operating rate 60 CYCLE_PER_MINUTE
Switch actuation By 30° cam
Type of approach Lateral approach, 2 directions
Shock resistance 50 gn for 11 ms conforming to IEC 60068-2-27
Sensor design Miniature
Environment
Directives 1999/5/EC - R&TTE directive2004/108/EC - electromagnetic compatibility
ip degree of protection IP65 conforming to IEC 60529
Range of product Telemecanique Limit switches XC Standard
electromagnetic compatibility Radiated emission, immunity for industrial environments, susceptibility to electromagnetic fields - test level: 3 V/m (80...2700 MHz, distance = 20 m), susceptibility to electromagnetic fields - test level: 10 V/m (80...2000 MHz), electrostatic discharge immunity test - test level: 6 kV (on contact (on metal parts)), electrostatic discharge immunity test - test level: 8 kV (in free air (in insulating parts))
standards IEC 60947-5-1IEC 60947-1
vibration resistance 25 gn (f= 10-500 Hz) conforming to IEC 60068-2-6, +/- 10 mm (f= 2-11 Hz) conforming to IEC 60068-2-6
