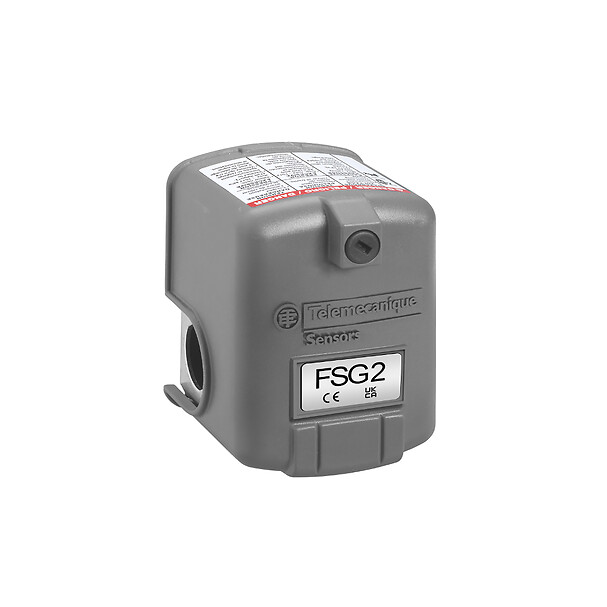

FSG2SP35 – Telemecanique
19,68 € excl. VAT
24,40 € incl. VAT
Pressure switch 4,6 bar - G 3/8 femal - 2 entries Pg 13.5 - Telemecanique
Pressure switch 4,6 bar - G 3/8 femal - 2 entries Pg 13.5
SPECIFICATIONS
Main
pressure actuator
Diaphragm
Fluid connection type
G 3/8 (female) conforming to ISO 228
product specific application
Not applicable
controlled fluid
Fresh water (0-70 °C), sea water (0-70 °C)
Pressure switch type of operation
Regulation between 2 thresholds
pressure sensor name
FSG
pressure sensor type
Electromechanical pressure sensor
Complementary
local display
Without
cable entry
2 entries incorporating Pg 13.5 plastic cable gland, cable outer diameter: 9-13 mm conforming to NF C 68-300
Enclosure material
PS
Contacts type and composition
2 NC snap action
Electrical shock protection class
Class I conforming to IEC 536
Electrical circuit type
Power circuit
setting
Internal
Operating position
Any position
terminal block type
4 terminals
Materials in contact with fluid
Zinc plated steelnitrilenylon 6/6
electrical connection
Screw-clamp terminals, clamping capacity: 1 x 1...2 x 2 mm²
Operating rate
10 CYCLE_PER_MINUTE
Scale type
Adjustable differential
Terminals description iso n°1
(1-2)NC(3-4)NC
Environment
ip degree of protection
IP65 conforming to IEC 60529
Range of product
Telemecanique Pressure sensors XM
standards
IEC 60730CE
protective treatment
TC
