Pending restock
9013GHG2J57 – Telemecanique
371,58 € excl. VAT
460,76 € incl. VAT

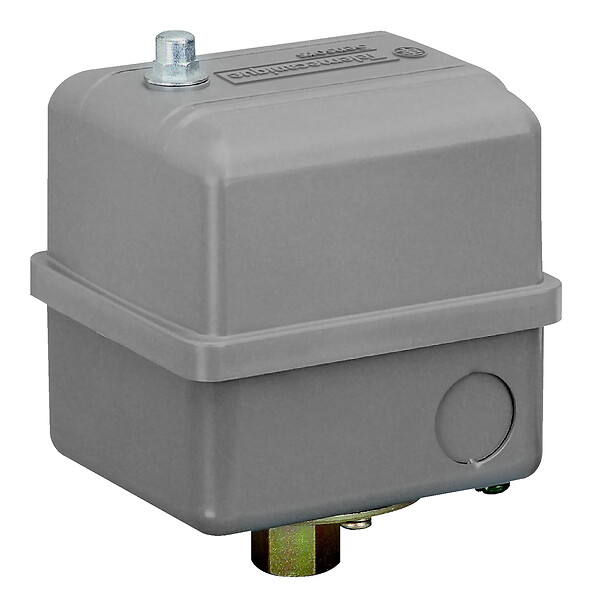

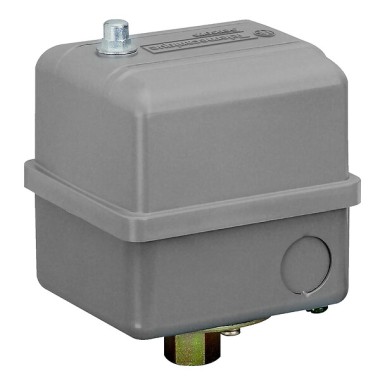

Pumptrol, pump or compressor switch 9013GH, adjustable diff., 120 150 PSI - Telemecanique
Pumptrol, pump or compressor switch 9013GH, adjustable diff., 120 150 PSI
SPECIFICATIONS
Main
pressure actuator
Diaphragm
Fluid connection type
0.25 inch NPSF internal conforming to UL 508
product specific application
Control electrically driven water pumps and air compressors
controlled fluid
Air (32-158 °F), fresh water (32-158 °F)
Pressure switch type of operation
Regulation between 2 thresholds
Type of packing
Individual
pressure sensor name
9013GH
pressure sensor type
Electromechanical pressure switch
Complementary
local display
Without
Product certifications
CSAUL listed
nema degree of protection
NEMA 1 conforming to UL 50
Quantity per set
1
Contacts type and composition
2 NC, snap action, DPST-DB, Form YY
Material
Polypropylene: cover, noryl thermoplastic resin or equivalent: cover
Electrical circuit type
Power circuit
setting
Internal
Operating position
Any position
terminal block type
4 terminals
repeat accuracy
+/- 3 %
Materials in contact with fluid
Zinc plated steel or equivalent flange, nitrile (Buna-N) or equivalent rubber diaphragm
electrical connection
Screw-clamp terminals, clamping capacity: 10 AWG, screw-clamp terminals, clamping capacity: 5.261 mm²
Operating rate
10 CYCLE_PER_MINUTE
Value of setting
120...150 psi
Scale type
Adjustable differential
Terminals description iso n°1
L2-T2L1-T1
Environment
ip degree of protection
IP20 conforming to IEC 60529
Range of product
Pumptrol
standards
CEUL 508NSF ANSI 372
protective treatment
None
