9013FSG42J16TZ22 – Telemecanique
132,14 € excl. VAT
163,86 € incl. VAT

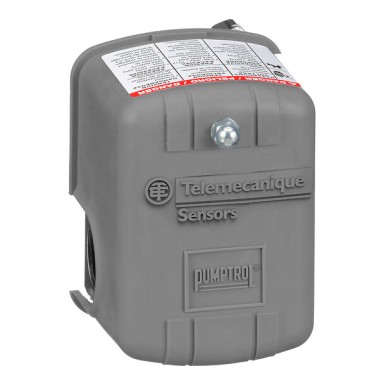

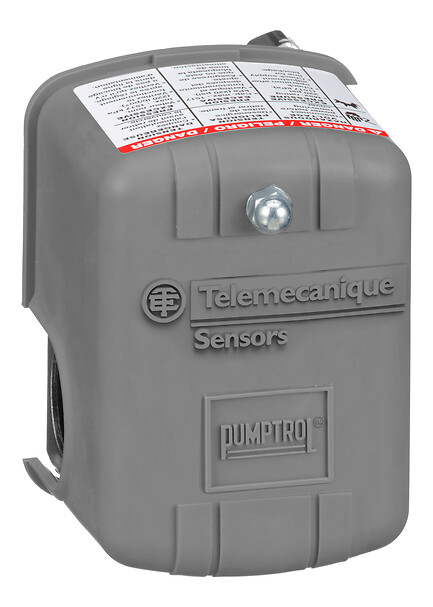

Pumptrol, water pump switch 9013FS, adjustable diff., 8 20 PSI - Telemecanique
Pumptrol, water pump switch 9013FS, adjustable diff., 8 20 PSI
SPECIFICATIONS
Main
pressure actuator
Diaphragm
Fluid connection type
0.25 inch conduit bushing - 0.5 inch long thread - on left conforming to UL 508
product specific application
Control electrically driven water pumps
controlled fluid
Fresh water (32-158 °F)
Pressure switch type of operation
Regulation between 2 thresholds
Type of packing
Individual
pressure sensor name
9013FS
pressure sensor type
Electromechanical pressure switch
Complementary
local display
Without
Product certifications
CSAUL listed
nema degree of protection
NEMA 1 conforming to UL 50
Quantity per set
1
Contacts type and composition
2 NC, snap action, DPST-DB, Form YY
Material
Polypropylene: cover, noryl thermoplastic resin or equivalent: cover
Electrical circuit type
Power circuit
setting
Internal
Operating position
Any position
terminal block type
4 terminals
repeat accuracy
+/- 3 %
Materials in contact with fluid
Zinc plated steel or equivalent flange, nitrile (Buna-N) or equivalent rubber diaphragm
electrical connection
Screw-clamp terminals, clamping capacity: 10 AWG, screw-clamp terminals, clamping capacity: 5.261 mm²
Operating rate
10 CYCLE_PER_MINUTE
Value of setting
8...20 psi
Scale type
Adjustable differential
Terminals description iso n°1
L2-T2L1-T1
Environment
ip degree of protection
IP20 conforming to IEC 60529
Range of product
Pumptrol
standards
NSF ANSI 61 Annex GCEUL 508
protective treatment
None
