9013FRG22J36P – Telemecanique
220,19 € excl. VAT
273,04 € incl. VAT

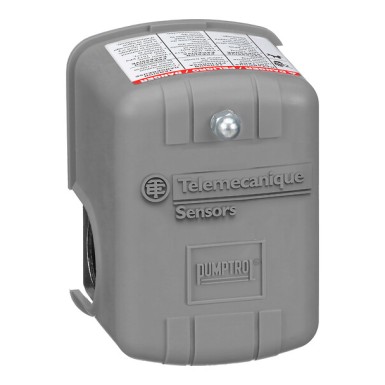

Pumptrol, water pump switch 9013FR, adjust diff., 10 5 PSI, reverse action - Telemecanique
Pumptrol, water pump switch 9013FR, adjust diff., 10 5 PSI, reverse action
SPECIFICATIONS
Main
pressure actuator
Diaphragm
Fluid connection type
0.25 inch NPSF internal conforming to UL 508
product specific application
Control electrically driven water pumps
controlled fluid
Fresh water (32-158 °F)
Pressure switch type of operation
Regulation between 2 thresholds
Type of packing
Individual
pressure sensor name
9013FR
pressure sensor type
Electromechanical pressure switch
Complementary
local display
Without
Product certifications
CSAUL listed
nema degree of protection
NEMA 1 conforming to UL 50
Quantity per set
1
Contacts type and composition
2 NO, snap action, DPST-DB, Form XX
Material
Polypropylene: cover, noryl thermoplastic resin or equivalent: cover
Electrical circuit type
Power circuit
setting
Internal
Operating position
Any position
terminal block type
4 terminals
repeat accuracy
+/- 3 %
Materials in contact with fluid
Zinc plated steel or equivalent flange, nitrile (Buna-N) or equivalent rubber diaphragm
electrical connection
Screw-clamp terminals, clamping capacity: 10 AWG, screw-clamp terminals, clamping capacity: 5.261 mm²
Operating rate
10 CYCLE_PER_MINUTE
Value of setting
10...5 psi
Scale type
Adjustable differential
Terminals description iso n°1
L2-T2L1-T1
Environment
ip degree of protection
IP20 conforming to IEC 60529
Range of product
Pumptrol
standards
NSF ANSI 61 Annex GCEUL 508
protective treatment
None
