9012GQG3 – Telemecanique
1 073,68 € excl. VAT
1 331,36 € incl. VAT

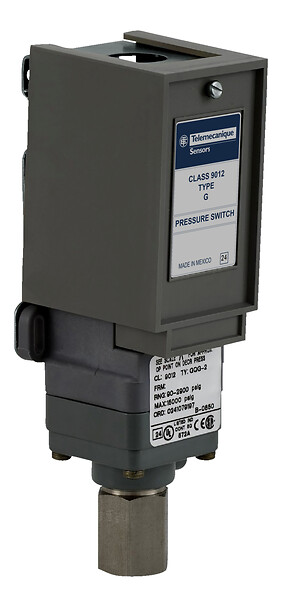

Pressure switch 9012G, adjustable scale, 2 thresholds, 170 to 5600 PSIG - Telemecanique
Pressure switch 9012G, adjustable scale, 2 thresholds, 170 to 5600 PSIG
SPECIFICATIONS
Main
pressure actuator
Piston
Fluid connection type
0.25 inch 18 NPTF conforming to UL 508
controlled fluid
Selected corrosive liquids (-15-250 °F), non-corrosive liquids, air, non-corrosive gas
Pressure switch type of operation
Regulation between 2 thresholds
pressure sensor name
9012G
pressure sensor type
Electromechanical pressure switch
Complementary
local display
Without
Product certifications
CECSA LR25490 class 3211 03UL listed file E12158 CCN NKPZ and CCN NTHT
nema degree of protection
NEMA 1 conforming to UL 50
cable entry
0.5 inch NPT conduit entrance
Enclosure material
Thermoplastic
Contacts type and composition
NC-NO, SPDT, Form C, snap action, silver nickel contacts
Electrical circuit type
Control circuit
Local signalling
Without:
maximum pressure
20000 psi
setting
Internal
Operating position
Any position
terminal block type
4 screw terminals
Materials in contact with fluid
Zinc plated steelViton fluorocarbon
electrical connection
Screw-clamp terminals, AWG 22...AWG 12
Operating rate
120 cyc/mn
Shock resistance
50 gn conforming to IEC 58-2-27
Scale type
Adjustable differential
Environment
Range of product
9012G
standards
CSA C22.2 No 14CEUL 508
vibration resistance
2 gn (f= 40-150 Hz) conforming to IEC 68-2-6
