9012GFW2 – Telemecanique
1 286,77 € excl. VAT
1 595,59 € incl. VAT

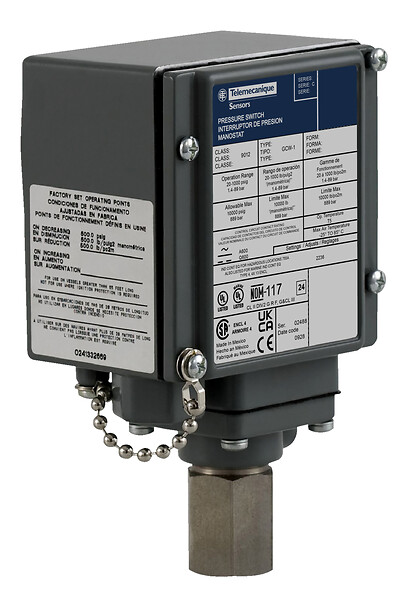

Pressure switch 9012G, fixed scale, 1 threshold, 90 to 2900 PSIG PSIG - Telemecanique
Pressure switch 9012G, fixed scale, 1 threshold, 90 to 2900 PSIG PSIG.
This product is compatible with 9049A26S, 9049UE1
SPECIFICATIONS
Main
pressure actuator
Piston
Fluid connection type
0.25 inch 18 NPTF conforming to UL 508
controlled fluid
Hydraulic oil (-15-250 °F), non-corrosive liquids (-15-250 °F), air (-15-250 °F), non-corrosive gas (-15-250 °F)
Pressure switch type of operation
Detection of 1 single threshold
pressure sensor name
9012G
pressure sensor type
Electromechanical pressure switch
Complementary
local display
Without
Product certifications
UL listed MarineCSA LR25490 class 3211 03UL listed
nema degree of protection
NEMA 4/4X/13 conforming to UL 50
cable entry
0.5 inch NPT conduit entrance
Enclosure material
Die cast aluminium alloy 380
Contacts type and composition
NC-NO, 2 SPDT-DB, Form Z, snap action, silver nickel contacts
Electrical circuit type
Control circuit
Local signalling
Without:
maximum pressure
15000 psi
setting
Internal
Operating position
Any position
terminal block type
4 screw terminals
Materials in contact with fluid
Teflonzinc plated steel
electrical connection
Screw-clamp terminals, AWG 22...AWG 12
Operating rate
120 cyc/mn
Shock resistance
50 gn conforming to IEC 58-2-27
Scale type
Fixed
Environment
Range of product
9012G
standards
CSA C22.2 No 14CEUL 508
vibration resistance
2 gn (f= 40-150 Hz) conforming to IEC 68-2-6
