9012GFW1G17H10Z18 – Telemecanique
3 821,47 € excl. VAT
4 738,63 € incl. VAT

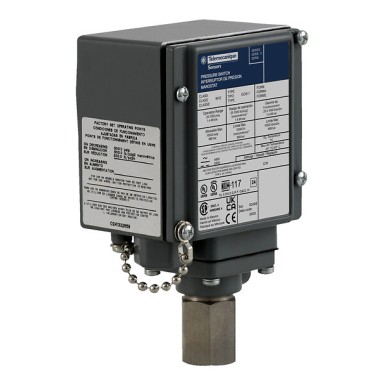

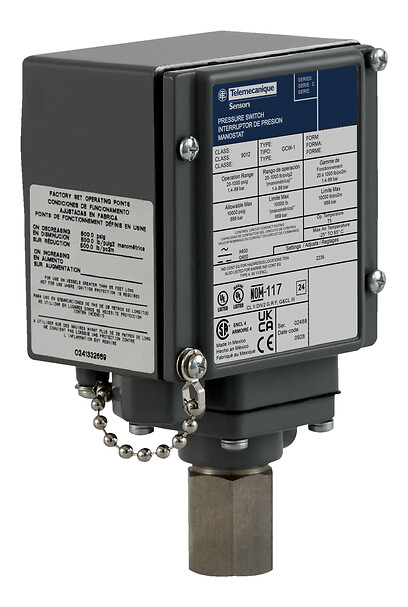

Pressure switch 9012G, fixed scale, 1 threshold, 20 to 1000 PSIG PSIG - Telemecanique
Pressure switch 9012G, fixed scale, 1 threshold, 20 to 1000 PSIG PSIG
SPECIFICATIONS
Main
pressure actuator
Piston
Fluid connection type
0.44 inch 20 UNF-2B conforming to UL 508
controlled fluid
Hydraulic oil (-15-250 °F), non-corrosive liquids (-15-250 °F), air (-15-250 °F), non-corrosive gas (-15-250 °F)
Pressure switch type of operation
Detection of 1 single threshold
pressure sensor name
9012G
pressure sensor type
Electromechanical pressure switch
Complementary
local display
Without
Product certifications
UL listed MarineCSA LR25490 class 3211 03UL listed
nema degree of protection
NEMA 4/4X/13 conforming to UL 50
Enclosure material
Die cast aluminium alloy 380
Contacts type and composition
NC-NO, 2 SPDT-DB, Form Z, snap action, silver nickel contacts
Electrical circuit type
Control circuit
Local signalling
1 LED: (red) 120 V AC (105...125 V)
maximum pressure
10000 psi
setting
Internal
Operating position
Any position
terminal block type
4 screw terminals
Materials in contact with fluid
440 stainless steelzinc plated steel
electrical connection
1 male connector (mini) 5 pins
Operating rate
120 cyc/mn
Shock resistance
50 gn conforming to IEC 58-2-27
Terminal identifier
(1-5)NC
Scale type
Fixed
Environment
Range of product
9012G
standards
CSA C22.2 No 14CEUL 508
vibration resistance
2 gn (f= 40-150 Hz) conforming to IEC 68-2-6
