9012GBW22 – Telemecanique
3 371,34 € excl. VAT
4 180,47 € incl. VAT

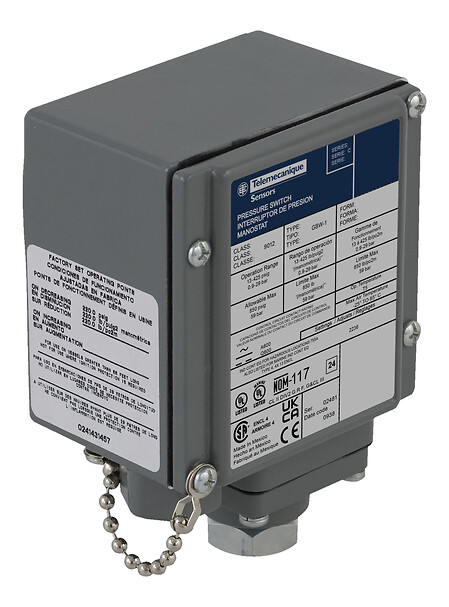

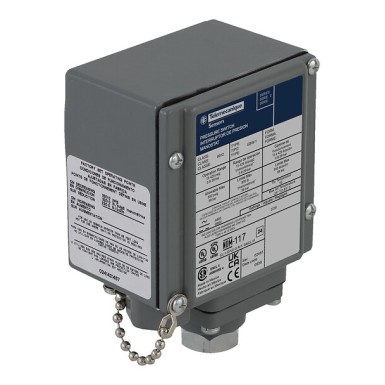

Pressure switch 9012G, adjustable scale, 2 thresholds, 20 to 675 PSIG - Telemecanique
Pressure switch 9012G, adjustable scale, 2 thresholds, 20 to 675 PSIG
SPECIFICATIONS
Main
pressure actuator
Diaphragm nitrile (Buna-N)
Fluid connection type
0.25 inch 18 NPTF conforming to UL 508
controlled fluid
Hydraulic oil (-40-250 °F), non-corrosive liquids (-40-250 °F), air (-40-250 °F), non-corrosive gas (-40-250 °F)
Pressure switch type of operation
Regulation between 2 thresholds
pressure sensor name
9012G
pressure sensor type
Electromechanical pressure switch
Complementary
local display
Without
Product certifications
UL listed MarineCSA LR25490 class 3211 03UL listed
nema degree of protection
NEMA 4/4X/13 conforming to UL 50
cable entry
0.5 inch NPT conduit entrance
Enclosure material
Die cast aluminium alloy 380
Contacts type and composition
2(NC-NO), DPDT-DB, Form ZZ, snap action, silver nickel contacts
Electrical circuit type
Control circuit
Local signalling
Without:
maximum pressure
2000 psi
setting
Internal
Operating position
Any position
terminal block type
8 screw terminals
Materials in contact with fluid
Zinc plated steelnitrile (Buna-N)
electrical connection
Screw-clamp terminals, AWG 22...AWG 12
Operating rate
120 cyc/mn
Shock resistance
50 gn conforming to IEC 58-2-27
Terminal identifier
(2-4)NC(3)gnd
Scale type
Adjustable differential
Environment
Range of product
9012G
standards
CSA C22.2 No 14CEUL 508
vibration resistance
2 gn (f= 40-150 Hz) conforming to IEC 68-2-6
