9012GAR4 – Telemecanique
5 008,29 € excl. VAT
6 210,28 € incl. VAT

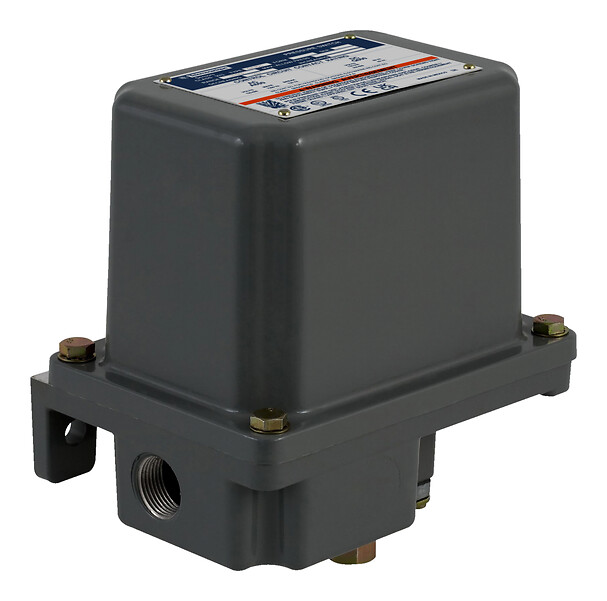

Pressure switch 9012G, adjustable scale, 2 thresholds, 1.5 to 75 PSIG - Telemecanique
Pressure switch 9012G, adjustable scale, 2 thresholds, 1.5 to 75 PSIG
SPECIFICATIONS
Main
pressure actuator
Diaphragm nitrile (Buna-N)
Fluid connection type
0.25 inch 18 NPTF conforming to UL 508
controlled fluid
Hydraulic oil (-40-250 °F), non-corrosive liquids (-40-250 °F), air (-40-250 °F), non-corrosive gas (-40-250 °F)
Pressure switch type of operation
Regulation between 2 thresholds
pressure sensor name
9012G
pressure sensor type
Electromechanical pressure switch
Complementary
local display
Without
Product certifications
UL listed HazLocCSA LR25490 class 3211 03UL listedCSA LR26817 class 3218 02
nema degree of protection
NEMA 7/9 conforming to UL 698
cable entry
0.5 inch NPT conduit entrance
Enclosure material
Cast aluminium
Contacts type and composition
NC-NO, SPDT-DB, Form Z, snap action, silver nickel contacts
Electrical circuit type
Control circuit
Local signalling
Without:
maximum pressure
240 psi
setting
Internal
Operating position
Any position
terminal block type
4 screw terminals
Materials in contact with fluid
Zinc plated steel
electrical connection
Screw-clamp terminals, AWG 22...AWG 12
Operating rate
120 cyc/mn
Shock resistance
50 gn conforming to IEC 58-2-27
Scale type
Adjustable differential
Environment
Range of product
9012G
standards
CSA C22.2 No 14CEUL 508
vibration resistance
2 gn (f= 40-150 Hz) conforming to IEC 68-2-6
