9007AC1 – Telemecanique
136,54 € excl. VAT
169,31 € incl. VAT

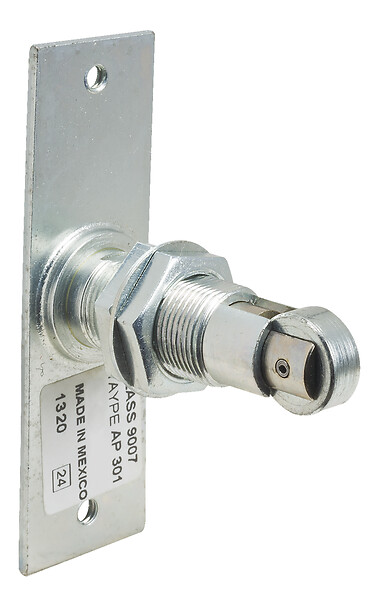

Snap limit switch, 9007, 600 VAC 15amp AC +options - Telemecanique
Snap limit switch, 9007, 600 VAC 15amp AC +options
SPECIFICATIONS
Main
Body type
Fixed
Device short name
9007AO/CO
Series name
Heavy duty
Complementary
Product or component type
Snap limit switch
nema degree of protection
NEMA 1 conforming to Nema type 250
Contacts material
Silver contacts
contact operation
Snap action
Contacts type and composition
NC-NO, switch function: SPDT-DB
Fixing mode
By the body
body material
Cast zinc
Material
Metal
Type of operator
Spring return lever arm metal cabinet door operator
Mounting mode
Cabinet door type
Positive opening
Without
electrical connection
1-2 cables for 6 binder head screw terminals (AWG 22...AWG 14)
Movement of operating head
Linear
Operator profile
Plunger head
Switch actuation
On end
Type of approach
Vertical approach, 1 direction
Terminals description iso n°1
(3-4)NO(1-2)NC
Environment
ip degree of protection
IP20 conforming to IEC 60529
Range of product
9007
