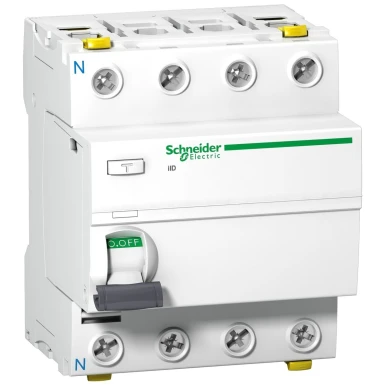

A9Z21425 - Residual current circuit breaker (RCCB), Acti9 iID, 4P, 25A, A type, 30mA, double terminal - Schneider Electric

Expected in 2-4 weeks
A9Z21425 - Residual current circuit breaker (RCCB), Acti9 iID, 4P, 25A, A type, 30mA, double terminal - Schneider Electric - Residual current circuit breaker (RCCB), Acti9 iID, 4P, 25A, A type, 30mA, double terminal - Schneider Electric - 0
A9Z21425 - Residual current circuit breaker (RCCB), Acti9 iID, 4P, 25A, A type, 30mA, double terminal - Schneider Electric
67,08 € excl. VAT
83,18 € incl. VAT
Text About:
Residual current circuit breaker (RCCB), Acti9 iID, 4P, 25A, A type, 30mA, double terminal - Schneider Electric
83,18 €
SPECIFICATIONS
Main
Device short name iID
Range Acti9
Earth-leakage protection class Type A
Neutral position Left
Earth-leakage protection time delay Instantaneous
Earth-leakage sensitivity 30 mA
Product Name Acti9 iID
[ui] rated insulation voltage 500 V AC 50/60 Hz
Complementary
9 mm pitches 8
[in] rated current 25 A
[ue] rated operational voltage 380...415 V AC 50/60 Hz
[ics] rated service breaking capacity Idm 1500 A
Im 1500 A
Control type Toggle
Handle front plate colour 91 mm
Product or component type Residual current circuit breaker (RCCB)
tightening torque 3.5 N.m top or bottom
[uimp] rated impulse withstand voltage 6 kV
Connections - terminals Double terminal front 1…35 mm² rigid
Double terminal front 1…25 mm² flexible
Double terminal front 1…25 mm² flexible with ferrule
Double terminal back 1…25 mm² rigid
Double terminal back 1…16 mm² flexible
Double terminal back 1…16 mm² flexible with ferrule
Locking options description Padlocking device
Contact position indication Yes
width (w) 72 mm
network frequency 50/60 Hz
Colour White
Mounting mode Clip-on
Net weight 0.37 kg
wire stripping length 14 mm for top or bottom connection
Mounting support DIN rail
depth 73 mm
mechanical durability 20000 cycles
electrical durability AC-1: 15000 cycles
Network type AC
Pollution degree 3
residual current tripping technology Voltage independent
Rated conditional short-circuit current 10 kA
Poles description 4P
Environment
Ambient air temp for storage/transportation -40…85 °C
ip degree of protection IP20 conforming to IEC 60529
IP40 (modular enclosure) conforming to IEC 60529
ambient air temperature for operation -25…60 °C
electromagnetic compatibility 8/20 µs impulse withstand, 250 A conforming to EN/IEC 61008-1
standards EN/IEC 61008-1
EN/IEC 61008-2-1
About this product

The A9Z21425 - Residual current circuit breaker (RCCB), Acti9 iID, 4P, 25A, A type, 30mA, double terminal is crafted to cater to the obligations of industry specialists, such as electrical installers, electrical fitters, support service firms, and original producers. A9Z21425 provides superior robustness and value for designers in the automation and control industry. This Residual current circuit breaker (RCCB), Acti9 iID, 4P, 25A, A type, 30mA, double terminal and other iC60 from Schneider Electric can be ordered at the unbeatable price and shipment duration through baltelec.eu, an independent provider catering to engineers in their gathering needs.

Engineers who have selected Schneider Electric iC60 have commonly applauded the producer's stability. It has been remarked that the notable capability of A9Z21425 - Residual current circuit breaker (RCCB), Acti9 iID, 4P, 25A, A type, 30mA, double terminal extends to a spectrum of operations. Its superior features make it proper pick to cater to varied requirements, ensuring the success of your industrial, tertiary, and automation projects.

Our specialists concentrates in addressing industrial and tertiary professionals’ needs. We appreciate the unique expectations and standards of our consumers in the niche. By partnering with our professionals, our partners receive access to the finest price lists and availability of premium products like A9Z21425 - Residual current circuit breaker (RCCB), Acti9 iID, 4P, 25A, A type, 30mA, double terminal from Schneider Electric at an attractive price. Our registered accounts benefit from special savings and expedited requests handling.

Move quickly and secure A9Z21425 - Residual current circuit breaker (RCCB), Acti9 iID, 4P, 25A, A type, 30mA, double terminal at our well-established and easy-to-use webshop. Don't delay in making this astute investment that validates the paramount quality and addresses the specific expectations of clients like yourselves.

Should you have any inquiries or concerns about A9Z21425 - Residual current circuit breaker (RCCB), Acti9 iID, 4P, 25A, A type, 30mA, double terminal or any other Schneider Electric products, get in touch with us or refer to our Information center section below. We have curated answers to regular questions to guide you further in making an wise decision about industrial and tertiary electrical components.

Remember, A9Z21425 - Residual current circuit breaker (RCCB), Acti9 iID, 4P, 25A, A type, 30mA, double terminal from Schneider Electric is unfailing, budget-friendly, and better to opposing companies in the iC60 category. Make it a part of your network today. Take advantage of at baltele.eu, your esteemed seller for all your iC60.

In our Baltelec.eu cyber store you will discover Residual current circuit breaker (RCCB), Acti9 iID, 4P, 25A, A type, 30mA, double terminal - A9Z21425 worth 81.84 €, which will be a steadfast and new solution for your necessities. This product is produced by the Schneider Electric brand using the state-of-the-art technologies and obeys the top standards of defense and performance. We present things from the iC60 category that blend durability and usefulness, which is an premium decision for various operations. Without consideration of whether you want tools for small fabrication or for proficient industrial employment, Residual current circuit breaker (RCCB), Acti9 iID, 4P, 25A, A type, 30mA, double terminal will be a steadfast aid in your job.

Baltelec tries to make the buying process as convenient and fast as workable for our clients. We offer detailed depictions and high-quality photographs of Residual current circuit breaker (RCCB), Acti9 iID, 4P, 25A, A type, 30mA, double terminal so that you can make an educated choice. A team of authorities is always ready to help you with any wonder in the iC60 section pertaining to the choosing and use of supplies. We are guaranteed that Residual current circuit breaker (RCCB), Acti9 iID, 4P, 25A, A type, 30mA, double terminal will meet your demands and become an imperative element of your device for just 81.84 €.
