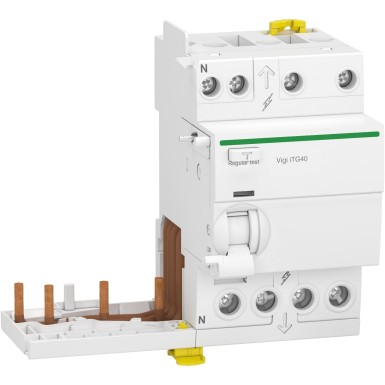

A9Y74740 - Acti9 iTG40 - Vigi differential module group head - 3P+N 40A 30mA type A SI - Schneider Electric

Expected in 2-4 weeks

excl. VAT

incl. VAT

Text About:

Acti9 iTG40 - Vigi differential module group head - 3P+N 40A 30mA type A SI - Schneider Electric

In cart

SPECIFICATIONS

Main

Range Acti9

name of the device Vigi iTG40

type of product or equipment Blocs différentiels Vigi

differential sensitivity 30 mA

[ui] rated insulation voltage 440 V CA 50 Hz se conformer à EN/CEI 61009-2-1

neutral pole position Gauche

Complementary

9 mm pitches 6

[ue] rated operational voltage 400 V CA 50 Hz

range compatibility Acti9 Acti9 iDT40

electrical connection on circuit breaker Par vis

Handle front plate colour 91 mm

tightening torque 2 N.m haut

[uimp] rated impulse withstand voltage 4 kV se conformer à EN/CEI 61009-2-1

in rated operational current 40 A

mode d'installation Encliquetable

electrical life 10000 cycle

connection mode Borne du type à cage haut1…16 mm² rigide
Borne du type à cage haut1…10 mm² souple

mechanical endurance 20000 cycle

width (w) 108 mm

network frequency 50 Hz

Colour Blanc

delay Instantané

voltage indication Signalisation de défaut

position of the switchgear in the installation Groupe d'arrivées

wire stripping length 14 mm pour haut connexion

depth 74 mm

differential technology Indépendant de la tension

mounting bracket Rail DIN

Network type Type A-SI (Super Immunisé)

Poles description 3P + N

Environment

degree of pollution 3 se conformer à EN/CEI 61009-2-1

ip degree of protection IP20 conforming to CEI 60529
IP40 (boîtier modulaire) conforming to CEI 60529

operating altitude 2000 m

product certificates CE

standards EN/CEI 61009-2-1

quality labels NF

relative humidity 95 % à 55 °C

operating temperature -25…60 °C

storage room temperature -40…85 °C
