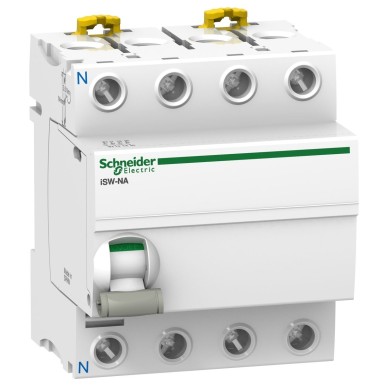

A9S70740 - Acti9 iSW NA - switch-disconnector - 3P+N - 40A 415VAC - Schneider Electric

Expected in 2-4 weeks EAN: 3606480098949
A9S70740 - Acti9 iSW NA - switch-disconnector - 3P+N - 40A 415VAC - Schneider Electric - Acti9 iSW NA - switch-disconnector - 3P+N - 40A 415VAC - Schneider Electric - 0
EAN: 3606480098949
A9S70740 - Acti9 iSW NA - switch-disconnector - 3P+N - 40A 415VAC - Schneider Electric
46,80 € excl. VAT
58,03 € incl. VAT
Text About:
Acti9 iSW NA - switch-disconnector - 3P+N - 40A 415VAC - Schneider Electric
58,03 €
SPECIFICATIONS
Main
Range Acti9
sectioning ability Oui se conformer à EN/CEI 60947-3
job category AC-22A se conformer à EN/CEI 60947-3
name of the device iSW-NA
type of product or equipment Interrupteur-sectionneur
Product Name Acti 9 iSW-NA
[ui] rated insulation voltage 500 V CA 50/60 Hz se conformer à EN/CEI 60947-3
neutral pole position Gauche
Complementary
9 mm pitches 8
associated accessories Déclenchement
[icm] rated short circuit making capacity 5 kA sectionneur seulement
[ie] rated operational current 40 A à 400/415 V CA 50/60 Hz
[ue] rated operational voltage 400/415 V CA 50/60 Hz
application Isolation
Contrôle
[icw] rated short-time withstand current 20 kA pendant 1s
Handle front plate colour 85 mm
tightening torque 3,5 N.m
[uimp] rated impulse withstand voltage 6 kV se conformer à EN/CEI 60947-3
compatibility of distributors, combs, busbars Haut ou bas : oui
product weight 0,3 kg
fully apparent cut Oui
mode d'installation Encliquetable
electrical life 10000 cycle
connection mode Borne du type à cage (haut ou bas) 1 câble(s) 1…25 mm² souple sans extrémité de câble
Borne du type à cage (haut ou bas) 1 câble(s) 1…35 mm² rigide sans extrémité de câble
mechanical endurance 20000 cycle
width (w) 72 mm
Colour Blanc
voltage indication Indication ON/OFF
wire stripping length 14 mm
depth 74 mm
mounting bracket Rail DIN
order type Par maneton
Déclenchement à distance
Poles description 3P + N
Environment
degree of pollution 3 se conformer à CEI 60947-3
ip degree of protection IP20
operating ambient temperature -35…70 °C
standards CEI 60947-3
EN 60947-3
relative humidity 95 % à 55 °C
storage room temperature -40…85 °C
tropicalization 2
About this product

The A9S70740 - Acti9 iSW NA - switch-disconnector - 3P+N - 40A 415VAC is formulated to address the obligations of trade buyers, such as switchboard fabricators, wiring experts, support service firms, and primary equipment makers. A9S70740 furnishes first-rate excellence and worth for developers in the power engineering industry. This Acti9 iSW NA - switch-disconnector - 3P+N - 40A 415VAC and other iSW from Schneider Electric are accessible at the finest pricing and delivery period through BALTELEC online store, a reputable reseller attending to practitioners in their provision needs.

Consumers who have opted for Schneider Electric iSW have persistently praised the brand's soundness. It has been remarked that the notable productivity of A9S70740 - Acti9 iSW NA - switch-disconnector - 3P+N - 40A 415VAC extends to a wide range of applications. Its excellent aspects make it suitable for wide-ranging specifications, promoting success in your industrial, tertiary, and automation efforts.

BALTELEC concentrates in meeting industrial and tertiary professionals’ needs. We get the particular demands and desires of our stakeholders in the niche. By teaming up with our company, you acquire access to the best rates and lead time of excellent products like A9S70740 - Acti9 iSW NA - switch-disconnector - 3P+N - 40A 415VAC from Schneider Electric at a reasonable price. Baltelec account members get more savings and expedited requests handling.

Seize the moment and acquire A9S70740 - Acti9 iSW NA - switch-disconnector - 3P+N - 40A 415VAC at our secure and simple internet shop. Don't delay in making this astute option that affirms the supreme quality and achieves the personalized needs of clients like your company.

Should there be any queries or concerns about A9S70740 - Acti9 iSW NA - switch-disconnector - 3P+N - 40A 415VAC or any other Schneider Electric products, drop us a line or refer to our Frequently Asked Queries section below. We have brought together answers to recurring concerns to serve you further in making an thoughtful decision about industrial and tertiary electrical components.

Remember, A9S70740 - Acti9 iSW NA - switch-disconnector - 3P+N - 40A 415VAC from Schneider Electric is credible, affordable, and excellent to opposing companies in the iSW category. Make it a part of your configuration now. Order at Baltelec webstore, your dependable vendor for all your professional electrical equipment and automation needs.

In our Baltelec.eu dot-com store you will encounter Acti9 iSW NA - switch-disconnector - 3P+N - 40A 415VAC - A9S70740 worth 57.10 €, which will be a secure and up-to-date solution for your preferences. This object is formulated by the Schneider Electric brand using the freshest technologies and adheres to the peak standards of precaution and workmanship. We extend produce from the iSW category that combine toughness and utility, which is an top-notch election for various uses. In spite of whether you need gear for small production or for specialized industrial purpose, Acti9 iSW NA - switch-disconnector - 3P+N - 40A 415VAC will be a steadfast helper in your undertaking.

Baltelec aims to make the acquiring process as convenient and fast as achievable for our patrons. We offer detailed summaries and high-quality snapshots of Acti9 iSW NA - switch-disconnector - 3P+N - 40A 415VAC so that you can make an briefed choice. A team of adepts is always ready to help you with any uncertainties in the iSW section associated to the determining and use of materials. We are persuaded that Acti9 iSW NA - switch-disconnector - 3P+N - 40A 415VAC will meet your hopes and become an essential element of your apparatus for just 57.10 €.
