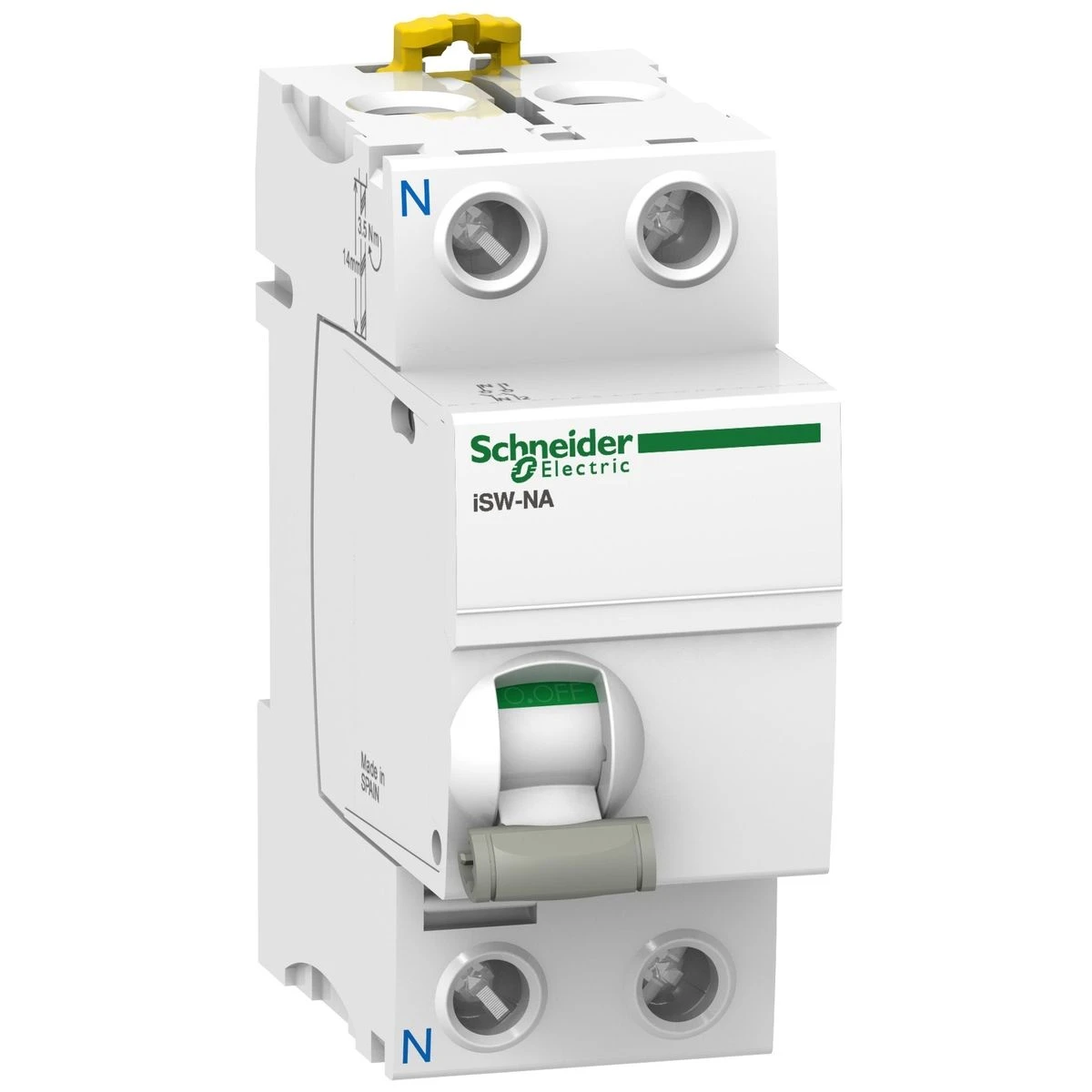

A9S70640 - Acti9 iSW NA - switch-disconnector - 1P+N - 40A 250VAC - Schneider Electric

In stock EAN: 3606480098901
A9S70640 - Acti9 iSW NA - switch-disconnector - 1P+N - 40A 250VAC - Schneider Electric - Acti9 iSW NA - switch-disconnector - 1P+N - 40A 250VAC - Schneider Electric - 0
EAN: 3606480098901
A9S70640 - Acti9 iSW NA - switch-disconnector - 1P+N - 40A 250VAC - Schneider Electric
21,35 € excl. VAT
26,04 € incl. VAT
Text About:
Acti9 iSW NA - switch-disconnector - 1P+N - 40A 250VAC - Schneider Electric
26,04 €
SPECIFICATIONS
Main
Range Acti9
sectioning ability Oui se conformer à EN/CEI 60947-3
job category AC-22A se conformer à EN/CEI 60947-3
name of the device iSW-NA
type of product or equipment Interrupteur-sectionneur
Product Name Acti 9 iSW-NA
[ui] rated insulation voltage 500 V CA 50/60 Hz se conformer à EN/CEI 60947-3
neutral pole position Gauche
Complementary
9 mm pitches 4
associated accessories Déclenchement
[icm] rated short circuit making capacity 5 kA sectionneur seulement
[ie] rated operational current 40 A à 230/240 V CA 50/60 Hz
[ue] rated operational voltage 230/240 V CA 50/60 Hz
application Isolation
Contrôle
[icw] rated short-time withstand current 800 A pendant 1s
Handle front plate colour 85 mm
tightening torque 3,5 N.m
[uimp] rated impulse withstand voltage 6 kV se conformer à EN/CEI 60947-3
compatibility of distributors, combs, busbars Haut ou bas : oui
product weight 0,17 kg
fully apparent cut Oui
mode d'installation Encliquetable
electrical life 15000 cycle
connection mode Borne du type à cage (haut ou bas) 1 câble(s) 1…25 mm² souple avec extrémité de câble
Borne du type à cage (haut ou bas) 1 câble(s) 1…25 mm² souple sans extrémité de câble
Borne du type à cage (haut ou bas) 1 câble(s) 1…35 mm² rigide sans extrémité de câble
mechanical endurance 20000 cycle
width (w) 36 mm
Colour Blanc
voltage indication Indication ON/OFF
wire stripping length 14 mm
depth 74 mm
mounting bracket Rail DIN
order type Par maneton
Déclenchement à distance
Poles description 1P + N
Environment
degree of pollution 3 se conformer à CEI 60947-3
ip degree of protection IP20
operating ambient temperature -35…70 °C
standards CEI 60947-3
EN 60947-3
relative humidity 95 % à 55 °C
storage room temperature -40…85 °C
tropicalization 2
About this product

The A9S70640 - Acti9 iSW NA - switch-disconnector - 1P+N - 40A 250VAC is crafted to match the expectations of technical experts, such as switchgear manufacturers, wiremen, facility upkeep providers, and original producers. A9S70640 grants unmatched efficiency and value for technicians in the electrical engineering industry. This Acti9 iSW NA - switch-disconnector - 1P+N - 40A 250VAC and other iSW from Schneider Electric can be ordered the best price and distribution time through BALTELEC, an independent reseller serving experts in their purchasing needs.

Professionals who have purchased Schneider Electric iSW have consistently praised the manufacturer’s trustworthiness. It has been remarked that the superior competence of A9S70640 - Acti9 iSW NA - switch-disconnector - 1P+N - 40A 250VAC extends to a broad spectrum of functions. Its premium attributes make it appropriate for assorted uses. Your developed solution will excel in quality, energy-efficiency and price.

BALTELEC centers in addressing industrial and tertiary professionals’ needs. We recognize the special specifications and requirements of our patrons in the sector. By collaborating with Baltelec.eu, your team receive access to the optimal rates and lead time of superior products like A9S70640 - Acti9 iSW NA - switch-disconnector - 1P+N - 40A 250VAC from Schneider Electric at an attractive price. Registered customers take pleasure in additional savings and expedited requests handling.

Do not hesitate and get A9S70640 - Acti9 iSW NA - switch-disconnector - 1P+N - 40A 250VAC at our secure and easy-to-use web store. Don't delay in making this intelligent plan that confirms the top quality and satisfies the defined expectations of contractors like yourselves.

In the event of any concerns or concerns about A9S70640 - Acti9 iSW NA - switch-disconnector - 1P+N - 40A 250VAC or any other Schneider Electric products, call us or refer to our Information center section below. We have gathered answers to recurring requests for information to back you further in making an well-informed decision about industrial and tertiary electrical components.

Remember, A9S70640 - Acti9 iSW NA - switch-disconnector - 1P+N - 40A 250VAC from Schneider Electric is sure, inexpensive, and better to alternative suppliers in the iSW category. Feel free to make it a part of your inventory immediately. Snap up at BaltElec, your preferred supplier for all your professional electrical equipment and automation needs.

In our Baltelec.eu online store you will locate Acti9 iSW NA - switch-disconnector - 1P+N - 40A 250VAC - A9S70640 worth 26.04 €, which will be a safe and cutting-edge solution for your expectations. This article is designed by the Schneider Electric brand using the modern technologies and satisfies the top standards of assurance and efficiency. We provide commodities from the iSW category that fuse longevity and practicality, which is an exceptional pick for various purposes. Notwithstanding of whether you need gear for small manufacturing or for experienced industrial operation, Acti9 iSW NA - switch-disconnector - 1P+N - 40A 250VAC will be a secure aid in your assignment.

Baltelec endeavors to make the securing process as effortless and fast as doable for our buyers. We offer detailed summaries and high-quality depictions of Acti9 iSW NA - switch-disconnector - 1P+N - 40A 250VAC so that you can make an aware choice. A team of pros is always ready to help you with any issues in the iSW section related to the picking and use of equipment. We are confident that Acti9 iSW NA - switch-disconnector - 1P+N - 40A 250VAC will meet your anticipations and become an important element of your machinery for just 26.04 €.
