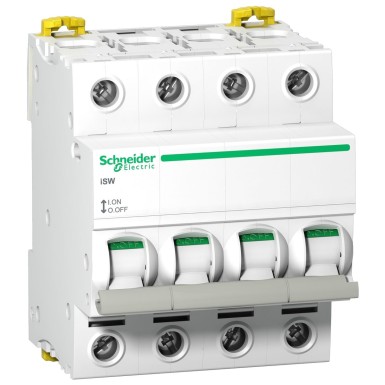

A9S65440 - Acti9, iSW switch-disconnector 4P 40A 415VAC - Schneider Electric

Expected in 2-4 weeks EAN: 3606480531071

EAN: 3606480531071

26,32 € excl. VAT

32,11 € incl. VAT

Text About:

Acti9, iSW switch-disconnector 4P 40A 415VAC - Schneider Electric

In cart

32,11 €

SPECIFICATIONS

Main

Range Acti9

sectioning ability Oui

job category AC-22A

name of the device iSW

type of product or equipment Interrupteur-sectionneur

Product Name Acti 9 iSW

[ui] rated insulation voltage 500 V CA 50/60 Hz

Complementary

9 mm pitches 8

[icm] rated short circuit making capacity 4,2 kA sectionneur seulement

[ie] rated operational current 40 A à 415 V CA 50/60 Hz

[ue] rated operational voltage 415 V CA 50/60 Hz

application Isolation
Contrôle

[icw] rated short-time withstand current 1260 A

Handle front plate colour 85 mm

tightening torque 3,5 N.m

[uimp] rated impulse withstand voltage 6 kV

compatibility of distributors, combs, busbars Haut ou bas : oui

fully apparent cut Oui

mode d'installation Fixe

electrical life 15000 cycle

connection mode Borne du type à cage (haut ou bas) - <= 1 x 50 mm² - rigide
Borne du type à cage (haut ou bas) - <= 1 x 35 mm² - souple
Borne du type à cage (haut ou bas) - <= 1 x 35 mm² - flexible avec embout

mechanical endurance 20000 cycle

width (w) 72 mm

Colour Blanc

voltage indication Indication ON/OFF

wire stripping length 9 mm

depth 73 mm

mounting bracket Rail DIN

order type Par maneton

Poles description 4P

Environment

degree of pollution 3

ip degree of protection IP20

standards CEI 60947-3
EN 60947-3

relative humidity 95 % à 55 °C

operating ambient air temperature -25…60 °C

storage room temperature -40…85 °C

tropicalization 2
