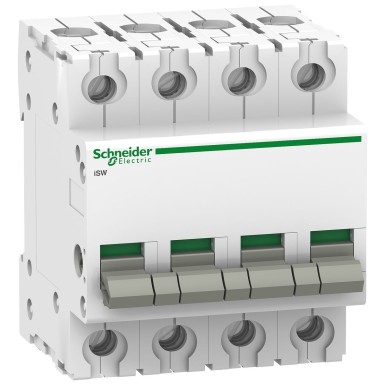

A9S60492 - Acti9, iSW switch-disconnector 4P 125A 415V - Schneider Electric

Expected in 2-4 weeks EAN: 3606480088902

EAN: 3606480088902

14,66 € excl. VAT

17,89 € incl. VAT

Text About:

Acti9, iSW switch-disconnector 4P 125A 415V - Schneider Electric

In cart

17,89 €

SPECIFICATIONS

Main

Range Acti 9

sectioning ability Oui se conformer à EN 60947-3
Oui se conformer à CEI 60947-3

job category AC-22A se conformer à EN 60947-3
AC-22A se conformer à CEI 60947-3
AC-22A

name of the device iSW

type of product or equipment Interrupteur-sectionneur

Product Name Acti 9 iSW

[ui] rated insulation voltage 500 V CA 50/60 Hz se conformer à CEI 60947-3
250 V CA 50/60 Hz se conformer à CEI EN 60669-1

Complementary

9 mm pitches 8

[ie] rated operational current 20 A à 250 V CA 50/60 Hz
125 A à 415 V CA 50/60 Hz

[ue] rated operational voltage 250 V CA 50/60 Hz
415 V CA 50/60 Hz

application Isolation
Contrôle

Handle front plate colour 77 mm

tightening torque 3,5 N.m

[uimp] rated impulse withstand voltage 4 kV
6 kV se conformer à EN 60947-3
6 kV se conformer à CEI 60947-3

compatibility of distributors, combs, busbars Standard

fully apparent cut Oui

mode d'installation Fixe

electrical life 30000 cycle
2500 cycle

connection mode Borne du type à cage - <= 50 mm² - rigide
Borne du type à cage - <= 35 mm² - souple
Borne du type à cage - <= 35 mm² - flexible avec embout

mechanical endurance 300000 cycle
50000 cycle

width (w) 72 mm

Colour Blanc

voltage indication Indication ON/OFF

wire stripping length 9 mm

depth 70 mm

mounting bracket Rail DIN

signaling circuit voltage CA: 230 V 50/60 Hz

order type Par maneton

Poles description 4P

Environment

degree of pollution 3 se conformer à CEI 60947-3
2

ip degree of protection IP4

operating ambient temperature -20…50 °C

standards CEI EN 60669-1
CEI 60947-3

relative humidity 95 % à 55 °C

storage room temperature -40…70 °C

tropicalization 2
