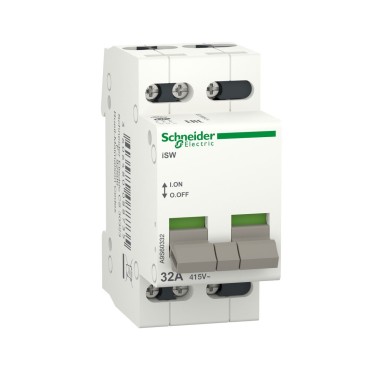

A9S60332 - Acti9, iSW control switch 3P 32A 415VAC - Schneider Electric

Pending restock EAN: 3606480088735

EAN: 3606480088735

19,45 € excl. VAT

24,12 € incl. VAT

Text About:

Acti9, iSW control switch 3P 32A 415VAC - Schneider Electric

In cart

24,12 €

SPECIFICATIONS

Main

Range Acti9

sectioning ability Oui

job category AC-22A

name of the device iSW

type of product or equipment Interrupteur-sectionneur

Product Name Acti 9 iSW

[ui] rated insulation voltage 500 V CA 50/60 Hz se conformer à EN/CEI 60669-2-4

Complementary

9 mm pitches 4

[ie] rated operational current 32 A à 415 V CA 50/60 Hz

[ue] rated operational voltage 415 V CA 50/60 Hz

application Contrôle

Handle front plate colour 77 mm

tightening torque 1,2 N.m

[uimp] rated impulse withstand voltage 4 kV

fully apparent cut Oui

mode d'installation Fixe

electrical life 30000 cycle

connection mode Borne du type à cage - 10 mm² - rigide
Borne du type à cage - 10 mm² - souple
Borne du type à cage - 10 mm² - flexible avec embout

mechanical endurance 300000 cycle

width (w) 36 mm

Colour Blanc

voltage indication Indication ON/OFF

wire stripping length 9 mm

depth 70 mm

mounting bracket Rail DIN

order type Par maneton

Poles description 3P

Environment

degree of pollution 2

ip degree of protection IP4

standards EN/CEI 60669-2-4

relative humidity 95 % à 55 °C

operating ambient air temperature -20…50 °C

storage room temperature -40…70 °C

tropicalization 2
