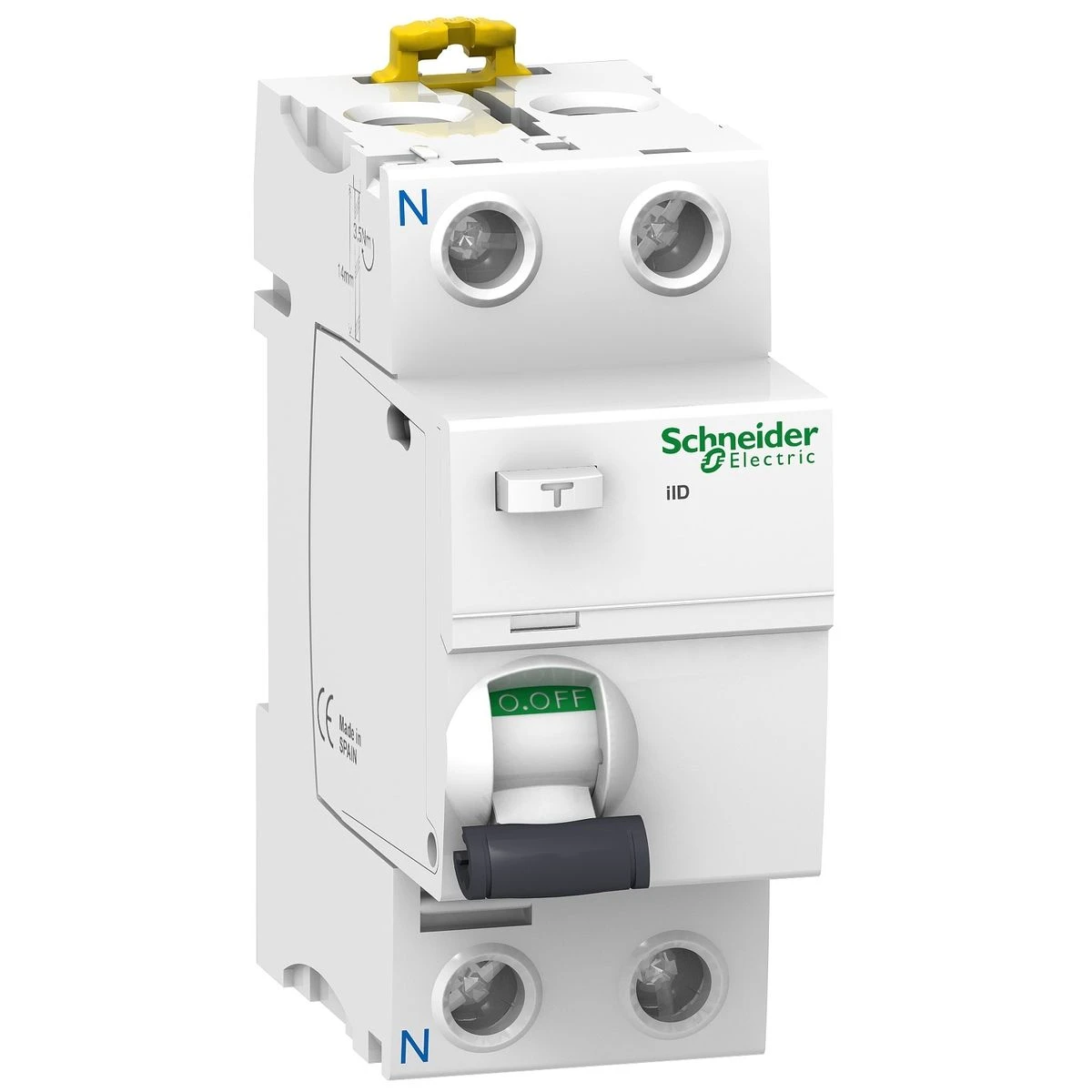

A9R84263 - Residual current circuit breaker (RCCB), Acti9 iID, 2P, 63A, AC type, 300mA - Schneider Electric

Pending restock EAN: 3606480091292
A9R84263 - Residual current circuit breaker (RCCB), Acti9 iID, 2P, 63A, AC type, 300mA - Schneider Electric - Residual current circuit breaker (RCCB), Acti9 iID, 2P, 63A, AC type, 300mA - Schneider Electric - 0
EAN: 3606480091292
A9R84263 - Residual current circuit breaker (RCCB), Acti9 iID, 2P, 63A, AC type, 300mA - Schneider Electric
Text About:
Residual current circuit breaker (RCCB), Acti9 iID, 2P, 63A, AC type, 300mA - Schneider Electric
SPECIFICATIONS
Main
Range Acti9
name of the device iID
type of product or equipment Interrupteur différentiel
differential sensitivity 300 mA
Product Name Acti 9 iID
[ui] rated insulation voltage 500 V CA 50/60 Hz
neutral pole position Gauche
Complementary
9 mm pitches 4
[ue] rated operational voltage 220...240 V CA 50/60 Hz
peak current 250 A
[ics] rated service breaking capacity Idm 1500 A
Im 1500 A
Handle front plate colour 91 mm
tightening torque 3,5 N.m haut ou bas
[uimp] rated impulse withstand voltage 6 kV
in rated operational current 63 A
product weight 0,21 kg
fully apparent cut Oui
mode d'installation Encliquetable
electrical life AC-1: 15000 cycle
connection mode Terminal simple haut ou bas1…35 mm² rigide
Terminal simple haut ou bas1…25 mm² souple
Terminal simple haut ou bas1…25 mm² flexible avec embout
mechanical endurance 20000 cycle
width (w) 36 mm
network frequency 50/60 Hz
Colour Blanc
delay Instantané
nominal conditional short-circuit current 10 kA
position of the switchgear in the installation Départ
wire stripping length 14 mm pour haut ou bas connexion
depth 73,5 mm
differential technology Indépendant de la tension
mounting bracket Rail DIN
Network type Type AC
optional locks Dispositif de cadenassage
order type Par maneton
Poles description 2P
Environment
degree of pollution 3
ip degree of protection IP20 conforming to CEI 60529
IP40 (boîtier modulaire) conforming to CEI 60529
electromagnetic compatibility Tenue aux ondes 8/20 µs, 250 A se conformer à EN/CEI 61008-1
standards EN/CEI 61008-1
operating temperature -5…60 °C
storage room temperature -40…85 °C
About this product

The A9R84263 - Residual current circuit breaker (RCCB), Acti9 iID, 2P, 63A, AC type, 300mA is conceived to accommodate the demands of specialized professionals, such as control panel builders, cable technicians, upkeep firms, and Industry suppliers. A9R84263 furnishes excellent quality and asset for technicians in the power systems industry. This Residual current circuit breaker (RCCB), Acti9 iID, 2P, 63A, AC type, 300mA and other iID from Schneider Electric are available at the most competitive price and delivery period through baltelec.eu, an independent wholesaler fulfilling the needs of practitioners in their supply needs.

Technicians who have acquired Schneider Electric iID have regularly admired the brand's trustworthiness. It has been indicated that the outstanding productivity of A9R84263 - Residual current circuit breaker (RCCB), Acti9 iID, 2P, 63A, AC type, 300mA extends to a assortment of implementations. Its elite properties make it fitting for assorted uses. Your developed solution will excel in quality, energy-efficiency and price.

Our company commits in fulfilling industrial and tertiary professionals’ needs. We recognize the individual specifications and expectations of our stakeholders in the industry. By cooperating with Baltelec team, you receive access to the premier fees and delivery schedule of top-tier products like A9R84263 - Residual current circuit breaker (RCCB), Acti9 iID, 2P, 63A, AC type, 300mA from Schneider Electric at a competitive price. Registered customers get more savings and dedicated support.

Start immediately and secure A9R84263 - Residual current circuit breaker (RCCB), Acti9 iID, 2P, 63A, AC type, 300mA at our trusted and straightforward online portal. Don't delay in making this savvy move that confirms the highest quality and covers the unique criteria of traders like your group.

If you face any matters or concerns about A9R84263 - Residual current circuit breaker (RCCB), Acti9 iID, 2P, 63A, AC type, 300mA or any other Schneider Electric products, connect with us or refer to our Help section section below. We have gathered answers to usual doubts to support you further in making an well-considered decision about industrial and tertiary electrical components.

Remember, A9R84263 - Residual current circuit breaker (RCCB), Acti9 iID, 2P, 63A, AC type, 300mA from Schneider Electric is credible, economical, and better to its rivals in the iID category. Feel free to make it a part of your installation immediately. Obtain at Baltelec e-shop, your esteemed seller for all your iID.

In our Baltelec.eu dot-com store you will locate Residual current circuit breaker (RCCB), Acti9 iID, 2P, 63A, AC type, 300mA - A9R84263 worth 0.00 €, which will be a dependable and current solution for your necessities. This commodity is developed by the Schneider Electric brand using the advanced technologies and adheres to the maximum standards of safety and competence. We extend goods from the iID category that integrate endurance and practicality, which is an excellent preference for various uses. Irrespective of whether you call for apparatus for small assembly or for proficient industrial implementation, Residual current circuit breaker (RCCB), Acti9 iID, 2P, 63A, AC type, 300mA will be a steadfast companion in your occupation.

Baltelec tries to make the purchasing process as accessible and fast as viable for our clients. We offer detailed explanations and high-quality pictures of Residual current circuit breaker (RCCB), Acti9 iID, 2P, 63A, AC type, 300mA so that you can make an educated choice. A team of authorities is always ready to help you with any wonder in the iID section pertaining to the picking and use of merchandise. We are positive that Residual current circuit breaker (RCCB), Acti9 iID, 2P, 63A, AC type, 300mA will meet your standards and become an key element of your inventory for just 0.00 €.
