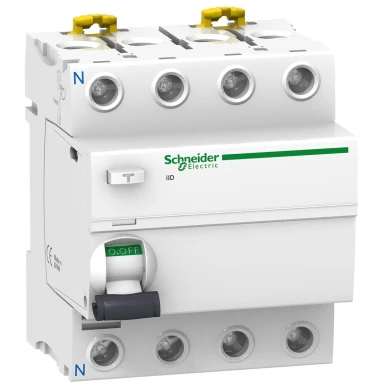

A9R35440 - Residual current circuit breaker (RCCB), Acti9 iID, 4P, 40A, A-SI type, 300mA, selective - Schneider Electric

Expected in 2-4 weeks EAN: 3606480089671
A9R35440 - Residual current circuit breaker (RCCB), Acti9 iID, 4P, 40A, A-SI type, 300mA, selective - Schneider Electric - Residual current circuit breaker (RCCB), Acti9 iID, 4P, 40A, A-SI type, 300mA, selective - Schneider Electric - 0
EAN: 3606480089671
A9R35440 - Residual current circuit breaker (RCCB), Acti9 iID, 4P, 40A, A-SI type, 300mA, selective - Schneider Electric
96,70 € excl. VAT
119,90 € incl. VAT
Text About:
Residual current circuit breaker (RCCB), Acti9 iID, 4P, 40A, A-SI type, 300mA, selective - Schneider Electric
119,90 €
SPECIFICATIONS
Main
Range Acti9
name of the device iID
type of product or equipment Interrupteur différentiel
differential sensitivity 300 mA
Product Name Acti 9 iID
[ui] rated insulation voltage 500 V CA 50/60 Hz
neutral pole position Gauche
Complementary
9 mm pitches 8
[ue] rated operational voltage 380...415 V CA 50/60 Hz
[ics] rated service breaking capacity Idm 1500 A
Im 1500 A
Handle front plate colour 91 mm
tightening torque 3,5 N.m haut ou bas
[uimp] rated impulse withstand voltage 6 kV
in rated operational current 40 A
product weight 0,37 kg
fully apparent cut Oui
mode d'installation Encliquetable
electrical life AC-1: 15000 cycle
connection mode Terminal simple haut ou bas1…35 mm² rigide
Terminal simple haut ou bas1…25 mm² souple
Terminal simple haut ou bas1…25 mm² flexible avec embout
mechanical endurance 20000 cycle
width (w) 72 mm
network frequency 50/60 Hz
Colour Blanc
delay Sélectif
nominal conditional short-circuit current 10 kA
position of the switchgear in the installation Départ
wire stripping length 14 mm pour haut ou bas connexion
depth 73,5 mm
differential technology Indépendant de la tension
mounting bracket Rail DIN
Network type Type A-SI (Super Immunisé)
optional locks Dispositif de cadenassage
order type Par maneton
Poles description 4P
Environment
degree of pollution 3
ip degree of protection IP20 conforming to CEI 60529
IP40 (boîtier modulaire) conforming to CEI 60529
product certificates EAC
electromagnetic compatibility Tenue aux ondes 8/20 µs, 3000 A se conformer à EN/CEI 61008-1
standards EN/CEI 61008-1
operating temperature -25…60 °C
storage room temperature -40…85 °C
About this product

The A9R35440 - Residual current circuit breaker (RCCB), Acti9 iID, 4P, 40A, A-SI type, 300mA, selective is created to address the needs of specialized professionals, such as control panel builders, electric engineers, management services, and equipment creators. A9R35440 provides superior integrity and worth for planners in the electrical and automation industry. This Residual current circuit breaker (RCCB), Acti9 iID, 4P, 40A, A-SI type, 300mA, selective and other iID from Schneider Electric can be obtained at the most competitive price and delivery schedule through BALTELEC.EU, a trustworthy retailer catering to technicians in their obtaining needs.

Users who have purchased Schneider Electric iID have persistently applauded the brand's sturdiness. It has been indicated that the extraordinary energy-efficiency of A9R35440 - Residual current circuit breaker (RCCB), Acti9 iID, 4P, 40A, A-SI type, 300mA, selective extends to a wide range of implementations. Its superior traits make it great solution to satisfy a wide array of needs. Your developed solution will excel in quality, energy-efficiency and price.

BaltElec team centers in fulfilling industrial and tertiary professionals’ needs. We grasp the specific specifications and standards of our consumers in the field. By joining forces with Baltelec team, you obtain access to the leading pricing and lead time of the top-of-the-line products like A9R35440 - Residual current circuit breaker (RCCB), Acti9 iID, 4P, 40A, A-SI type, 300mA, selective from Schneider Electric at an economical price. Account holders take pleasure in additional savings and dedicated support.

Don't wait and purchase A9R35440 - Residual current circuit breaker (RCCB), Acti9 iID, 4P, 40A, A-SI type, 300mA, selective at our trusted and straightforward webshop. Don't delay in making this astute investment that secures the highest quality and covers the specific necessities of contractors like your firm.

In the event of any uncertainties or concerns about A9R35440 - Residual current circuit breaker (RCCB), Acti9 iID, 4P, 40A, A-SI type, 300mA, selective or any other Schneider Electric products, reach out to us or refer to our FAQ section section below. We have collected answers to regular concerns to facilitate you further in making an wise decision about industrial and tertiary electrical components.

Remember, A9R35440 - Residual current circuit breaker (RCCB), Acti9 iID, 4P, 40A, A-SI type, 300mA, selective from Schneider Electric is credible, affordable, and first-rate to its rivals in the iID category. Make it a part of your electrical system at once. Buy at Baltelec webstore, your faithful dealer for all your iID.

In our Baltelec.eu virtual store you will detect Residual current circuit breaker (RCCB), Acti9 iID, 4P, 40A, A-SI type, 300mA, selective - A9R35440 worth 117.97 €, which will be a sure and fashionable solution for your expectations. This thing is created by the Schneider Electric brand using the latest technologies and aligns with the optimal standards of precaution and capability. We extend items from the iID category that merge lastingness and workability, which is an superior choice for various applications. Not minding of whether you require hardware for small production or for skilled industrial application, Residual current circuit breaker (RCCB), Acti9 iID, 4P, 40A, A-SI type, 300mA, selective will be a trustworthy partner in your assignment.

Baltelec endeavors to make the acquiring process as uncomplicated and fast as accomplishable for our clients. We offer detailed narratives and high-quality depictions of Residual current circuit breaker (RCCB), Acti9 iID, 4P, 40A, A-SI type, 300mA, selective so that you can make an advised choice. A team of specialists is always ready to help you with any uncertainties in the iID section referencing to the electing and use of wares. We are persuaded that Residual current circuit breaker (RCCB), Acti9 iID, 4P, 40A, A-SI type, 300mA, selective will meet your needs and become an important element of your hardware for just 117.97 €.

Common Questions about A9R35440 - Residual current circuit breaker (RCCB), Acti9 iID, 4P, 40A, A-SI type, 300mA, selective:
