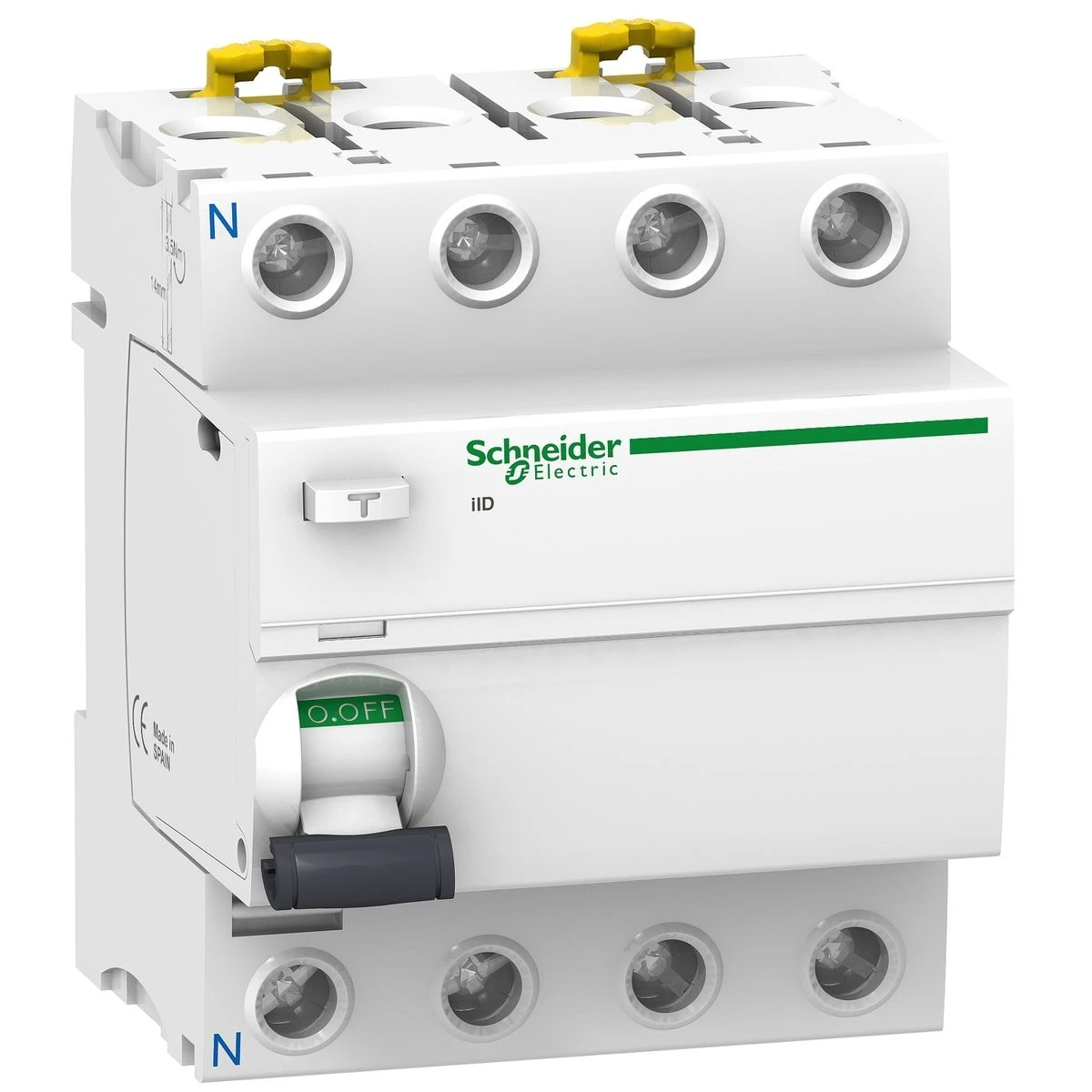

A9R31440 - Residual current circuit breaker (RCCB), Acti9 iID, 4P, 40A, A-SI type, 30mA - Schneider Electric

Expected in 2-4 weeks EAN: 3606480090578
A9R31440 - Residual current circuit breaker (RCCB), Acti9 iID, 4P, 40A, A-SI type, 30mA - Schneider Electric - Residual current circuit breaker (RCCB), Acti9 iID, 4P, 40A, A-SI type, 30mA - Schneider Electric - 0
EAN: 3606480090578
A9R31440 - Residual current circuit breaker (RCCB), Acti9 iID, 4P, 40A, A-SI type, 30mA - Schneider Electric
14,66 € excl. VAT
18,18 € incl. VAT
Text About:
Residual current circuit breaker (RCCB), Acti9 iID, 4P, 40A, A-SI type, 30mA - Schneider Electric
18,18 €
SPECIFICATIONS
Main
Range Acti9
name of the device iID
type of product or equipment Interrupteur différentiel
differential sensitivity 30 mA
Product Name Acti 9 iID
[ui] rated insulation voltage 500 V CA 50/60 Hz
neutral pole position Gauche
Complementary
9 mm pitches 8
[ue] rated operational voltage 380...415 V CA 50/60 Hz
[ics] rated service breaking capacity Idm 1500 A
Im 1500 A
Handle front plate colour 91 mm
tightening torque 3,5 N.m haut ou bas
[uimp] rated impulse withstand voltage 6 kV
in rated operational current 40 A
product weight 0,37 kg
fully apparent cut Oui
mode d'installation Encliquetable
electrical life AC-1: 15000 cycle
connection mode Terminal simple haut ou bas1…35 mm² rigide
Terminal simple haut ou bas1…25 mm² souple
Terminal simple haut ou bas1…25 mm² flexible avec embout
mechanical endurance 20000 cycle
width (w) 72 mm
network frequency 50/60 Hz
Colour Blanc
delay Instantané
nominal conditional short-circuit current 10 kA
position of the switchgear in the installation Départ
wire stripping length 14 mm pour haut ou bas connexion
depth 73,5 mm
differential technology Indépendant de la tension
mounting bracket Rail DIN
Network type Type A-SI (Super Immunisé)
optional locks Dispositif de cadenassage
order type Par maneton
Poles description 4P
Environment
degree of pollution 3
ip degree of protection IP20 conforming to CEI 60529
IP40 (boîtier modulaire) conforming to CEI 60529
electromagnetic compatibility Tenue aux ondes 8/20 µs, 3000 A se conformer à EN/CEI 61008-1
standards EN/CEI 61008-1
operating temperature -25…60 °C
storage room temperature -40…85 °C
About this product

The A9R31440 - Residual current circuit breaker (RCCB), Acti9 iID, 4P, 40A, A-SI type, 30mA is formulated to respond to the requirements of trade buyers, such as system integrators, electricians, upkeep firms, and original manufacturers. A9R31440 presents remarkable efficiency and gain for designers in the electrotechnical industry. This Residual current circuit breaker (RCCB), Acti9 iID, 4P, 40A, A-SI type, 30mA and other iID from Schneider Electric are on offer at the most favorable cost and supply period through BALTELEC, a reputable vendor catering to engineers in their gathering needs.

Engineers who have acquired Schneider Electric iID have consistently extolled the creator's solidity. It has been highlighted that the exceptional functionality of A9R31440 - Residual current circuit breaker (RCCB), Acti9 iID, 4P, 40A, A-SI type, 30mA extends to a multitude of utilizations. Its exceptional characteristics make it proper pick to satisfy a wide array of needs, ensuring your industrial, tertiary and automation projects success.

BaltElec devotes in addressing industrial and tertiary professionals’ needs. We get the unique needs and requirements of our patrons in the industry. By partnering with Baltelec team, your company get access to the finest price lists and inventory of first-rate products like A9R31440 - Residual current circuit breaker (RCCB), Acti9 iID, 4P, 40A, A-SI type, 30mA from Schneider Electric at an attractive price. Registered users enjoy special savings and expedited requests handling.

Make a move and purchase A9R31440 - Residual current circuit breaker (RCCB), Acti9 iID, 4P, 40A, A-SI type, 30mA at our protected and intuitive online store. Don't delay in making this sensible investment that affirms the finest quality and adheres to the targeted specifications of purchasers like your team.

In case you have any concerns or concerns about A9R31440 - Residual current circuit breaker (RCCB), Acti9 iID, 4P, 40A, A-SI type, 30mA or any other Schneider Electric products, communicate with us or refer to our Help section section below. We have curated answers to recurring queries to facilitate you further in making an considered decision about industrial and tertiary electrical components.

Remember, A9R31440 - Residual current circuit breaker (RCCB), Acti9 iID, 4P, 40A, A-SI type, 30mA from Schneider Electric is sure, economical, and premier to other brands in the iID category. Make it a part of your apparatus promptly. Get at Baltelec webstore, your esteemed seller for all your professional electrical equipment and automation needs.

In our Baltelec.eu cyber store you will spot Residual current circuit breaker (RCCB), Acti9 iID, 4P, 40A, A-SI type, 30mA - A9R31440 worth 17.89 €, which will be a trustworthy and fashionable solution for your wants. This thing is designed by the Schneider Electric brand using the newest technologies and complies with the premier standards of reliability and competence. We supply commodities from the iID category that associate lastingness and functionality, which is an outstanding pick for various roles. Without consideration of whether you desire devices for small manufacturing or for skilled industrial operation, Residual current circuit breaker (RCCB), Acti9 iID, 4P, 40A, A-SI type, 30mA will be a constant partner in your assignment.

Baltelec efforts to make the obtaining process as convenient and fast as attainable for our customers. We offer detailed explanations and high-quality shots of Residual current circuit breaker (RCCB), Acti9 iID, 4P, 40A, A-SI type, 30mA so that you can make an briefed choice. A team of maestros is always ready to help you with any questions in the iID section linked to the preferment and use of supplies. We are guaranteed that Residual current circuit breaker (RCCB), Acti9 iID, 4P, 40A, A-SI type, 30mA will meet your requirements and become an necessary element of your apparatus for just 17.89 €.
