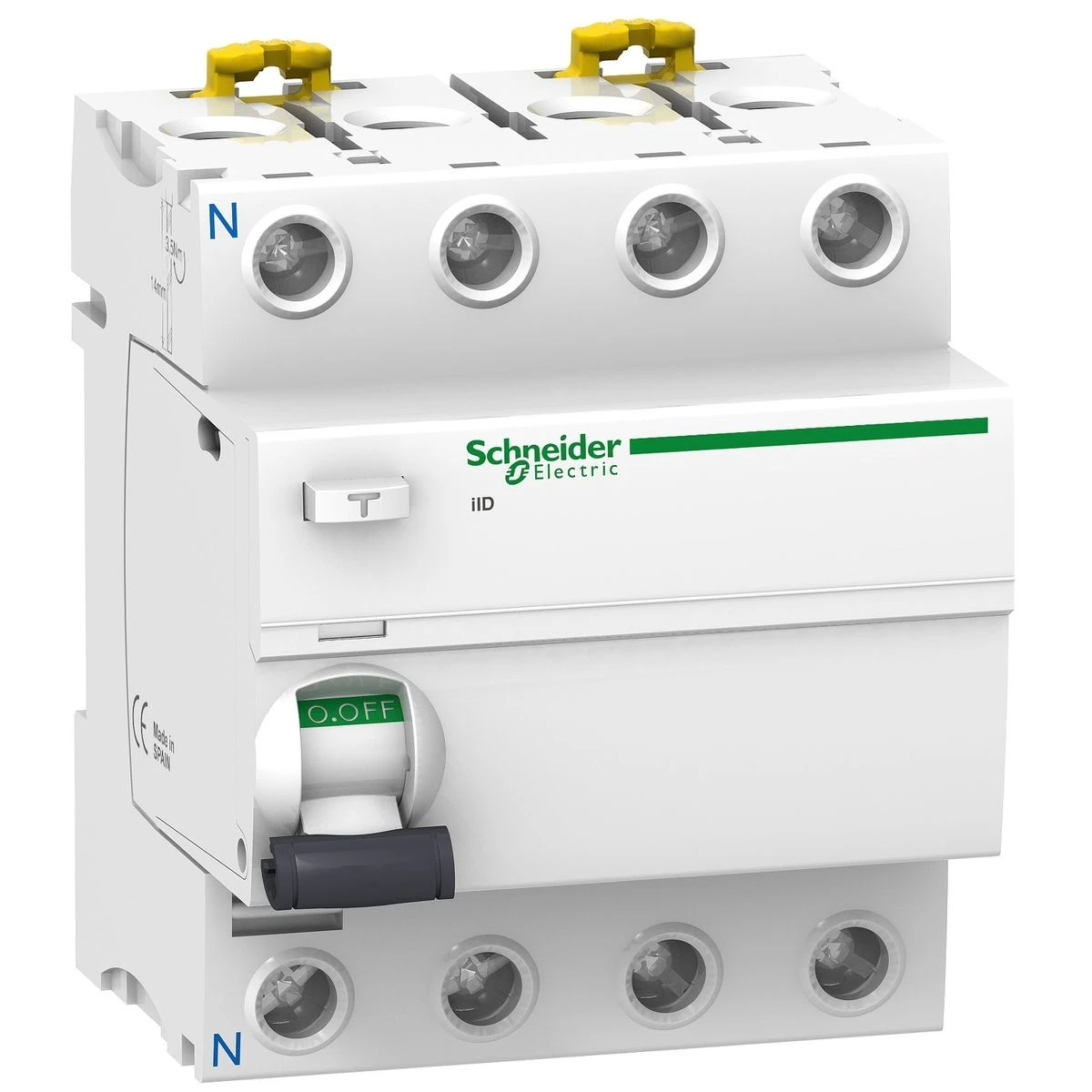

A9R15480 - Residual current circuit breaker (RCCB), Acti9 iID, 4P, 80A, AC type, 300mA, selective - Schneider Electric

Pending restock
A9R15480 - Residual current circuit breaker (RCCB), Acti9 iID, 4P, 80A, AC type, 300mA, selective - Schneider Electric - Residual current circuit breaker (RCCB), Acti9 iID, 4P, 80A, AC type, 300mA, selective - Schneider Electric - 0
A9R15480 - Residual current circuit breaker (RCCB), Acti9 iID, 4P, 80A, AC type, 300mA, selective - Schneider Electric
112,46 € excl. VAT
139,44 € incl. VAT
Text About:
Residual current circuit breaker (RCCB), Acti9 iID, 4P, 80A, AC type, 300mA, selective - Schneider Electric
139,44 €
SPECIFICATIONS
Main
Device short name iID
Device location in system Outgoer
Range Acti9
Earth-leakage protection class Type AC
Neutral position Left
Earth-leakage protection time delay Selective
Earth-leakage sensitivity 300 mA
Product Name Acti9 iID
[ui] rated insulation voltage 500 V AC 50/60 Hz
Complementary
9 mm pitches 8
[in] rated current 80 A
[ue] rated operational voltage 380...415 V AC 50/60 Hz
[ics] rated service breaking capacity Idm 1500 A
Im 1500 A
Control type Toggle
Handle front plate colour 91 mm
Product or component type Residual current circuit breaker (RCCB)
tightening torque 3.5 N.m top or bottom
[uimp] rated impulse withstand voltage 6 kV
Connections - terminals Single terminal top or bottom 1…35 mm² rigid
Single terminal top or bottom 1…25 mm² flexible
Single terminal top or bottom 1…25 mm² flexible with ferrule
Locking options description Padlocking device
Contact position indication Yes
width (w) 72 mm
network frequency 50/60 Hz
Colour White
Mounting mode Clip-on
Net weight 0.37 kg
wire stripping length 14 mm for top or bottom connection
Mounting support DIN rail
depth 73.5 mm
mechanical durability 20000 cycles
electrical durability AC-1: 10000 cycles
Network type AC
Pollution degree 3
residual current tripping technology Voltage independent
Rated conditional short-circuit current 10 kA
Poles description 4P
Environment
Ambient air temp for storage/transportation -40…85 °C
ip degree of protection IP20 conforming to IEC 60529
IP40 (modular enclosure) conforming to IEC 60529
ambient air temperature for operation -5…60 °C
electromagnetic compatibility 8/20 µs impulse withstand, 3000 A conforming to EN/IEC 61008-1
standards EN/IEC 61008-1
About this product

The A9R15480 - Residual current circuit breaker (RCCB), Acti9 iID, 4P, 80A, AC type, 300mA, selective is fashioned to cover the obligations of sector experts, such as circuit designers, electrical installers, upkeep firms, and equipment creators. A9R15480 yields excellent performance and merit for planners in the automation and control industry. This Residual current circuit breaker (RCCB), Acti9 iID, 4P, 80A, AC type, 300mA, selective and other iID from Schneider Electric can be ordered at the most advantageous pricing and shipping time through BaltElec online store, a credible provider catering to tradesmen in their buying needs.

Clients who have secured Schneider Electric iID have persistently commended the manufacturer’s resilience. It has been pointed out that the remarkable capability of A9R15480 - Residual current circuit breaker (RCCB), Acti9 iID, 4P, 80A, AC type, 300mA, selective extends to a diverse range of purposes. Its supreme specifications make it well-suited solution for different applications, ensuring your industrial, tertiary and automation projects success.

Our professionals dedicates in catering industrial and tertiary professionals’ needs. We know the special demands and requirements of our partners in the market. By cooperating with our specialists, your team obtain access to the superior charges and availability of top-tier products like A9R15480 - Residual current circuit breaker (RCCB), Acti9 iID, 4P, 80A, AC type, 300mA, selective from Schneider Electric at the lowest price. Professional buyers with Baltelec account enjoy more savings and first-class attention.

Act now and order A9R15480 - Residual current circuit breaker (RCCB), Acti9 iID, 4P, 80A, AC type, 300mA, selective at our safe and simple online store. Don't delay in making this savvy selection that confirms the paramount quality and matches the distinct requirements of contractors like your organization.

When you have any issues or concerns about A9R15480 - Residual current circuit breaker (RCCB), Acti9 iID, 4P, 80A, AC type, 300mA, selective or any other Schneider Electric products, message us or refer to our Knowledge base section below. We have consolidated answers to habitual queries to advise you further in making an well-informed decision about industrial and tertiary electrical components.

Remember, A9R15480 - Residual current circuit breaker (RCCB), Acti9 iID, 4P, 80A, AC type, 300mA, selective from Schneider Electric is safe, wallet-friendly, and superior to other manufacturers in the iID category. Make it a part of your solution at once. Buy at Baltelec e-shop, your reliable source for all your professional electrical equipment and automation needs.

In our Baltelec.eu electronic store you will discover Residual current circuit breaker (RCCB), Acti9 iID, 4P, 80A, AC type, 300mA, selective - A9R15480 worth 137.20 €, which will be a dependable and innovative solution for your needs. This commodity is constructed by the Schneider Electric brand using the modern technologies and satisfies the leading standards of well-being and productivity. We deliver commodities from the iID category that blend resilience and operability, which is an excellent preference for various purposes. Despite of whether you demand gear for small fabrication or for qualified industrial exploitation, Residual current circuit breaker (RCCB), Acti9 iID, 4P, 80A, AC type, 300mA, selective will be a steadfast partner in your task.

Baltelec attempts to make the shopping process as uncomplicated and fast as achievable for our buyers. We offer detailed accounts and high-quality portrayals of Residual current circuit breaker (RCCB), Acti9 iID, 4P, 80A, AC type, 300mA, selective so that you can make an advised choice. A team of connoisseurs is always ready to help you with any uncertainties in the iID section affiliated to the nomination and use of merchandise. We are positive that Residual current circuit breaker (RCCB), Acti9 iID, 4P, 80A, AC type, 300mA, selective will meet your hopes and become an imperative element of your hardware for just 137.20 €.
