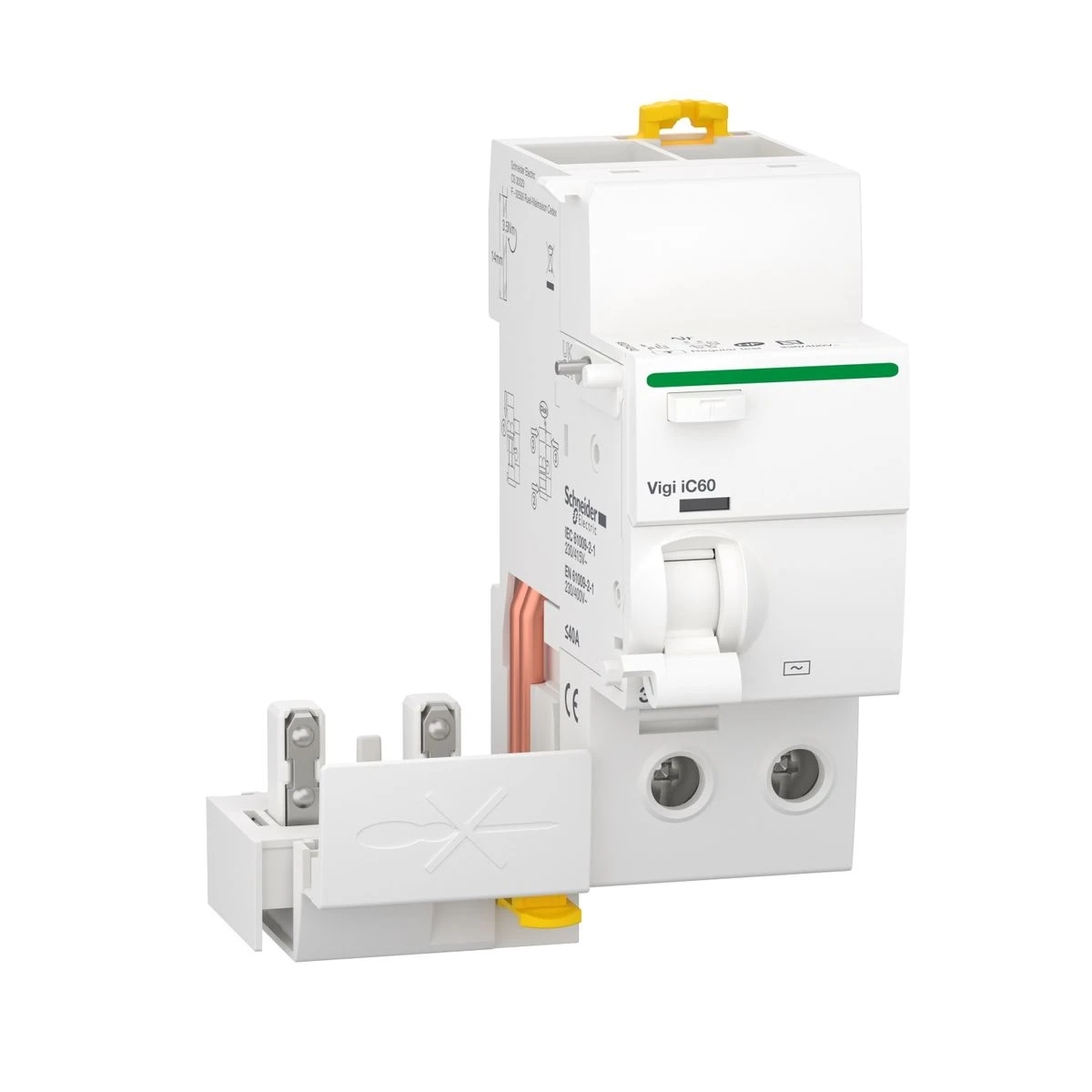

A9Q14240 - Acti9, Vigi iC60, differential block 2P 40A 300mA type AC 230-240/400-415V - Schneider Electric

Expected in 2-4 weeks EAN: 3606480393440
A9Q14240 - Acti9, Vigi iC60, differential block 2P 40A 300mA type AC 230-240/400-415V - Schneider Electric - Acti9, Vigi iC60, differential block 2P 40A 300mA type AC 230-240/400-415V - Schneider Electric - 0
EAN: 3606480393440
A9Q14240 - Acti9, Vigi iC60, differential block 2P 40A 300mA type AC 230-240/400-415V - Schneider Electric
14,66 € excl. VAT
18,18 € incl. VAT
Text About:
Acti9, Vigi iC60, differential block 2P 40A 300mA type AC 230-240/400-415V - Schneider Electric
18,18 €
SPECIFICATIONS
Main
Range Acti9
name of the device Vigi iC60
type of product or equipment Blocs différentiels Vigi
differential sensitivity 300 mA
[ui] rated insulation voltage 500 V CA 50/60 Hz se conformer à CEI 60947-2
earth leakage protection type Type AC
Complementary
9 mm pitches 4
associated accessories Terminal simple
[ue] rated operational voltage 230/400 V CA 50/60 Hz se conformer à EN 61009-1
230/415 V CA 50/60 Hz se conformer à CEI 61009-1
range compatibility Acti 9 (Acti9 iC60)
Acti 9 (Acti 9 Reflex iC60)
electrical connection on circuit breaker Connecteur
Handle front plate colour 91 mm
tightening torque 3,5 N.m bas
[uimp] rated impulse withstand voltage 6 kV se conformer à CEI 60947-2
compatibility of distributors, combs, busbars Bas : oui
in rated operational current 40 A
product weight 0,165 kg
mode d'installation Encliquetable
connection mode Borne du type à cage dessous pour 1 câble(s) 1…35 mm² rigide sans embout
Borne du type à cage dessous pour 1 câble(s) 1…25 mm² souple sans embout
Borne du type à cage dessous pour 1 câble(s) 1…25 mm² souple avec embout
width (w) 36 mm
network frequency 50/60 Hz
delay Instantané
voltage indication Signalisation de déclenchement
position of the switchgear in the installation Départ
wire stripping length 14 mm pour bas connexion
depth 73,5 mm
differential technology Indépendant de la tension
mounting bracket Rail DIN
Network type CA
Poles description 2P
Environment
degree of pollution 3 se conformer à CEI 60947-2
ip degree of protection IP20 conforming to CEI 60529
IP40 (boîtier modulaire) conforming to CEI 60529
electromagnetic compatibility Tenue aux ondes 8/20 µs, 250 A se conformer à CEI 61009-1
operating ambient temperature -5…60 °C
standards EN 61009-1
CEI 61009-1
storage room temperature -40…85 °C
