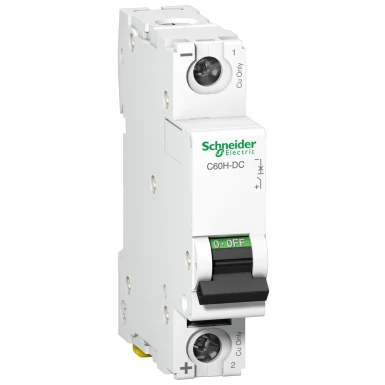

A9N61512 - Miniature circuit breaker (MCB), Acti9 C60H-DC, 1P, 20A, C curve, 6kA (IEC/EN 60947-2) - Schneider Electric

In stock EAN: 3606480424137
A9N61512 - Miniature circuit breaker (MCB), Acti9 C60H-DC, 1P, 20A, C curve, 6kA (IEC/EN 60947-2) - Schneider Electric - Miniature circuit breaker (MCB), Acti9 C60H-DC, 1P, 20A, C curve, 6kA (IEC/EN 60947-2) - Schneider Electric - 0
EAN: 3606480424137
A9N61512 - Miniature circuit breaker (MCB), Acti9 C60H-DC, 1P, 20A, C curve, 6kA (IEC/EN 60947-2) - Schneider Electric
17,84 € excl. VAT
22,12 € incl. VAT
Text About:
Miniature circuit breaker (MCB), Acti9 C60H-DC, 1P, 20A, C curve, 6kA (IEC/EN 60947-2) - Schneider Electric
22,12 €
SPECIFICATIONS
Additional Information
curve C
Main
Range Acti9
sectioning ability Oui se conformer à CEI 60947-2
Oui se conformer à EN 60947-2
job category Catégorie A se conformer à EN 60947-2
Catégorie A se conformer à CEI 60947-2
name of the device C60H-DC
type of product or equipment Disjoncteur miniature
Product Name Acti9 C60H-DC
[ui] rated insulation voltage 500 V CC se conformer à CEI 60947-2
500 V CC se conformer à EN 60947-2
number of poles protected 1
type of trigger Thermique-magnétique
Complementary
9 mm pitches 2
[ue] rated operational voltage 250 V CC
application Distribution
[ics] rated service breaking capacity 15 kA 75 % se conformer à EN 60947-2 - 110 V CC
15 kA 75 % se conformer à CEI 60947-2 - 110 V CC
4,5 kA 75 % se conformer à EN 60947-2 - 250 V CC
4,5 kA 75 % se conformer à CEI 60947-2 - 250 V CC
7,5 kA 75 % se conformer à EN 60947-2 - 220 V CC
7,5 kA 75 % se conformer à CEI 60947-2 - 220 V CC
tightening torque 2,5 N.m haut ou bas circuit de puissance :
[uimp] rated impulse withstand voltage 6 kV se conformer à EN 60947-2
6 kV se conformer à CEI 60947-2
compatibility of distributors, combs, busbars Haut ou bas : standard
in rated operational current 20 A à 25 °C
product weight 0,128 kg
fully apparent cut Oui
mode d'installation Fixe
electrical life 3000 cycle L/R = 2 ms
mechanical endurance 20000 cycle
network frequency 50/60 Hz
Colour Blanc
voltage indication Indication ON/OFF
mounting bracket Rail DIN symétrique 35 mm
Network type CC
optional locks En position O
differential protection Sans
lockdown forecast Cadenassable
order type Par maneton
Poles description 1P
Environment
degree of pollution 3 se conformer à EN 60947-2
3 se conformer à CEI 60947-2
operating altitude 2000 m
overvoltage category IV
standards EN 60947-2
CEI 60947-2
operating temperature -25…70 °C
storage room temperature -40…85 °C
tropicalization 2 se conformer à CEI 60068-2
About this product

The A9N61512 - Miniature circuit breaker (MCB), Acti9 C60H-DC, 1P, 20A, C curve, 6kA (IEC/EN 60947-2) is conceived to meet the expectations of trade professionals, such as electrical installers, electrical fitters, service organizations, and Industry suppliers. A9N61512 affords superior robustness and asset for contractors in the energy management industry. This Miniature circuit breaker (MCB), Acti9 C60H-DC, 1P, 20A, C curve, 6kA (IEC/EN 60947-2) and other C60H-DC from Schneider Electric are in stock at the optimal price and distribution time through BALTELEC, a well-regarded purveyor supplying engineers in their gathering needs.

Professionals who have procured Schneider Electric C60H-DC have continuously lauded the maker's reliability. It has been outlined that the notable capability of A9N61512 - Miniature circuit breaker (MCB), Acti9 C60H-DC, 1P, 20A, C curve, 6kA (IEC/EN 60947-2) extends to a broad spectrum of functions. Its supreme properties make it well-suited solution to cater to varied requirements. Your developed solution will excel in quality, energy-efficiency and price.

Our professionals focuses in accommodating industrial and tertiary professionals’ needs. We know the special needs and preferences of our patrons in the domain. By aligning with our company, you access access to the premier charges and availability of premium products like A9N61512 - Miniature circuit breaker (MCB), Acti9 C60H-DC, 1P, 20A, C curve, 6kA (IEC/EN 60947-2) from Schneider Electric at a value-for-money price. Registered users receive exclusive discounts and premium support.

Begin today and secure A9N61512 - Miniature circuit breaker (MCB), Acti9 C60H-DC, 1P, 20A, C curve, 6kA (IEC/EN 60947-2) at our protected and user-friendly e-commerce site. Don't delay in making this astute move that certifies the paramount quality and adheres to the targeted needs of traders like your business.

If you encounter any issues or concerns about A9N61512 - Miniature circuit breaker (MCB), Acti9 C60H-DC, 1P, 20A, C curve, 6kA (IEC/EN 60947-2) or any other Schneider Electric products, connect with us or refer to our FAQ section section below. We have consolidated answers to routine inquiries to facilitate you further in making an knowledgeable decision about industrial and tertiary electrical components.

Remember, A9N61512 - Miniature circuit breaker (MCB), Acti9 C60H-DC, 1P, 20A, C curve, 6kA (IEC/EN 60947-2) from Schneider Electric is sure, affordable, and better to other manufacturers in the C60H-DC category. Feel free to make it a part of your electrical system right now. Purchase at Baltelec webstore, your steady distributor for all your C60H-DC.

In our Baltelec.eu virtual store you will discover Miniature circuit breaker (MCB), Acti9 C60H-DC, 1P, 20A, C curve, 6kA (IEC/EN 60947-2) - A9N61512 worth 21.76 €, which will be a secure and fashionable solution for your wishes. This commodity is constructed by the Schneider Electric brand using the latest technologies and meets the maximum standards of reliability and workmanship. We furnish commodities from the C60H-DC category that blend longevity and operability, which is an superb decision for various tasks. In spite of whether you call for machinery for small construction or for proficient industrial employment, Miniature circuit breaker (MCB), Acti9 C60H-DC, 1P, 20A, C curve, 6kA (IEC/EN 60947-2) will be a secure aide in your undertaking.

Baltelec aims to make the obtaining process as easy and fast as feasible for our users. We offer detailed portrayals and high-quality snapshots of Miniature circuit breaker (MCB), Acti9 C60H-DC, 1P, 20A, C curve, 6kA (IEC/EN 60947-2) so that you can make an conscious choice. A team of adepts is always ready to help you with any enquiries in the C60H-DC section connected to the nomination and use of articles. We are guaranteed that Miniature circuit breaker (MCB), Acti9 C60H-DC, 1P, 20A, C curve, 6kA (IEC/EN 60947-2) will meet your demands and become an vital element of your device for just 21.76 €.

Frequently Asked Questions about Schneider Electric A9N61512:
