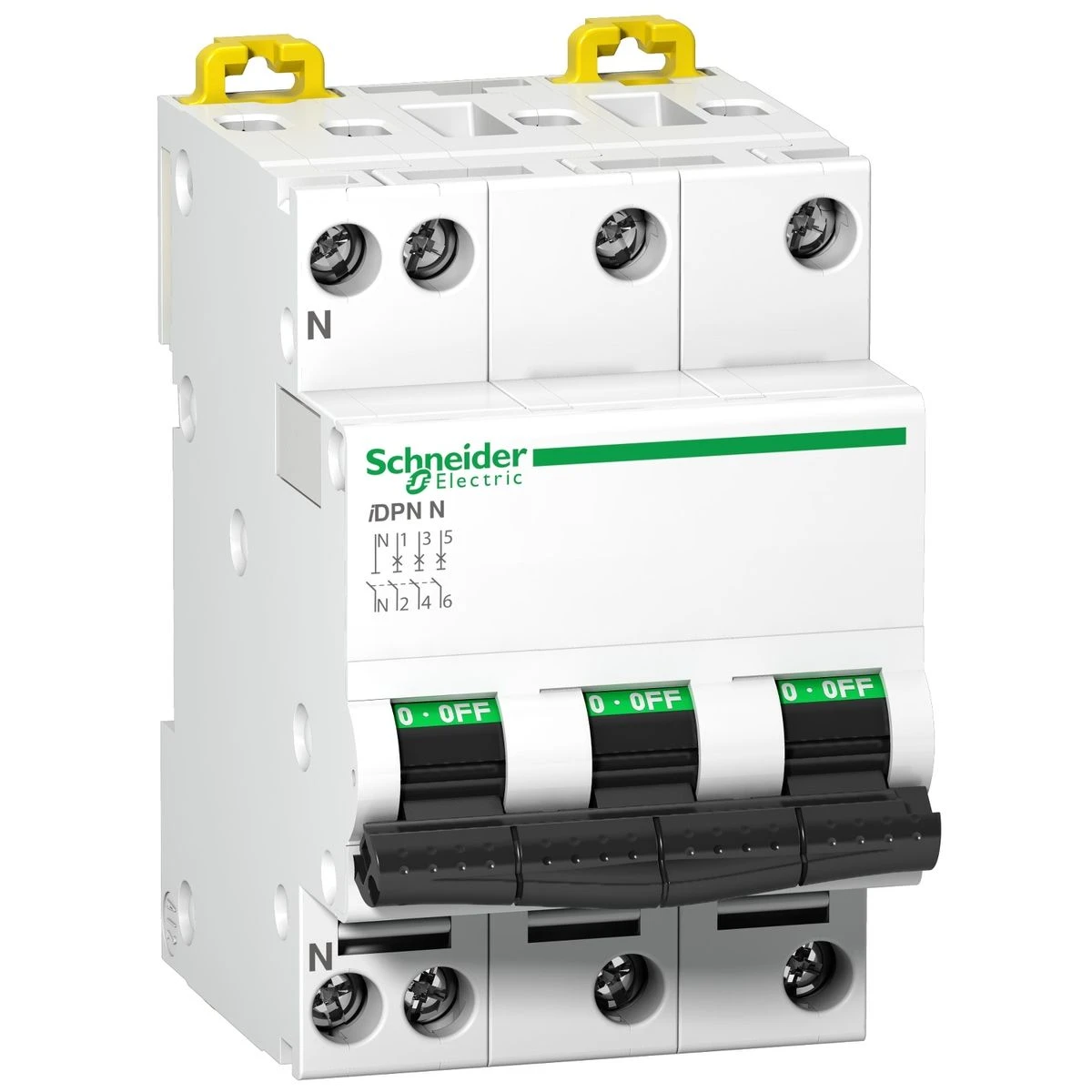

A9N21600 - IDPN CIRCUIT BREAKER 3P-N 32A C 6000A KA 400 - Schneider Electric
Expected in 2-4 weeks
EAN: 3606480382710
SPECIFICATIONS
Additional Information
curve
C
Main
product range
Clario
Range
Clario
sectioning ability
Oui
name of the device
iDPN N
type of product or equipment
Disjoncteur miniature
Product Name
IDPN
[ui] rated insulation voltage
400 V CA 50/60 Hz se conformer à CEI 60947-2
number of poles protected
3
neutral pole position
Gauche
type of trigger
Thermique-magnétique
Complementary
9 mm pitches
6
[ue] rated operational voltage
230 V CA 50/60 Hz entre phase et neutre
400 V CA 50/60 Hz entre phases
400 V CA 50/60 Hz entre phases
application
Distribution
[ics] rated service breaking capacity
6000 A 100 % Icn à 400 V CA 50/60 Hz se conformer à EN/CEI 60898-1
Handle front plate colour
81 mm
tightening torque
2 N.m
[uimp] rated impulse withstand voltage
4 kV se conformer à CEI 60947-2
in rated operational current
32 A
limiting class
3 se conformer à EN/CEI 60898-1
product weight
322 g
fully apparent cut
Oui
mode d'installation
Encliquetable
electrical life
10000 cycle
connection mode
Borne du type à cage en aval0,33…10 mm² souple
Borne du type à cage en aval0,75…16 mm² rigide
Borne du type à cage en amont0,33…10 mm² souple
Borne du type à cage en amont0,75…16 mm² rigide
Borne du type à cage en aval0,75…16 mm² rigide
Borne du type à cage en amont0,33…10 mm² souple
Borne du type à cage en amont0,75…16 mm² rigide
mechanical endurance
20000 cycle
width (w)
54 mm
network frequency
50/60 Hz
Colour
Blanc
voltage indication
Indication ON/OFF
wire stripping length
13 mm
depth
78 mm
mounting bracket
Rail DIN
magnetic trip limit
5,,,10 x In
Network type
CA
optional locks
Dispositif de cadenassage
differential protection
Bloc séparé
order type
Par maneton
Poles description
3P + N
Environment
degree of pollution
3 se conformer à CEI 60947-1
ip degree of protection
IP20 conforming to CEI 60529
operating altitude
2000 m
standards
EN/CEI 60898-1
relative humidity
95 % à 55 °C
operating temperature
-25…70 °C
storage room temperature
-40…70 °C
tropicalization
2 se conformer à CEI 60068-1
