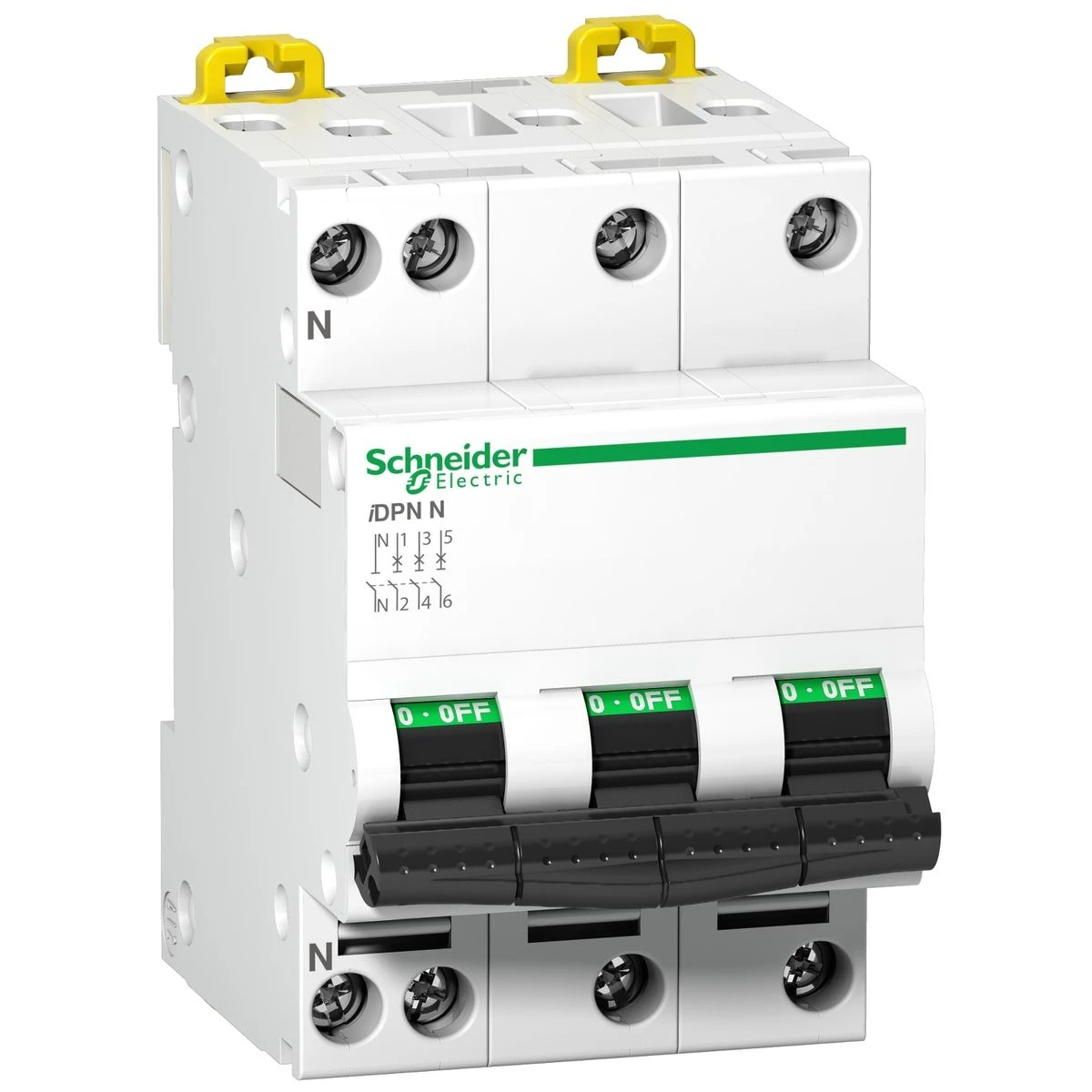

A9N21599 - IDPN circuit breaker iDPN N 3P + N 25A C curve - Schneider Electric

Upon request only
A9N21599 - IDPN circuit breaker iDPN N 3P + N 25A C curve - Schneider Electric - IDPN circuit breaker iDPN N 3P + N 25A C curve - Schneider Electric - 0
A9N21599 - IDPN circuit breaker iDPN N 3P + N 25A C curve - Schneider Electric
Text About:
IDPN circuit breaker iDPN N 3P + N 25A C curve - Schneider Electric
SPECIFICATIONS
Additional Information
curve C
Main
Device short name iDPN N
Range Clario
Neutral position Left
Number of protected poles 3
Product Name IDPN
Trip unit technology Thermal-magnetic
[ui] rated insulation voltage 400 V AC 50/60 Hz conforming to IEC 60947-2
Complementary
9 mm pitches 6
[in] rated current 25 A
[ue] rated operational voltage 230 V AC 50/60 Hz between phase and neutral
400 V AC 50/60 Hz between phases
[ics] rated service breaking capacity 6000 A 100 % x Icn at 400 V AC 50/60 Hz conforming to EN/IEC 60898-1
Control type Toggle
Handle front plate colour 81 mm
Product or component type Miniature circuit-breaker
tightening torque 2 N.m
[uimp] rated impulse withstand voltage 4 kV conforming to IEC 60947-2
Connections - terminals Tunnel type terminals downstream 0.33…10 mm² flexible
Tunnel type terminals downstream 0.75…16 mm² rigid
Tunnel type terminals upstream 0.33…10 mm² flexible
Tunnel type terminals upstream 0.75…16 mm² rigid
Locking options description Padlocking device
Contact position indication Yes
Device application Distribution
width (w) 54 mm
network frequency 50/60 Hz
Colour White
Local signalling ON/OFF indication
Mounting mode Clip-on
Net weight 322 g
wire stripping length 13 mm
Earth-leakage protection Separate block
Mounting support DIN rail
depth 78 mm
mechanical durability 20000 cycles
electrical durability 10000 cycles
magnetic trip limit 5...10 x In
Network type AC
Pollution degree 3 conforming to IEC 60947-1
Limitation class 3 conforming to EN/IEC 60898-1
Suitability for isolation Yes
Poles description 3P + N
Environment
Ambient air temp for storage/transportation -40…70 °C
ip degree of protection IP20 conforming to IEC 60529
operating altitude 2000 m
Range of product Clario
ambient air temperature for operation -25…70 °C
standards EN/IEC 60898-1
Tropicalisation 2 conforming to IEC 60068-1
relative humidity 95 % at 55 °C
About this product

The A9N21599 - IDPN circuit breaker iDPN N 3P + N 25A C curve is developed to accommodate the needs of sector experts, such as panel manufacturers, cable technicians, maintenance service providers, and Industry suppliers. A9N21599 dispenses exceptional integrity and profit for professionals in the power systems industry. This IDPN circuit breaker iDPN N 3P + N 25A C curve and other iC60 from Schneider Electric are in stock at the optimal price and turnaround time through BALTELEC, a dependable merchant fulfilling the needs of practitioners in their gathering needs.

Patrons who have selected Schneider Electric iC60 have persistently commended the manufacturer’s robustness. It has been specified that the extraordinary effectiveness of A9N21599 - IDPN circuit breaker iDPN N 3P + N 25A C curve extends to a spectrum of scenarios. Its superior attributes make it well-suited solution to cater to varied requirements, securing success in your industrial, tertiary, and automation endeavors.

Our company devotes in serving industrial and tertiary professionals’ needs. We understand the particular specifications and demands of our consumers in the sector. By partnering with our company, our partners receive access to the best fees and availability of the top-of-the-line products like A9N21599 - IDPN circuit breaker iDPN N 3P + N 25A C curve from Schneider Electric at a competitive price. Registered customers take advantage of further discounts and dedicated support.

Seize the moment and purchase A9N21599 - IDPN circuit breaker iDPN N 3P + N 25A C curve at our dependable and straightforward platform. Don't delay in making this thoughtful action that validates the greatest quality and satisfies the personalized requests of suppliers like your company.

If you possess any worries or concerns about A9N21599 - IDPN circuit breaker iDPN N 3P + N 25A C curve or any other Schneider Electric products, connect with us or refer to our FAQs section below. We have compiled answers to regular issues to benefit you further in making an wise decision about industrial and tertiary electrical components.

Remember, A9N21599 - IDPN circuit breaker iDPN N 3P + N 25A C curve from Schneider Electric is dependable, reasonable, and superior to other manufacturers in the iC60 category. Make it a part of your solution without delay. Acquire at Baltelec e-shop, your reliable retailer for all your Schneider Electric.

In our Baltelec.eu e-commerce store you will come across IDPN circuit breaker iDPN N 3P + N 25A C curve - A9N21599 worth 32.31 €, which will be a secure and current solution for your wishes. This merchandise is produced by the Schneider Electric brand using the advanced technologies and aligns with the optimal standards of assurance and efficiency. We offer merchandise from the iC60 category that blend durability and usability, which is an superb selection for various intents. Irrespective of whether you demand appliances for small manufacturing or for expert industrial exertion, IDPN circuit breaker iDPN N 3P + N 25A C curve will be a safe aid in your undertaking.

Baltelec works to make the getting process as effortless and fast as workable for our users. We offer detailed reports and high-quality photographs of IDPN circuit breaker iDPN N 3P + N 25A C curve so that you can make an aware choice. A team of specialists is always ready to help you with any uncertainties in the iC60 section related to the choosing and use of merchandise. We are guaranteed that IDPN circuit breaker iDPN N 3P + N 25A C curve will meet your prospects and become an essential element of your hardware for just 32.31 €.
