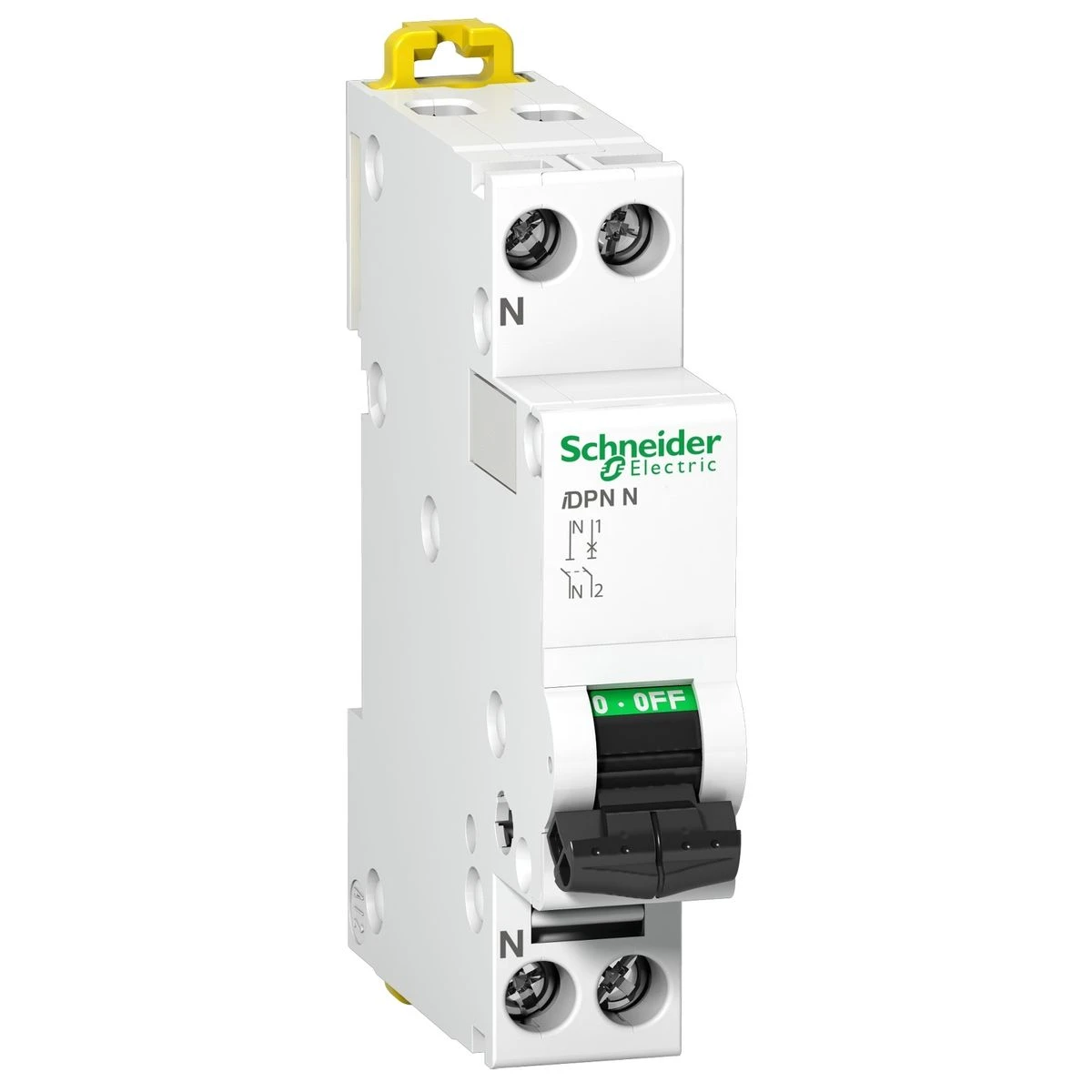

A9N21566 - IDPN circuit breaker iDPN N 1P + N 10A D curve - Schneider Electric

Upon request only
A9N21566 - IDPN circuit breaker iDPN N 1P + N 10A D curve - Schneider Electric - IDPN circuit breaker iDPN N 1P + N 10A D curve - Schneider Electric - 0
A9N21566 - IDPN circuit breaker iDPN N 1P + N 10A D curve - Schneider Electric
Text About:
IDPN circuit breaker iDPN N 1P + N 10A D curve - Schneider Electric
SPECIFICATIONS
Additional Information
curve D
Main
Device short name iDPN N
Range Clario
Neutral position Left
Number of protected poles 1
Product Name IDPN
Trip unit technology Thermal-magnetic
[ui] rated insulation voltage 400 V AC 50/60 Hz conforming to IEC 60947-2
Complementary
9 mm pitches 2
[in] rated current 10 A
[ue] rated operational voltage 230 V AC 50/60 Hz between phase and neutral
[ics] rated service breaking capacity 6000 A 100 % x Icn at 230 V AC 50/60 Hz conforming to EN/IEC 60898-1
Control type Toggle
Handle front plate colour 81 mm
Product or component type Miniature circuit-breaker
tightening torque 2 N.m
[uimp] rated impulse withstand voltage 4 kV conforming to IEC 60947-2
Connections - terminals Tunnel type terminals downstream 0.33…10 mm² flexible
Tunnel type terminals downstream 0.75…16 mm² rigid
Tunnel type terminals upstream 0.33…10 mm² flexible
Tunnel type terminals upstream 0.75…16 mm² rigid
Locking options description Padlocking device
Contact position indication Yes
Device application Distribution
width (w) 18 mm
network frequency 50/60 Hz
Colour White
Local signalling ON/OFF indication
Mounting mode Clip-on
Net weight 115 g
wire stripping length 13 mm
Earth-leakage protection Separate block
Mounting support DIN rail
depth 78 mm
mechanical durability 20000 cycles
electrical durability 20000 cycles
magnetic trip limit 10...14 x In
Network type AC
Pollution degree 3 conforming to IEC 60947-1
Limitation class 3 conforming to EN/IEC 60898-1
Suitability for isolation Yes
Poles description 1P + N
Environment
Ambient air temp for storage/transportation -40…70 °C
ip degree of protection IP20 conforming to IEC 60529
operating altitude 2000 m
Range of product Clario
ambient air temperature for operation -25…70 °C
standards EN/IEC 60898-1
Tropicalisation 2 conforming to IEC 60068-1
relative humidity 95 % at 55 °C
About this product

The A9N21566 - IDPN circuit breaker iDPN N 1P + N 10A D curve is engineered to match the obligations of professional buyers, such as switchgear manufacturers, wiring specialists, service organizations, and original producers. A9N21566 dispenses excellent robustness and benefits for designers in the power management industry. This IDPN circuit breaker iDPN N 1P + N 10A D curve and other iC60 from Schneider Electric can be bought at the most competitive price and shipping time through BALTELEC website, a reliable reseller helping consultants in their acquisition needs.

Patrons who have bought Schneider Electric iC60 have invariably praised the producer's durability. It has been highlighted that the unmatched energy-efficiency of A9N21566 - IDPN circuit breaker iDPN N 1P + N 10A D curve extends to a variety of operations. Its premium features make it right choice to satisfy a wide array of needs. Your developed solution will excel in quality, energy-efficiency and price.

BaltElec team centers in addressing industrial and tertiary professionals’ needs. We understand the customized needs and anticipations of our clients in the niche. By collaborating with our company, your organization gain access to the top rates and delivery schedule of premium products like A9N21566 - IDPN circuit breaker iDPN N 1P + N 10A D curve from Schneider Electric at an attractive price. Our registered accounts get added discounts and exclusive assistance.

Make a move and acquire A9N21566 - IDPN circuit breaker iDPN N 1P + N 10A D curve at our dependable and hassle-free virtual storefront. Don't delay in making this savvy selection that assures the paramount quality and covers the customized necessities of traders like your team.

When you have any matters or concerns about A9N21566 - IDPN circuit breaker iDPN N 1P + N 10A D curve or any other Schneider Electric products, get in touch with us or refer to our Support section section below. We have consolidated answers to frequent inquiries to facilitate you further in making an informed decision about industrial and tertiary electrical components.

Remember, A9N21566 - IDPN circuit breaker iDPN N 1P + N 10A D curve from Schneider Electric is dependable, wallet-friendly, and better to its counterparts in the iC60 category. Make it a part of your inventory this moment. Buy at BaltElec, your preferred supplier for all your professional electrical equipment and automation needs.

In our Baltelec.eu online store you will find IDPN circuit breaker iDPN N 1P + N 10A D curve - A9N21566 worth 18.39 €, which will be a constant and new solution for your desires. This article is produced by the Schneider Electric brand using the freshest technologies and adheres to the pinnacle standards of reliability and capability. We propose articles from the iC60 category that blend durability and workability, which is an superb alternative for various intents. Regardless of whether you crave instruments for small generation or for adept industrial use, IDPN circuit breaker iDPN N 1P + N 10A D curve will be a faithful helper in your occupation.

Baltelec ventures to make the obtaining process as effortless and fast as feasible for our buyers. We offer detailed depictions and high-quality pictures of IDPN circuit breaker iDPN N 1P + N 10A D curve so that you can make an versed choice. A team of pros is always ready to help you with any concerns in the iC60 section affiliated to the choice and use of articles. We are assured that IDPN circuit breaker iDPN N 1P + N 10A D curve will meet your needs and become an crucial element of your device for just 18.39 €.

Common Questions about Schneider Electric A9N21566:

  • What are the advantages of buying A9N21566 from baltelec.eu?

    When purchasing Schneider Electric A9N21566 from BALTELEC, you get original high-quality Schneider Electric iC60 products at affordable prices and delivery period. Additionally, loyal buyersget further discounts and expedited requests handling.

  • Can BaltElec advise if A9N21566 - IDPN circuit breaker iDPN N 1P + N 10A D curve suits for my technical requirements?

    To ensure that A9N21566 - IDPN circuit breaker iDPN N 1P + N 10A D curve is appropriate for your use case, we provide detailed information regarding product's specs, technical characteristics, and interoperability. You can access this data on the dedicated page of the item model. If you seek more guidance, our customer service representative is available to help you in making an informed decision.

  • What guarantee coverage is provided for A9N21566?

    Baltelec team stands for the quality of the items we deliver. The default guarantee coverage for Schneider Electric iC60 including A9N21566 is 12 months. However, it varies depending on the individual product, category, and might be extended. You can locate comprehensive guarantee details on the Schneider Electric IDPN circuit breaker iDPN N 1P + N 10A D curve dedicated page or by reaching out to our support team representatives.

  • Can you offer international shipping for A9N21566 as well as other Schneider Electric products?

    Yes. Apart from catering to Estonia, Latvia, Lithuania and other European Union countries, we offer international shipping for Schneider Electric IDPN circuit breaker iDPN N 1P + N 10A D curve. However that shipping options, costs, and delivery times might differ depending on the destination. For complex acquisitions, feel free to reach out to BaltElec sales team.

  • Do Schneider Electric MBC provided by Baltelec.eu adhere to global standards for security and quality?

    Completely. All Schneider Electric items available at Baltelec.eu web store conform to global standards such as IEC 60898-1 and carry the CE certification. Such norms ensure that the products fulfill stringent security, technological, reliability, and functional requirements.

  • Can BALTELEC provide support on incorporating renewable energy solutions, such as solar power systems or wind energy converters, into my projects?

    Definitely!  Baltelec online store acknowledges the relevance of renewable energy integration within community. Our team of experts can assist you in picking the suitable Schneider Electric products, to incorporate them into your renewable energy solutions}. We can provide guidance on combining solar power systems, wind energy converters, and other sustainable options to maximize power generation and efficiency.

  • Are there energy-efficient options available within the iC60 category to support energy conservation efforts?

    Absolutely! Baltelec website offers numerous eco-friendly solutions within the iC60 category that are in line with energy-saving goals. Our Schneider Electric products, like the A9N21566 - IDPN circuit breaker iDPN N 1P + N 10A D curve, are engineered with energy efficiency in mind. By integrating these products into your electrical system, you can enhance energy usage and reduce environmental impact. Additionally, we offer competitive pricing for our energy-efficient Schneider Electric products,, making them an economical choice for supporting sustainability.

  • Is A9N21566 offered by Baltelec.eu authentic?

    Absolutely, we solely offer genuine Schneider Electric products, including IDPN circuit breaker iDPN N 1P + N 10A D curve. We procure our products only through legitimate distribution channels to assure their authenticity and superior standards.
