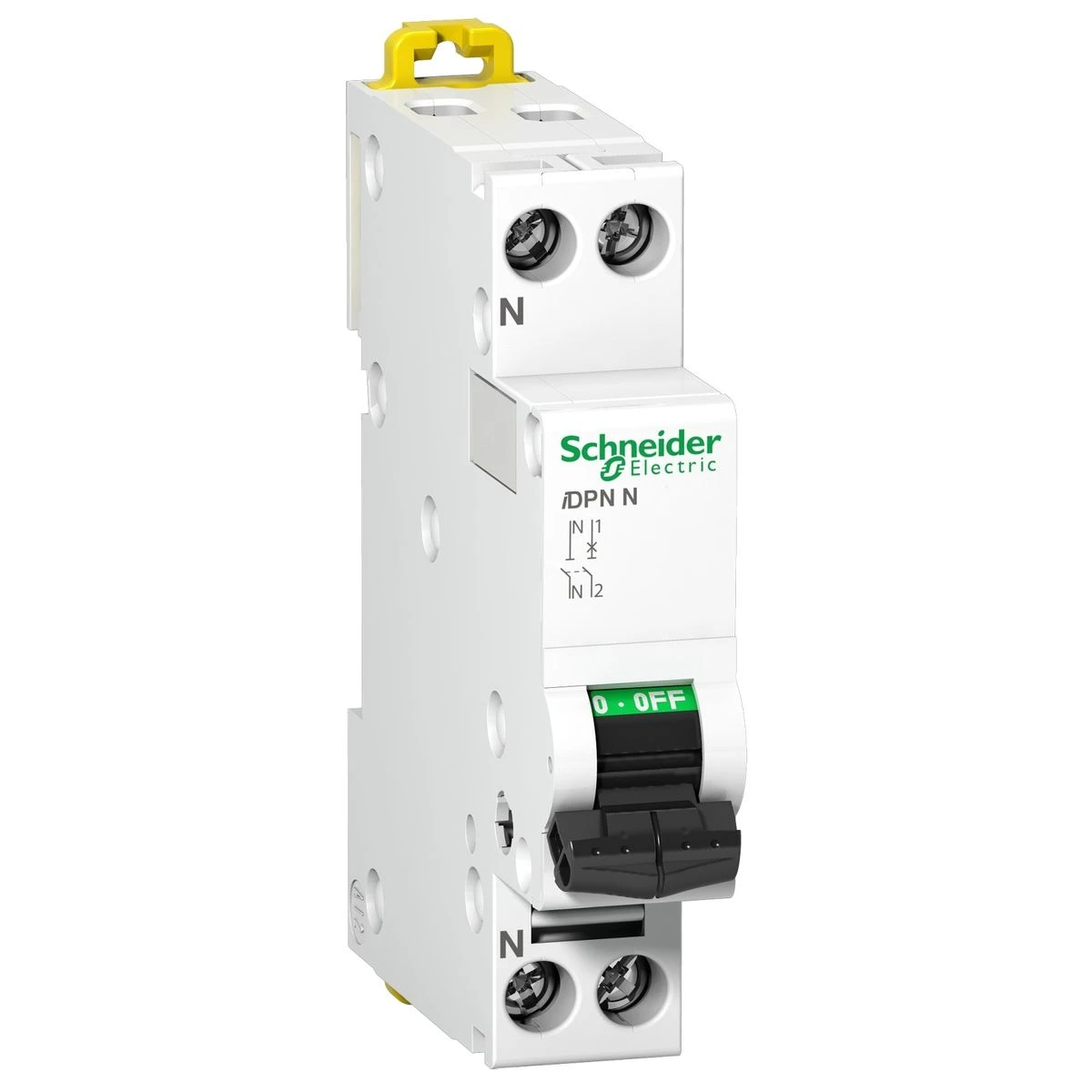

A9N21026 - IDPN circuit breaker iDPN N 1P + N 20A C curve - Schneider Electric

Pending restock
A9N21026 - IDPN  circuit breaker  iDPN N  1P + N  20A  C curve - Schneider Electric - IDPN  circuit breaker  iDPN N  1P + N  20A  C curve - Schneider Electric - 0
A9N21026 - IDPN circuit breaker iDPN N 1P + N 20A C curve - Schneider Electric
21,19 € excl. VAT
26,27 € incl. VAT
Text About:
IDPN circuit breaker iDPN N 1P + N 20A C curve - Schneider Electric
26,27 €
SPECIFICATIONS
Additional Information
curve C
Main
Device short name iDPN N
Range Clario
Neutral position Left
Number of protected poles 1
Product Name IDPN
Trip unit technology Thermal-magnetic
[ui] rated insulation voltage 400 V AC 50/60 Hz conforming to IEC 60947-2
Complementary
9 mm pitches 2
[in] rated current 20 A
[ue] rated operational voltage 230 V AC 50/60 Hz between phase and neutral
[ics] rated service breaking capacity 6000 A 100 % x Icn at 230 V AC 50/60 Hz conforming to EN/IEC 60898-1
7.5 kA 75 % x Icn at 230 V AC 50/60 Hz conforming to IEC 60947-2
Control type Toggle
Handle front plate colour 81 mm
Product or component type Miniature circuit-breaker
tightening torque 2 N.m
[uimp] rated impulse withstand voltage 4 kV conforming to IEC 60947-2
Connections - terminals Tunnel type terminals downstream 0.33…10 mm² flexible
Tunnel type terminals downstream 0.75…16 mm² rigid
Tunnel type terminals upstream 0.33…10 mm² flexible
Tunnel type terminals upstream 0.75…16 mm² rigid
Locking options description Padlocking device
Contact position indication Yes
Device application Distribution
width (w) 18 mm
network frequency 50/60 Hz
Colour White
Local signalling ON/OFF indication
Mounting mode Clip-on
Net weight 115 g
wire stripping length 13 mm
Earth-leakage protection Separate block
Mounting support DIN rail
depth 78 mm
mechanical durability 20000 cycles
electrical durability 20000 cycles
magnetic trip limit 5...10 x In
Network type AC
Pollution degree 3 conforming to IEC 60947-1
Limitation class 3 conforming to EN/IEC 60898-1
Suitability for isolation Yes
Poles description 1P + N
Environment
Ambient air temp for storage/transportation -40…70 °C
ip degree of protection IP20 conforming to IEC 60529
operating altitude 2000 m
Range of product Clario
ambient air temperature for operation -25…70 °C
standards EN/IEC 60898-1
EN/IEC 60947-2
Tropicalisation 2 conforming to IEC 60068-1
relative humidity 95 % at 55 °C
About this product

The A9N21026 - IDPN circuit breaker iDPN N 1P + N 20A C curve is produced to accommodate the needs of technical experts, such as panel builders, circuit experts, service providers, and Original Equipment manufacturers. A9N21026 furnishes exceptional durability and merit for designers in the power management industry. This IDPN circuit breaker iDPN N 1P + N 20A C curve and other iC60 from Schneider Electric are available at the most affordable rate and supply period through BaltElec, a well-regarded retailer helping consultants in their purchasing needs.

Technicians who have secured Schneider Electric iC60 have consistently commended the creator's robustness. It has been pointed out that the remarkable functionality of A9N21026 - IDPN circuit breaker iDPN N 1P + N 20A C curve extends to a collection of deployments. Its supreme characteristics make it suitable to cater to varied requirements, guaranteeing the success of your industrial, tertiary, and automation contracts.

Our professionals devotes in serving industrial and tertiary professionals’ needs. We grasp the distinct standards and expectations of our buyers in the sector. By partnering with Baltelec.eu, your company acquire access to the best fees and availability of the top-of-the-line products like A9N21026 - IDPN circuit breaker iDPN N 1P + N 20A C curve from Schneider Electric at a competitive price. Registered users get special savings and exclusive assistance.

Get started and get A9N21026 - IDPN circuit breaker iDPN N 1P + N 20A C curve at our well-established and user-friendly platform. Don't delay in making this smart action that ensures the superior quality and caters to the customized requests of suppliers like your business.

If you possess any matters or concerns about A9N21026 - IDPN circuit breaker iDPN N 1P + N 20A C curve or any other Schneider Electric products, get in touch with us or refer to our Information center section below. We have provided answers to regular uncertainties to benefit you further in making an knowledgeable decision about industrial and tertiary electrical components.

Remember, A9N21026 - IDPN circuit breaker iDPN N 1P + N 20A C curve from Schneider Electric is consistent, budget-friendly, and top-notch to its rivals in the iC60 category. Make it a part of your setup at once. Order at Baltelec e-shop, your esteemed seller for all your iC60.

In our Baltelec.eu virtual store you will uncover IDPN circuit breaker iDPN N 1P + N 20A C curve - A9N21026 worth 25.85 €, which will be a dependable and cutting-edge solution for your expectations. This item is engineered by the Schneider Electric brand using the newest technologies and aligns with the pinnacle standards of well-being and performance. We offer merchandise from the iC60 category that amalgamate endurance and usefulness, which is an premium selection for various roles. In spite of whether you require hardware for small production or for proficient industrial utilization, IDPN circuit breaker iDPN N 1P + N 20A C curve will be a trustworthy associate in your work.

Baltelec works to make the acquiring process as manageable and fast as doable for our clients. We offer detailed narratives and high-quality pictures of IDPN circuit breaker iDPN N 1P + N 20A C curve so that you can make an knowledgeable choice. A team of pros is always ready to help you with any issues in the iC60 section tied to the preferment and use of commodities. We are guaranteed that IDPN circuit breaker iDPN N 1P + N 20A C curve will meet your standards and become an necessary element of your equipment for just 25.85 €.
