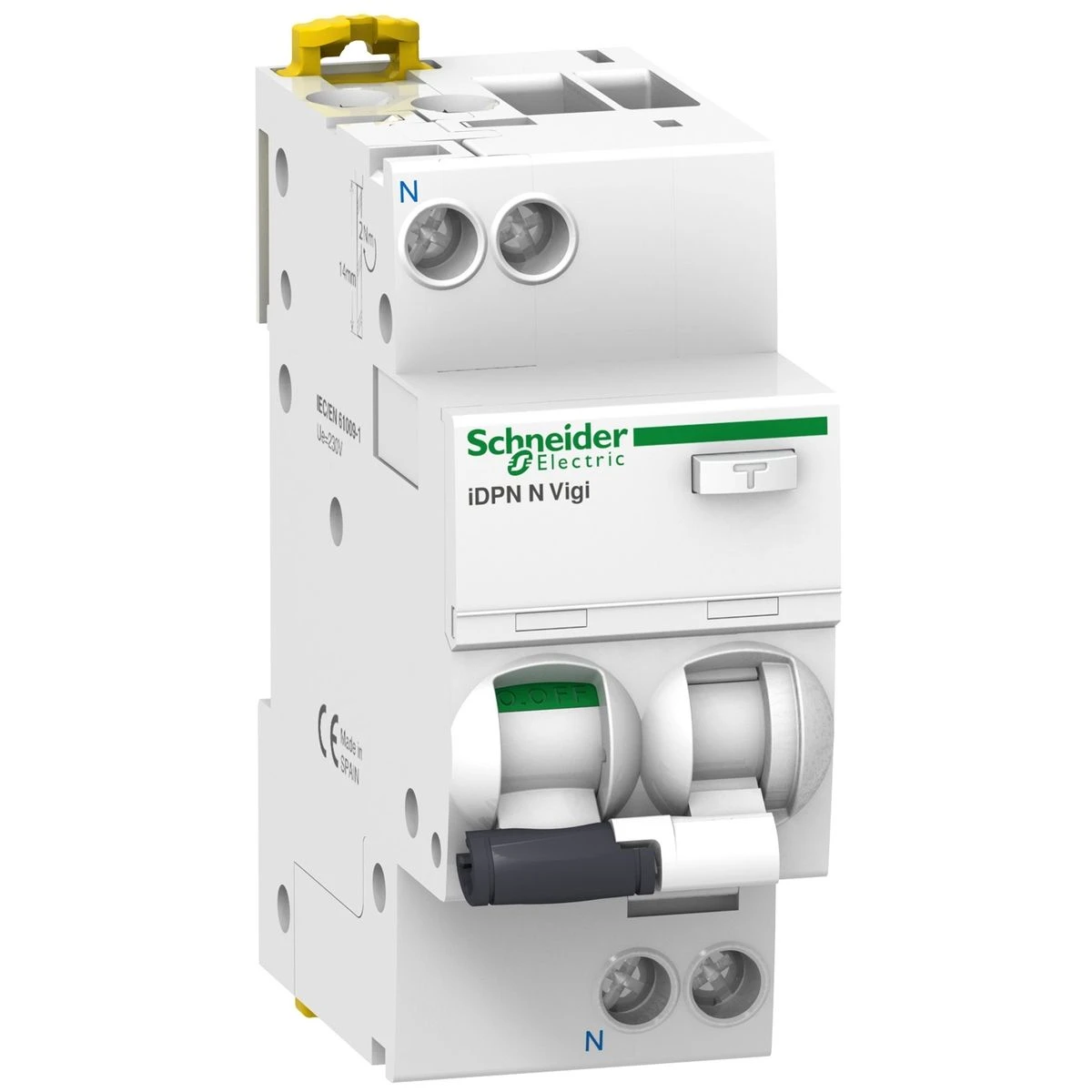

A9N19776 - Residual current breaker with overcurrent protection (RCBO), Acti9 iDPN N Vigi, 1P+N, 25A, C curve, 6000A, A type, 30mA - Schneider Electric

Pending restock
A9N19776 - Residual current breaker with overcurrent protection (RCBO), Acti9 iDPN N Vigi, 1P+N, 25A, C curve, 6000A, A type, 30mA - Schneider Electric - Residual current breaker with overcurrent protection (RCBO), Acti9 iDPN N Vigi, 1P+N, 25A, C curve, 6000A, A type, 30mA - Schneider Electric - 0
A9N19776 - Residual current breaker with overcurrent protection (RCBO), Acti9 iDPN N Vigi, 1P+N, 25A, C curve, 6000A, A type, 30mA - Schneider Electric
85,14 € excl. VAT
105,58 € incl. VAT
Text About:
Residual current breaker with overcurrent protection (RCBO), Acti9 iDPN N Vigi, 1P+N, 25A, C curve, 6000A, A type, 30mA - Schneider Electric
105,58 €
SPECIFICATIONS
Additional Information
curve C
Main
Device short name iDPN N Vigi
Device location in system Outgoer
Range Acti9
Earth-leakage protection class Type A
Neutral position Left
Number of protected poles 1
Earth-leakage protection time delay Instantaneous
Earth-leakage sensitivity 30 mA
Product Name Acti9 iDPN Vigi
Trip unit technology Thermal-magnetic
[ui] rated insulation voltage 400 V AC 50 Hz
Complementary
9 mm pitches 4
[in] rated current 25 A
[ue] rated operational voltage 220...240 V AC 50 Hz
[ics] rated service breaking capacity 6000 A 100 % x Icn at 220...240 V AC 50 Hz conforming to EN/IEC 61009-2-1
Control type Toggle
Product certifications VDE
KEMA
RCM
Connection pitch 9 mm between phase and neutral
Handle front plate colour 85 mm
Product or component type Residual current breaker with overcurrent protection (RCBO)
tightening torque 2 N.m top or bottom
[uimp] rated impulse withstand voltage 4 kV
Comb busbar and distribution block compatibility Top or bottom: YES
Connections - terminals Single terminal top or bottom 1…16 mm² rigid
Single terminal top or bottom 1…10 mm² flexible
Single terminal top or bottom 1…10 mm² flexible with ferrule
Locking options description Padlocking device
Contact position indication Yes
Device application Distribution
width (w) 36 mm
network frequency 50 Hz
Colour White
Local signalling ON, OFF, fault trip
Mounting mode Clip-on
Net weight 125 g
wire stripping length 15 mm for top or bottom connection
Earth-leakage protection Integrated
Mounting support DIN rail
depth 73 mm
mechanical durability 20000 cycles
electrical durability 10000 cycles
magnetic trip limit 5...10 x In
Network type AC
Pollution degree 3
Limitation class 3 conforming to EN/IEC 61009-2-1
residual current tripping technology Voltage independent
Suitability for isolation Yes conforming to EN/IEC 60947-2
Poles description 1P + N
Environment
Ambient air temp for storage/transportation -40…85 °C
ip degree of protection IP20 conforming to IEC 60529
IP40 (modular enclosure) conforming to IEC 60529
ambient air temperature for operation -25…60 °C
electromagnetic compatibility 8/20 µs impulse withstand, 250 A conforming to EN/IEC 61009-2-1
overvoltage category III conforming to IEC 60364
standards EN/IEC 61009-2-1
Tropicalisation 2 conforming to IEC 60068-1
relative humidity 95 % at 55 °C
About this product

The A9N19776 - Residual current breaker with overcurrent protection (RCBO), Acti9 iDPN N Vigi, 1P+N, 25A, C curve, 6000A, A type, 30mA is conceived to match the expectations of specialized professionals, such as panel builders, cable technicians, service providers, and Original Equipment manufacturers. A9N19776 yields unmatched quality and value for experts in the energy management industry. This Residual current breaker with overcurrent protection (RCBO), Acti9 iDPN N Vigi, 1P+N, 25A, C curve, 6000A, A type, 30mA and other iDPN from Schneider Electric are accessible at the most economical price and shipment duration through BALTELEC.EU, a respected vendor aiding specialists in their procurement needs.

Technicians who have purchased Schneider Electric iDPN have persistently acclaimed the maker's robustness. It has been mentioned that the unmatched competence of A9N19776 - Residual current breaker with overcurrent protection (RCBO), Acti9 iDPN N Vigi, 1P+N, 25A, C curve, 6000A, A type, 30mA extends to a array of scenarios. Its premium elements make it ideal solution to meet diverse demands. Your developed solution will excel in quality, energy-efficiency and price.

Our experts centers in serving industrial and tertiary professionals’ needs. We get the individual requirements and standards of our partners in the realm. By cooperating with our specialists, your team acquire access to the premier costs and supply timeline of premium products like A9N19776 - Residual current breaker with overcurrent protection (RCBO), Acti9 iDPN N Vigi, 1P+N, 25A, C curve, 6000A, A type, 30mA from Schneider Electric at an attractive price. Authorized buyers enjoy added discounts and priority service.

Act now and get A9N19776 - Residual current breaker with overcurrent protection (RCBO), Acti9 iDPN N Vigi, 1P+N, 25A, C curve, 6000A, A type, 30mA at our verified and hassle-free website. Don't delay in making this sensible resolution that assures the superior quality and matches the targeted requirements of suppliers like your organization.

If you encounter any questions or concerns about A9N19776 - Residual current breaker with overcurrent protection (RCBO), Acti9 iDPN N Vigi, 1P+N, 25A, C curve, 6000A, A type, 30mA or any other Schneider Electric products, send us a note or refer to our Common Questions section below. We have provided answers to frequent matters to guide you further in making an well-considered decision about industrial and tertiary electrical components.

Remember, A9N19776 - Residual current breaker with overcurrent protection (RCBO), Acti9 iDPN N Vigi, 1P+N, 25A, C curve, 6000A, A type, 30mA from Schneider Electric is safe, cost-effective, and top-notch to alternative suppliers in the iDPN category. Don't hesitate to make it a part of your network without delay. Obtain at Baltelec webstore, your reliable source for all your Schneider Electric.

In our Baltelec.eu cyber store you will locate Residual current breaker with overcurrent protection (RCBO), Acti9 iDPN N Vigi, 1P+N, 25A, C curve, 6000A, A type, 30mA - A9N19776 worth 103.88 €, which will be a sure and current solution for your necessities. This merchandise is designed by the Schneider Electric brand using the current technologies and adheres to the top standards of safety and workmanship. We present objects from the iDPN category that unite toughness and effectiveness, which is an fine decision for various functions. Regardless of whether you demand instruments for small output or for competent industrial purpose, Residual current breaker with overcurrent protection (RCBO), Acti9 iDPN N Vigi, 1P+N, 25A, C curve, 6000A, A type, 30mA will be a secure facilitator in your job.

Baltelec efforts to make the purchasing process as smooth and fast as attainable for our shoppers. We offer detailed explanations and high-quality illustrations of Residual current breaker with overcurrent protection (RCBO), Acti9 iDPN N Vigi, 1P+N, 25A, C curve, 6000A, A type, 30mA so that you can make an aware choice. A team of connoisseurs is always ready to help you with any uncertainties in the iDPN section relevant to the nomination and use of commodities. We are positive that Residual current breaker with overcurrent protection (RCBO), Acti9 iDPN N Vigi, 1P+N, 25A, C curve, 6000A, A type, 30mA will meet your requirements and become an essential element of your setup for just 103.88 €.

Popular Questions about Schneider Electric A9N19776:
