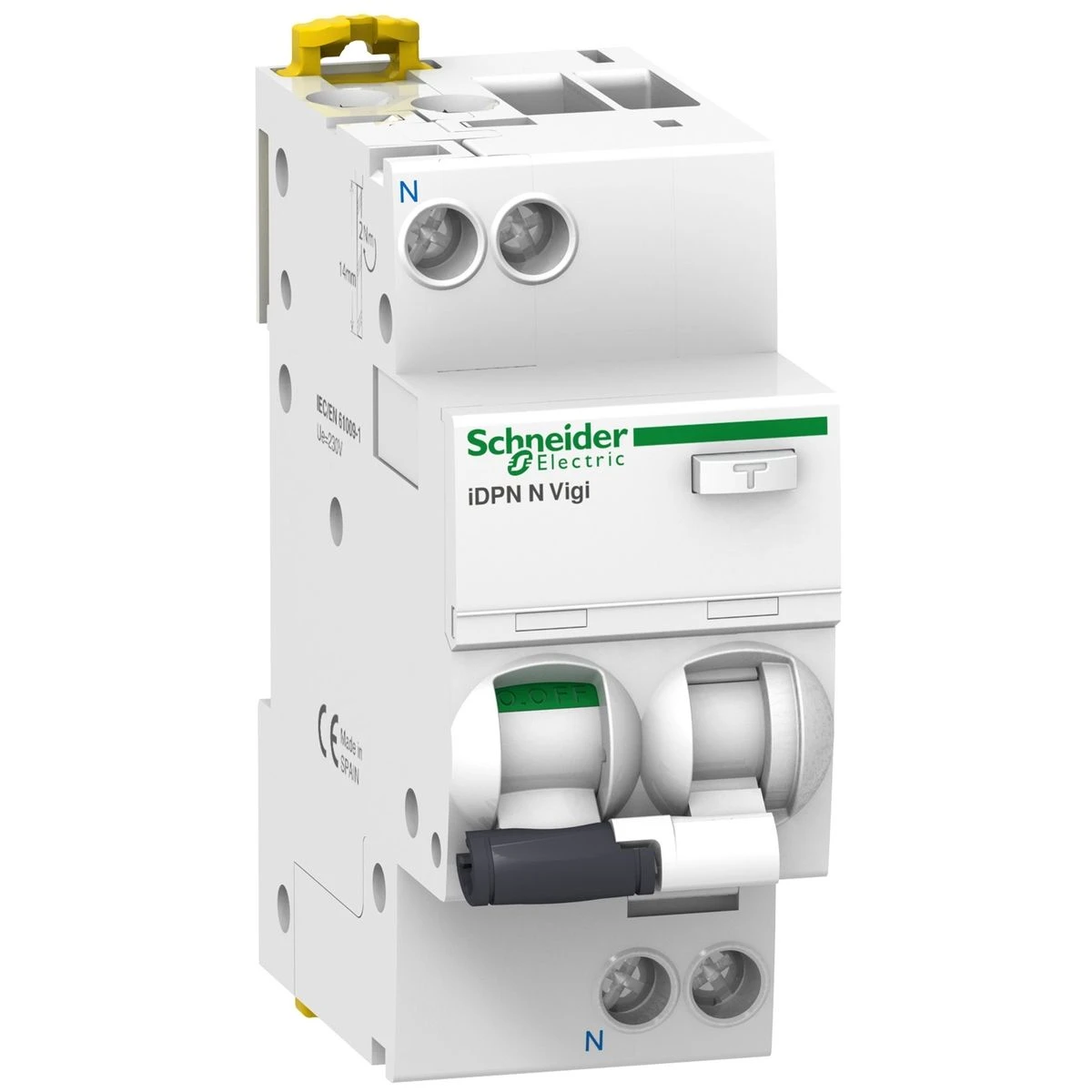

A9N19752 - Residual current breaker with overcurrent protection (RCBO), Acti9 iDPN N Vigi, 1P+N, 4A, B curve, 6000A, A type, 30mA - Schneider Electric

Pending restock
A9N19752 - Residual current breaker with overcurrent protection (RCBO), Acti9 iDPN N Vigi, 1P+N, 4A, B curve, 6000A, A type, 30mA - Schneider Electric - Residual current breaker with overcurrent protection (RCBO), Acti9 iDPN N Vigi, 1P+N, 4A, B curve, 6000A, A type, 30mA - Schneider Electric - 0
A9N19752 - Residual current breaker with overcurrent protection (RCBO), Acti9 iDPN N Vigi, 1P+N, 4A, B curve, 6000A, A type, 30mA - Schneider Electric
85,24 € excl. VAT
105,70 € incl. VAT
Text About:
Residual current breaker with overcurrent protection (RCBO), Acti9 iDPN N Vigi, 1P+N, 4A, B curve, 6000A, A type, 30mA - Schneider Electric
105,70 €
SPECIFICATIONS
Additional Information
curve B
Main
Device short name iDPN N Vigi
Device location in system Outgoer
Range Acti9
Earth-leakage protection class Type A
Neutral position Left
Number of protected poles 1
Earth-leakage protection time delay Instantaneous
Earth-leakage sensitivity 30 mA
Product Name Acti9 iDPN Vigi
Trip unit technology Thermal-magnetic
[ui] rated insulation voltage 400 V AC 50 Hz
Complementary
9 mm pitches 4
[in] rated current 4 A
[ue] rated operational voltage 220...240 V AC 50 Hz
[ics] rated service breaking capacity 6000 A 100 % x Icn at 220...240 V AC 50 Hz conforming to EN/IEC 61009-2-1
Control type Toggle
Product certifications VDE
KEMA
Connection pitch 9 mm between phase and neutral
Handle front plate colour 85 mm
Product or component type Residual current breaker with overcurrent protection (RCBO)
tightening torque 2 N.m top or bottom
[uimp] rated impulse withstand voltage 4 kV
Comb busbar and distribution block compatibility Top or bottom: YES
Connections - terminals Single terminal top or bottom 1…16 mm² rigid
Single terminal top or bottom 1…10 mm² flexible
Single terminal top or bottom 1…10 mm² flexible with ferrule
Locking options description Padlocking device
Contact position indication Yes
Device application Distribution
width (w) 36 mm
network frequency 50 Hz
Colour White
Local signalling ON, OFF, fault trip
Mounting mode Clip-on
Net weight 125 g
wire stripping length 15 mm for top or bottom connection
Earth-leakage protection Integrated
Mounting support DIN rail
depth 73 mm
mechanical durability 20000 cycles
electrical durability 20000 cycles
magnetic trip limit 3...5 x In
Network type AC
Pollution degree 3
Limitation class 3 conforming to EN/IEC 61009-2-1
residual current tripping technology Voltage independent
Suitability for isolation Yes conforming to EN/IEC 60947-2
Poles description 1P + N
Environment
Ambient air temp for storage/transportation -40…85 °C
ip degree of protection IP20 conforming to IEC 60529
IP40 (modular enclosure) conforming to IEC 60529
ambient air temperature for operation -25…60 °C
electromagnetic compatibility 8/20 µs impulse withstand, 250 A conforming to EN/IEC 61009-2-1
overvoltage category III conforming to IEC 60364
standards EN/IEC 61009-2-1
Tropicalisation 2 conforming to IEC 60068-1
relative humidity 95 % at 55 °C
About this product

The A9N19752 - Residual current breaker with overcurrent protection (RCBO), Acti9 iDPN N Vigi, 1P+N, 4A, B curve, 6000A, A type, 30mA is formulated to accommodate the requirements of specialized professionals, such as panel manufacturers, wiremen, service organizations, and Industry suppliers. A9N19752 delivers extraordinary efficiency and merit for developers in the power management industry. This Residual current breaker with overcurrent protection (RCBO), Acti9 iDPN N Vigi, 1P+N, 4A, B curve, 6000A, A type, 30mA and other iDPN from Schneider Electric are in stock at the optimal price and distribution time through BaltElec website, a respected wholesaler fulfilling the needs of technicians in their purchasing needs.

Buyers who have procured Schneider Electric iDPN have frequently praised the producer's durability. It has been pointed out that the impressive efficiency of A9N19752 - Residual current breaker with overcurrent protection (RCBO), Acti9 iDPN N Vigi, 1P+N, 4A, B curve, 6000A, A type, 30mA extends to a array of tasks. Its top-notch attributes make it great selection for multiple purposes, assuring the success of your industrial, tertiary, and automation ventures.

Our team concentrates in catering industrial and tertiary professionals’ needs. We get the specific expectations and anticipations of our buyers in the industry. By aligning with our company, your team get access to the top rates and inventory of the top-of-the-line products like A9N19752 - Residual current breaker with overcurrent protection (RCBO), Acti9 iDPN N Vigi, 1P+N, 4A, B curve, 6000A, A type, 30mA from Schneider Electric at a reasonable price. Baltelec account members get added discounts and exclusive assistance.

Do not hesitate and obtain A9N19752 - Residual current breaker with overcurrent protection (RCBO), Acti9 iDPN N Vigi, 1P+N, 4A, B curve, 6000A, A type, 30mA at our well-established and convenient digital marketplace. Don't delay in making this astute option that confirms the paramount quality and fulfills the unique needs of contractors like your outfit.

If you possess any issues or concerns about A9N19752 - Residual current breaker with overcurrent protection (RCBO), Acti9 iDPN N Vigi, 1P+N, 4A, B curve, 6000A, A type, 30mA or any other Schneider Electric products, call us or refer to our Frequently Asked Queries section below. We have collected answers to typical concerns to guide you further in making an informed decision about industrial and tertiary electrical components.

Remember, A9N19752 - Residual current breaker with overcurrent protection (RCBO), Acti9 iDPN N Vigi, 1P+N, 4A, B curve, 6000A, A type, 30mA from Schneider Electric is secure, low-cost, and top-notch to its rivals in the iDPN category. Make it a part of your installation without delay. Snap up at baltele.eu, your respected merchant for all your Schneider Electric.

In our Baltelec.eu cyber store you will identify Residual current breaker with overcurrent protection (RCBO), Acti9 iDPN N Vigi, 1P+N, 4A, B curve, 6000A, A type, 30mA - A9N19752 worth 103.99 €, which will be a safe and cutting-edge solution for your requirements. This produce is invented by the Schneider Electric brand using the current technologies and conforms to the optimal standards of reliability and effectiveness. We furnish items from the iDPN category that combine durability and usability, which is an first-rate selection for various intents. Notwithstanding of whether you demand equipment for small formation or for professional industrial exertion, Residual current breaker with overcurrent protection (RCBO), Acti9 iDPN N Vigi, 1P+N, 4A, B curve, 6000A, A type, 30mA will be a secure associate in your endeavor.

Baltelec labors to make the getting process as uncomplicated and fast as achievable for our patrons. We offer detailed narratives and high-quality pictures of Residual current breaker with overcurrent protection (RCBO), Acti9 iDPN N Vigi, 1P+N, 4A, B curve, 6000A, A type, 30mA so that you can make an informed choice. A team of professionals is always ready to help you with any inquiries in the iDPN section related to the determining and use of products. We are positive that Residual current breaker with overcurrent protection (RCBO), Acti9 iDPN N Vigi, 1P+N, 4A, B curve, 6000A, A type, 30mA will meet your needs and become an indispensable element of your setup for just 103.99 €.

Common Queries about Schneider Electric Residual current breaker with overcurrent protection (RCBO), Acti9 iDPN N Vigi, 1P+N, 4A, B curve, 6000A, A type, 30mA:
