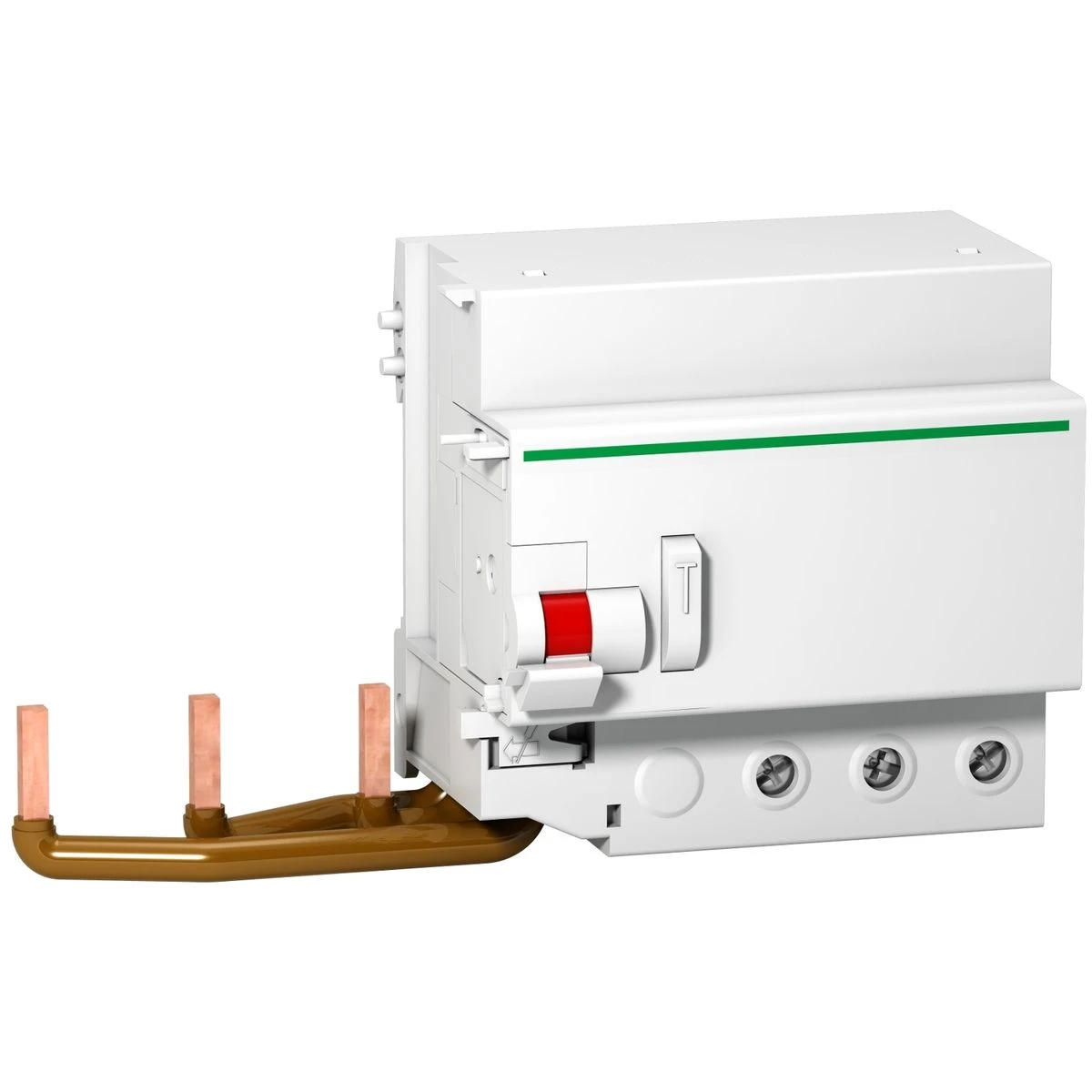

A9N18575 - Vigi C120 earth leakage addon block 3P 30 mA class A - Schneider Electric

Expected in 2-4 weeks
A9N18575 - Vigi C120 earth leakage addon block 3P 30 mA class A - Schneider Electric - Vigi C120 earth leakage addon block 3P 30 mA class A - Schneider Electric - 0
A9N18575 - Vigi C120 earth leakage addon block 3P 30 mA class A - Schneider Electric
408,97 € excl. VAT
507,12 € incl. VAT
Text About:
Vigi C120 earth leakage addon block 3P 30 mA class A - Schneider Electric
507,12 €
SPECIFICATIONS
Main
Device short name Vigi C120
Device location in system Outgoer
Earth-leakage protection class Type A
Earth-leakage protection time delay Instantaneous
Earth-leakage sensitivity 30 mA
[ui] rated insulation voltage 500 V AC 50/60 Hz conforming to IEC 60947-1
Complementary
9 mm pitches 10
[in] rated current 125 A
[ue] rated operational voltage 400...415 V AC 50/60 Hz
Handle front plate colour 95 mm
Product or component type Add-on residual current devices
tightening torque 3.5 N.m
[uimp] rated impulse withstand voltage 6 kV conforming to IEC 60947-2
Connections - terminals Tunnel type terminals 1…35 mm² flexible
Tunnel type terminals 1…50 mm² rigid
Electrical connection to mcb By screws
width (w) 171 mm
network frequency 50/60 Hz
Colour White
Mounting mode Clip-on
Net weight 0.5 kg
wire stripping length 15 mm
Mounting support 35 mm symmetrical DIN rail
depth 73 mm
mechanical durability 20000 cycles
Network type AC
Pollution degree 3 conforming to IEC 60947-2
residual current tripping technology Voltage independent
Poles description 3P
Environment
Ambient air temp for storage/transportation -40…60 °C
ip degree of protection IP20
ambient air temperature for operation -25…60 °C
standards EN 61009
IEC/EN 61009-2-1
About this product

The A9N18575 - Vigi C120 earth leakage addon block 3P 30 mA class A is produced to meet the prerequisites of technical experts, such as circuit designers, electrical installers, service organizations, and original producers. A9N18575 provides remarkable durability and beneficence for professionals in the power systems industry. This Vigi C120 earth leakage addon block 3P 30 mA class A and other C120 from Schneider Electric can be obtained at the unbeatable price and delivery schedule through BALTELEC website, a trustworthy reseller helping specialists in their sourcing needs.

Professionals who have opted for Schneider Electric C120 have regularly extolled the brand's stability. It has been stated that the unmatched competence of A9N18575 - Vigi C120 earth leakage addon block 3P 30 mA class A extends to a array of utilizations. Its ideal traits make it great selection for various requirements, assuring the success of your industrial, tertiary, and automation ventures.

Our company dedicates in accommodating industrial and tertiary professionals’ needs. We know the particular requirements and expectations of our buyers in the niche. By working with BALTELEC, our customers obtain access to the best charges and availability of the top-of-the-line products like A9N18575 - Vigi C120 earth leakage addon block 3P 30 mA class A from Schneider Electric at cost-effective price. Our registered accounts take pleasure in exclusive discounts and top-tier service.

Start immediately and secure A9N18575 - Vigi C120 earth leakage addon block 3P 30 mA class A at our verified and convenient internet shop. Don't delay in making this thoughtful action that secures the paramount quality and achieves the specific requirements of contractors like you.

Should you have any concerns or concerns about A9N18575 - Vigi C120 earth leakage addon block 3P 30 mA class A or any other Schneider Electric products, get in touch with us or refer to our Information center section below. We have provided answers to routine concerns to advise you further in making an educated decision about industrial and tertiary electrical components.

Remember, A9N18575 - Vigi C120 earth leakage addon block 3P 30 mA class A from Schneider Electric is secure, inexpensive, and premier to opposing companies in the C120 category. Feel free to make it a part of your solution at once. Take advantage of at BALTELEC, your steady distributor for all your professional electrical equipment and automation needs.

In our Baltelec.eu dot-com store you will identify Vigi C120 earth leakage addon block 3P 30 mA class A - A9N18575 worth 498.94 €, which will be a faithful and cutting-edge solution for your preferences. This object is produced by the Schneider Electric brand using the latest technologies and adheres to the maximum standards of guarding and effectiveness. We give objects from the C120 category that blend sturdiness and effectiveness, which is an outstanding alternative for various intents. Independent of whether you necessitate instruments for small fabrication or for skilled industrial utilization, Vigi C120 earth leakage addon block 3P 30 mA class A will be a faithful helper in your duty.

Baltelec aims to make the buying process as accessible and fast as feasible for our consumers. We offer detailed outlines and high-quality images of Vigi C120 earth leakage addon block 3P 30 mA class A so that you can make an briefed choice. A team of maestros is always ready to help you with any queries in the C120 section pertaining to the opting and use of supplies. We are positive that Vigi C120 earth leakage addon block 3P 30 mA class A will meet your prospects and become an important element of your setup for just 498.94 €.
