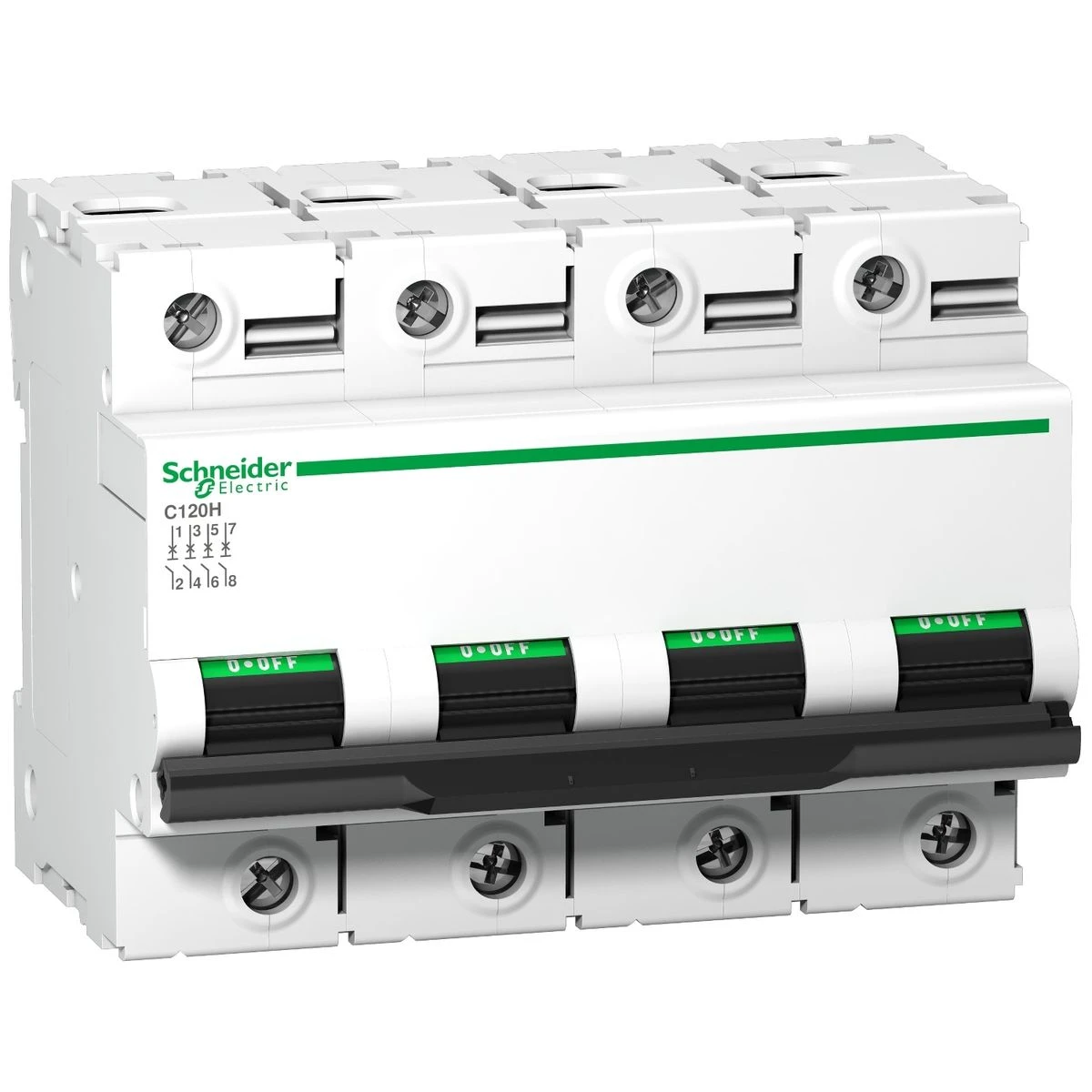

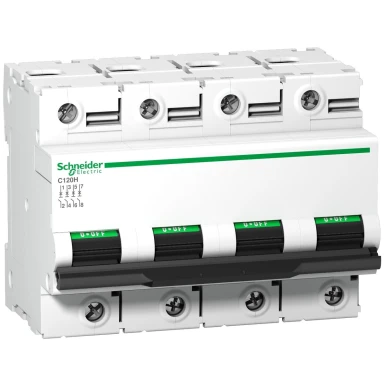

A9N18434 - Miniature circuit breaker (MCB), Acti9 C120H, 4P, 63A, B curve, 15000A (IEC/EN 60898-1), 15kA (IEC/EN 60947-2) - Schneider Electric

Expected in 2-4 weeks
A9N18434 - Miniature circuit breaker (MCB), Acti9 C120H, 4P, 63A, B curve, 15000A (IEC/EN 60898-1), 15kA (IEC/EN 60947-2) - Schneider Electric - Miniature circuit breaker (MCB), Acti9 C120H, 4P, 63A, B curve, 15000A (IEC/EN 60898-1), 15kA (IEC/EN 60947-2) - Schneider Electric - 0
A9N18434 - Miniature circuit breaker (MCB), Acti9 C120H, 4P, 63A, B curve, 15000A (IEC/EN 60898-1), 15kA (IEC/EN 60947-2) - Schneider Electric
208,06 € excl. VAT
258,00 € incl. VAT
Text About:
Miniature circuit breaker (MCB), Acti9 C120H, 4P, 63A, B curve, 15000A (IEC/EN 60898-1), 15kA (IEC/EN 60947-2) - Schneider Electric
258,00 €
SPECIFICATIONS
Additional Information
curve B
Main
Device short name C120H
Range Acti9
Number of protected poles 4
Product Name C120
Trip unit technology Thermal-magnetic
[ui] rated insulation voltage 500 V AC 50/60 Hz conforming to EN/IEC 60947-2
Complementary
9 mm pitches 12
[in] rated current 63 A at 30 °C
[ue] rated operational voltage 380...415 V AC 50/60 Hz
<= 500 V DC
220...240 V AC 50/60 Hz
440 V AC 50/60 Hz
230...400 V AC 50/60 Hz
[ics] rated service breaking capacity 7500 A 50 % conforming to EN/IEC 60898-1 - 230...400 V AC 50/60 Hz
5 kA 50 % conforming to EN/IEC 60947-2 - 440 V AC 50/60 Hz
15 kA 50 % conforming to EN/IEC 60947-2 - 220...240 V AC 50/60 Hz
7.5 kA 50 % conforming to EN/IEC 60947-2 - 380...415 V AC 50/60 Hz
15 kA 100 % conforming to EN/IEC 60947-2 - <= 500 V DC
Control type Toggle
Product certifications EAC
Handle front plate colour 81 mm
Product or component type Miniature circuit-breaker
tightening torque 3.5 N.m
[uimp] rated impulse withstand voltage 6 kV conforming to EN/IEC 60947-2
Comb busbar and distribution block compatibility YES
Connections - terminals Tunnel type terminals1…50 mm² rigid
Tunnel type terminals1.5…35 mm² flexible
Contact position indication Yes
Device application Distribution
width (w) 108 mm
network frequency 50/60 Hz
Colour White
Local signalling ON/OFF indication
Mounting mode Clip-on
Net weight 0.82 kg
wire stripping length 15 mm
Earth-leakage protection Separate block
Mounting support 35 mm symmetrical DIN rail
depth 73 mm
mechanical durability 20000 cycles
electrical durability 10000 cycles conforming to IEC 60947-2
magnetic trip limit 3...5 x In
Network type AC
Pollution degree 3 conforming to IEC 60947-2
Limitation class 3 conforming to EN/IEC 60947-2
Suitability for isolation Yes conforming to IEC 60947-2
Poles description 4P
Environment
Ambient air temp for storage/transportation -40…70 °C
ip degree of protection IP20 conforming to IEC 60529
operating altitude 2000 m
Range of product C120
ambient air temperature for operation -30…60 °C
overvoltage category IV
standards EN/IEC 60898-1
EN/IEC 60947-2
Tropicalisation 2 conforming to IEC 60068-1
relative humidity 95 % at 55 °C
About this product

The A9N18434 - Miniature circuit breaker (MCB), Acti9 C120H, 4P, 63A, B curve, 15000A (IEC/EN 60898-1), 15kA (IEC/EN 60947-2) is crafted to accommodate the conditions of trade professionals, such as circuit designers, electricians, facility management firms, and original manufacturers. A9N18434 grants impressive standards and profit for consultants in the electromechanical industry. This Miniature circuit breaker (MCB), Acti9 C120H, 4P, 63A, B curve, 15000A (IEC/EN 60898-1), 15kA (IEC/EN 60947-2) and other C120 from Schneider Electric are accessible at the unbeatable price and shipment duration through BaltElec website, an independent distributor attending to experts in their supply needs.

Consumers who have chosen Schneider Electric C120 have persistently praised the producer's dependability. It has been remarked that the unmatched competence of A9N18434 - Miniature circuit breaker (MCB), Acti9 C120H, 4P, 63A, B curve, 15000A (IEC/EN 60898-1), 15kA (IEC/EN 60947-2) extends to a variety of use. Its excellent attributes make it proper pick to satisfy a wide array of needs. Your developed solution will excel in quality, energy-efficiency and price.

Our specialists focuses in meeting industrial and tertiary professionals’ needs. We understand the special needs and preferences of our partners in the niche. By joining forces with our experts, our partners get access to the leading fees and stock of excellent products like A9N18434 - Miniature circuit breaker (MCB), Acti9 C120H, 4P, 63A, B curve, 15000A (IEC/EN 60898-1), 15kA (IEC/EN 60947-2) from Schneider Electric at an economical price. Registered users take pleasure in special savings and top-tier service.

Act now and buy A9N18434 - Miniature circuit breaker (MCB), Acti9 C120H, 4P, 63A, B curve, 15000A (IEC/EN 60898-1), 15kA (IEC/EN 60947-2) at our safe and easy-to-use online store. Don't delay in making this smart selection that secures the top quality and fulfills the individual standards of professionals like your organization.

Should there be any queries or concerns about A9N18434 - Miniature circuit breaker (MCB), Acti9 C120H, 4P, 63A, B curve, 15000A (IEC/EN 60898-1), 15kA (IEC/EN 60947-2) or any other Schneider Electric products, message us or refer to our Information center section below. We have curated answers to recurring concerns to facilitate you further in making an thoughtful decision about industrial and tertiary electrical components.

Remember, A9N18434 - Miniature circuit breaker (MCB), Acti9 C120H, 4P, 63A, B curve, 15000A (IEC/EN 60898-1), 15kA (IEC/EN 60947-2) from Schneider Electric is reliable, value-priced, and premier to other producers in the C120 category. Make it a part of your infrastructure immediately. Obtain at Baltelec webstore, your reliable retailer for all your C120.

In our Baltelec.eu dot-com store you will spot Miniature circuit breaker (MCB), Acti9 C120H, 4P, 63A, B curve, 15000A (IEC/EN 60898-1), 15kA (IEC/EN 60947-2) - A9N18434 worth 253.84 €, which will be a reliable and new solution for your demands. This article is created by the Schneider Electric brand using the most recent technologies and follows the uppermost standards of defense and performance. We deliver items from the C120 category that integrate strength and efficacy, which is an outstanding election for various intents. Not minding of whether you require apparatus for small manufacturing or for competent industrial application, Miniature circuit breaker (MCB), Acti9 C120H, 4P, 63A, B curve, 15000A (IEC/EN 60898-1), 15kA (IEC/EN 60947-2) will be a safe assistant in your duty.

Baltelec strives to make the obtaining process as comfortable and fast as practicable for our buyers. We offer detailed descriptions and high-quality shots of Miniature circuit breaker (MCB), Acti9 C120H, 4P, 63A, B curve, 15000A (IEC/EN 60898-1), 15kA (IEC/EN 60947-2) so that you can make an enlightened choice. A team of professionals is always ready to help you with any doubts in the C120 section linked to the choosing and use of commodities. We are persuaded that Miniature circuit breaker (MCB), Acti9 C120H, 4P, 63A, B curve, 15000A (IEC/EN 60898-1), 15kA (IEC/EN 60947-2) will meet your needs and become an indispensable element of your gear for just 253.84 €.

Common Queries about A9N18434 - Miniature circuit breaker (MCB), Acti9 C120H, 4P, 63A, B curve, 15000A (IEC/EN 60898-1), 15kA (IEC/EN 60947-2):
