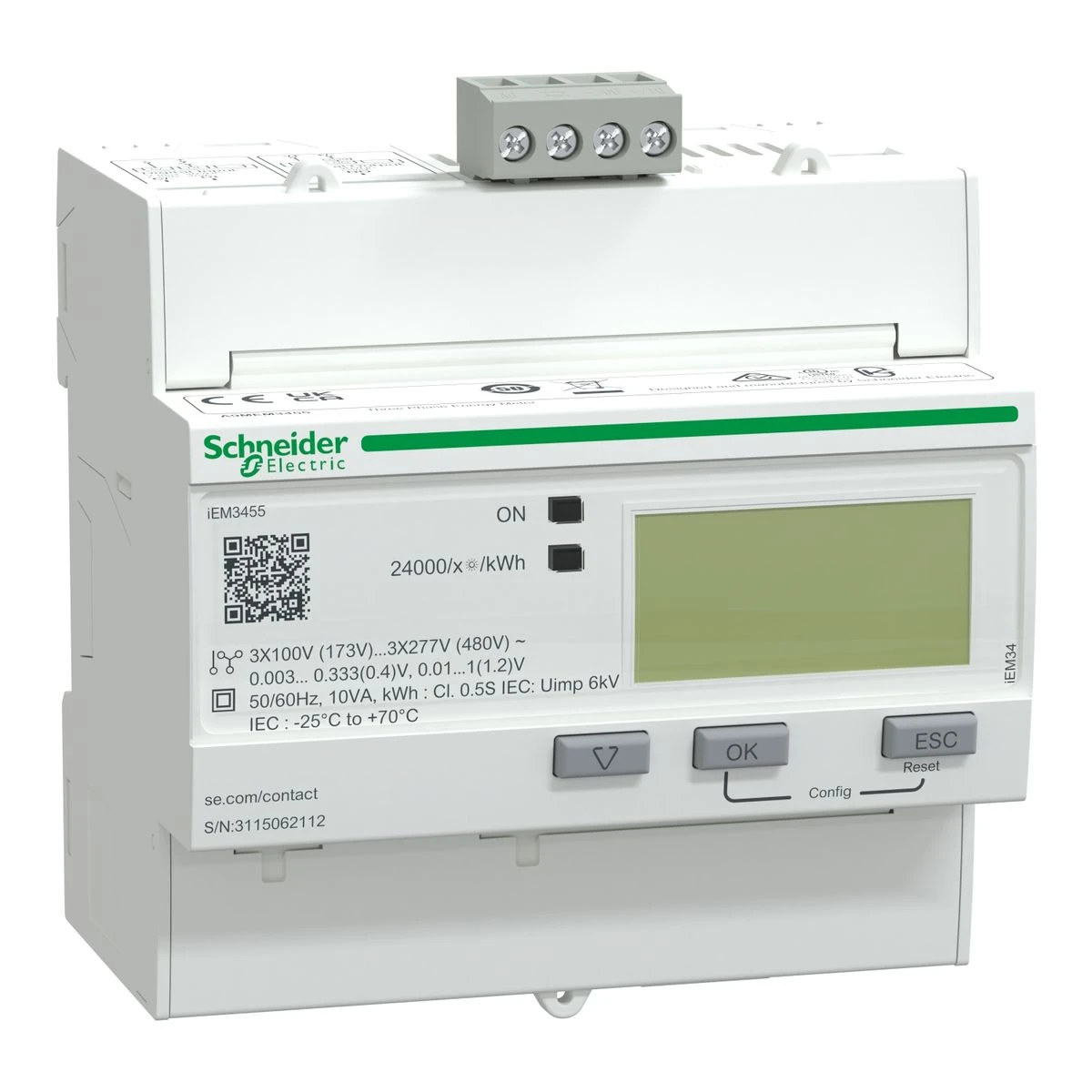

A9MEM3455 - IEM3455 energy meter Modbus 1 DI 1 DO multitariff LVCT - Schneider Electric

Expected in 2-4 weeks

278,65 € excl. VAT

339,95 € incl. VAT

Text About:

IEM3455 energy meter Modbus 1 DI 1 DO multitariff LVCT - Schneider Electric

In cart

339,95 €

SPECIFICATIONS

Main

Device short name iEM3455

Maximum value measured 99999999.9 kWh
99999999 MWh

Measurement current 1…32767000 mA

Range Acti9

Rated voltage 100…277 V +/- 20 %
173…480 V +/- 20 %

Complementary

9 mm pitches 10

Product certifications CE conforming to IEC 61010-1 (safety)
CE conforming to EN 61557-12 (power monitor)
CE conforming to EN/IEC 61326-1 (EMC)
UKCA conforming to BS EN 61010-1 (safety)
UKCA conforming to BS EN 61557-12 (power monitor)
UKCA conforming to BS EN 61326-1 (EMC)
CULus conforming to UL 61010-1 (safety)
CULus conforming to EN 61010-1 (safety)
KZ
RCM

Communication port support Screw terminal block: RS485

Handle front plate colour 87 mm

Product or component type Energy meter

tightening torque Input/output circuit: 0.5 N.m Philips screwdriver
Voltage circuit: 0.5 N.m Philips screwdriver
Current circuit: 0.8 N.m pozidriv screwdriver
Communication: 0.5 N.m Philips screwdriver

accuracy class Class 0.5S active energy conforming to IEC 62053-22
Class 0.5S active energy conforming to ANSI C12.20

Connections - terminals Current circuit: screw terminals 6 mm² cable(s)
Voltage circuit: screw terminals 2.5 mm² cable(s)
Input/output circuit: screw terminals 1.5 mm² cable(s)
Communication: screw terminals 2.5 mm² cable(s)

Device application Sub billing
Multi-tariff
Partial meter

type of measurement Active and reactive energy
Active and reactive power
Current
Voltage

output voltage 5...40 V DC@50 mA

width (w) 90 mm

network frequency 60 Hz
50 Hz

number of outputs 1 digital (static)

Colour White

Ik degree of protection IK08

input type Split core current transducer 0.333 V or 1 V

Local signalling Green indicator light: power ON
Yellow flashing LED: accuracy checking
alarm: overload
Yellow indicator light: communications are active on the Modbus port (Modbus)

Mounting mode Clip-on

wire stripping length Input/output circuit: 6 mm
Voltage circuit: 8 mm
Current circuit: 8 mm
Communication: 7 mm

communication port protocol Modbus RTU at 9.6, 19.2 and 38.4 kbauds even/odd or none

Display type LCD display

Mounting support DIN rail

depth 69 mm

Number of inputs 1 digital 0...5 V/11...40 V 24 V DC

Pollution degree 2

sampling rate 32 samples/cycle

Technology type Electronic

Metering type Active, reactive, apparent energy (signed, four quadrant)

Poles description 3P + N
1P + N
3P

Tariff input Tariff (4)

Environment

Ambient air temp for storage/transportation -40…85 °C

ip degree of protection IP40 front panel: conforming to IEC 60529
IP20 body: conforming to IEC 60529

operating altitude < 3000 m

Range of product Acti9 iEM3000

ambient air temperature for operation -25…70 °C - IEC

standards BS EN 61326-1
IEC 61326-1
EN 61326-1
BS EN 61010-1
EN 61010-1
IEC 61010-1
UL 61010-1
BS EN 61010-2-30
IEC 61010-2-30
EN 61010-2-30
UL 61010-2-30
ANSI C12.20

relative humidity 5…95 % at 36 °C
