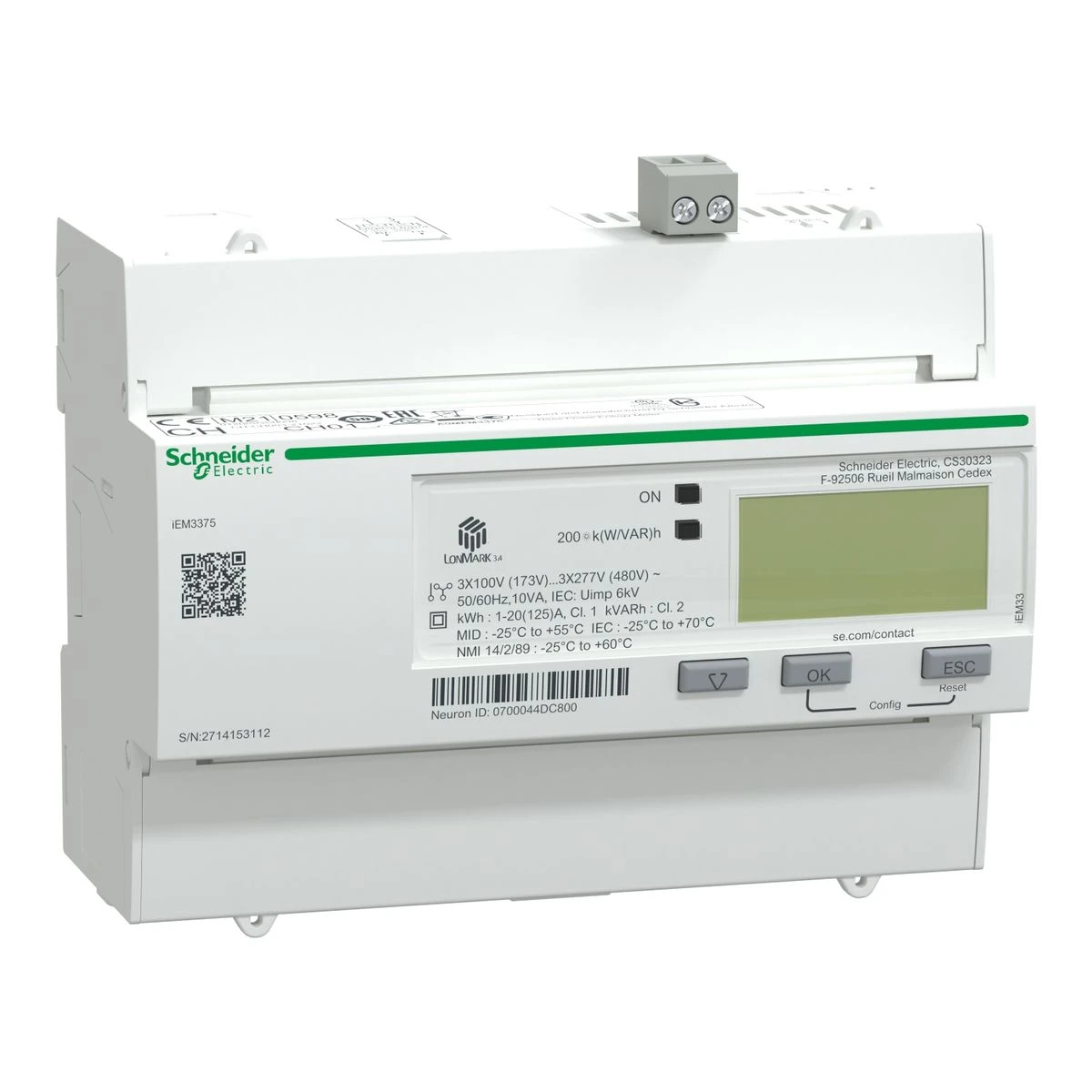

A9MEM3375 - IEM3375 energy meter 125 A LON 1 digital I multitariff MID - Schneider Electric

Expected in 2-4 weeks

453,02 € excl. VAT

552,69 € incl. VAT

Text About:

IEM3375 energy meter 125 A LON 1 digital I multitariff MID - Schneider Electric

In cart

552,69 €

SPECIFICATIONS

Main

Device short name iEM3375

Maximum value measured 99999999.9 kWh

Measurement current 0…125 A

Range Acti9

Rated voltage 100…277 V
173…480 V

Complementary

9 mm pitches 14

[in] rated current 125 A

Product certifications CE conforming to IEC 61010-1 (safety)
CE conforming to EN 61557-12 (power monitor)
CE conforming to EN/IEC 61326-1 (EMC)
UKCA conforming to BS EN 61010-1 (safety)
UKCA conforming to BS EN 61557-12 (power monitor)
UKCA conforming to BS EN 61326-1 (EMC)
CULus conforming to UL 61010-1 (safety)
CULus conforming to EN 61010-1 (safety)
EAC conforming to EN 50470-3 (sub-meter)
RCM conforming to EN 62052 (sub-meter)
KZ conforming to EN 50470-3 (sub-meter)
METAS conforming to EN 50470-1 (sub-meter)
MID conforming to EN 50470-3 (sub-meter)
MID conforming to EN 50470-1 (sub-meter)
NMI conforming to NMI M 6-1

Communication port support Screw terminal block: LonWorks TP/FT-10

Handle front plate colour 103.2 mm

Product or component type Energy meter

accuracy class Class 1 active energy conforming to IEC 62053-21
Class 1 active energy conforming to IEC 61557-12
Class B active energy conforming to EN 50470-3

Connections - terminals Screw terminals 50 mm² cable(s)

Device application Multi-tariff
Sub billing
Partial meter

type of measurement Active and reactive energy
Active and reactive power
Current
Voltage

width (w) 126 mm

network frequency 50 Hz
60 Hz

Colour White

input type Direct input

Local signalling Green indicator light: power ON
Yellow flashing LED: accuracy checking
alarm: overload

Mounting mode Clip-on

communication port protocol LON, insulation 3750 V

Display type LCD display

Mounting support DIN rail

depth 69.3 mm

Number of inputs 1 digital 0...5 V/11...40 V 24 V DC

Pollution degree 2

sampling rate 32 samples/cycle

Technology type Electronic

Metering type Active, reactive, apparent energy (signed, four quadrant)

Poles description 3P + N
3P
1P + N

Tariff input Tariff (4)

Environment

Ambient air temp for storage/transportation -40…85 °C

ip degree of protection IP40 front panel: conforming to IEC 60529
IP20 body: conforming to IEC 60529

operating altitude < 2000 m

Range of product Acti9 iEM3000

ambient air temperature for operation -25…55 °C - MID
-25…60 °C - NMI
-25…60 °C - IEC

overvoltage category III

standards BS EN 61557-12
IEC 61557-12
EN 61557-12
BS EN 61326-1
IEC 61326-1
EN 61326-1
BS EN 62052-11
IEC 62052-11
EN 62052-11
BS EN 62053-21
IEC 62053-21
EN 62053-21
BS EN 62052-23
IEC 62053-23
EN 62052-23
BS EN 62052-31
IEC 62052-31
EN 62052-31
BS EN 61010-1
EN 61010-1
IEC 61010-1
UL 61010-1
BS EN 61010-2-30
IEC 61010-2-30
EN 61010-2-30
UL 61010-2-30
BS EN 50470-3
EN 50470-3
BS EN 50470-1
EN 50470-1
ANSI C12.16

relative humidity 5…95 % at 50 °C
