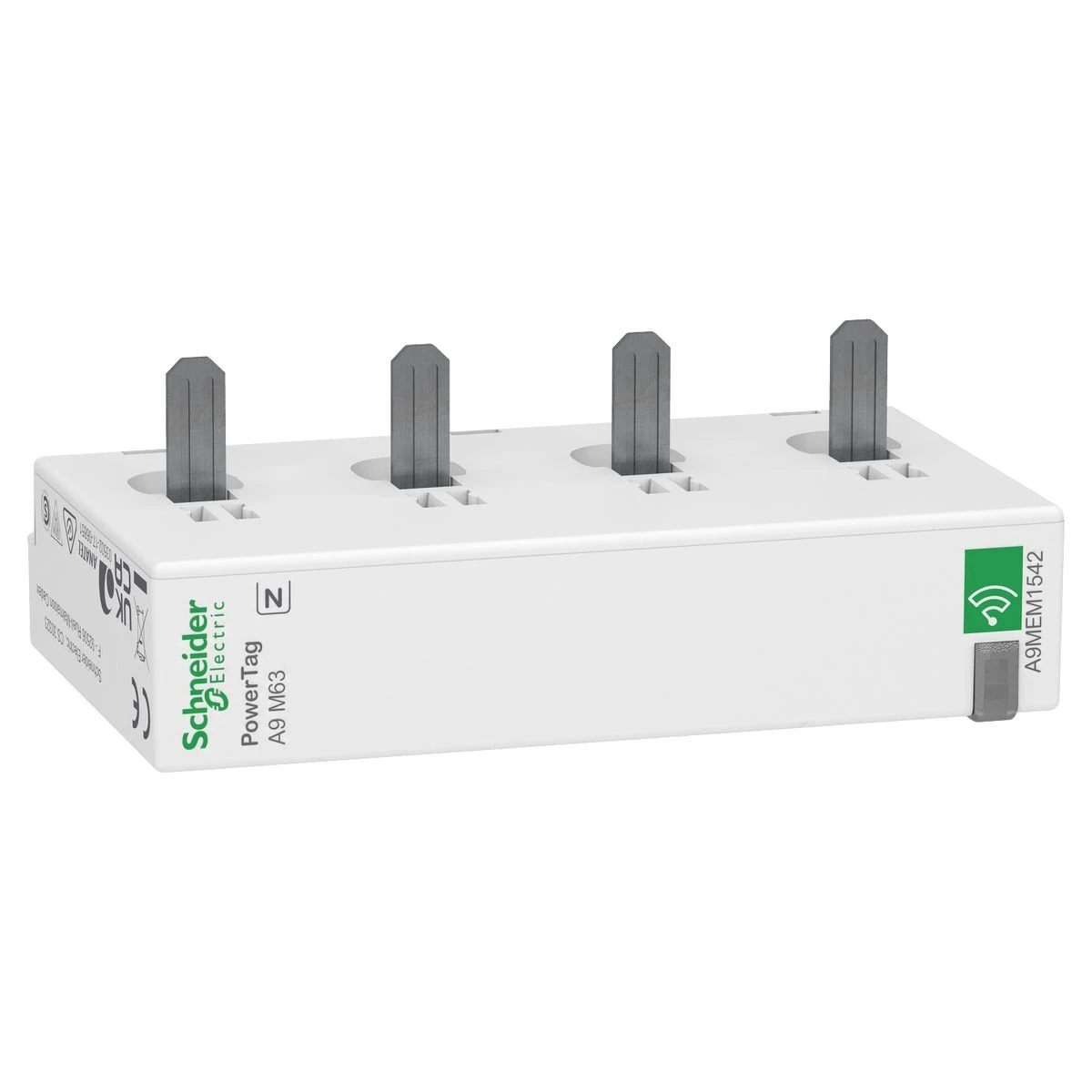

A9MEM1542 - Energy sensor, PowerTag Monoconnect 63A 3P+N bottom position - Schneider Electric

Expected in 2-4 weeks

132,62 € excl. VAT

161,79 € incl. VAT

Text About:

Energy sensor, PowerTag Monoconnect 63A 3P+N bottom position - Schneider Electric

In cart

161,79 €

SPECIFICATIONS

Main

Concentrator compatibility Acti9 Smartlink SI B
Acti9 Smartlink SI D
Acti9 PowerTag Link C
Acti9 PowerTag Link
Acti9 PowerTag Link HD
Wiser IP module
EcoStruxure Panel Server Universal
EcoStruxure Panel Server Advanced
PrismaSet Active

product specific application Circuit monitoring
Overload alarm
Load monitoring
Cost allocation
Energy management

Event management Voltage loss with measured current at voltage loss

Product Name PowerTag A9 M63

Starting current 40 mA

poles 3P + N

Complementary

[ib] basic current 10 A

range compatibility Acti 9 Acti9 iKQE RCBO
Multi 9 Multi9 C60
Multi 9 Multi9 ID
Multi 9 Multi9 C32N
Multi 9 Multi9 C65
Acti 9 Acti9 iID
Acti 9 Acti9 iID K
Acti 9 Acti9 iK60
Acti 9 Acti9 iKQ
Acti 9 Acti9 K60
Acti 9 Acti9 Reflex iC60
Acti 9 Acti9 iC65
Acti 9 Acti9 DT60
Acti 9 Acti9 iC60 single terminal

Cable cross section 1 rigid cable 1.5…16 mm²
2 stranded cable 1.5…2.5 mm²
2 rigid cable 1.5…2.5 mm²
1 stranded cable 1.5…16 mm²

Handle front plate colour 16.5 mm

Product or component type Energy sensor

accuracy class Class 1 current conforming to IEC 61557-12
Class 0.5 voltage conforming to IEC 61557-12
Class 1 active power conforming to IEC 61557-12
Class 1 active energy conforming to IEC 61557-12
Class 1 power factor conforming to IEC 61557-12

mounting location Bottom

type of measurement Voltage
Power factor
Active power
Active energy
Current

Electrical connection (voltage sensing & power supply) Connector tooth

Emission power 10 mW

width (w) 72 mm

maximum current [imax] 63 A

network frequency 50 Hz
60 Hz

Colour White (RAL 9003)

Ik degree of protection IK05

Mounting mode By screws (terminals)

Net weight 35 g

Saturation current 130 A

Maximum power consumption 2 VA

Mounting support On circuit breaker

depth 43 mm

Transmission support medium Radio frequency 2.4…2.4835 GHz conforming to IEEE 802.15.4

Pollution degree 3

Product destination Switchboard

supply voltage 220...240 V AC, +/- 20 %, between phase and neutral
380...415 V AC, +/- 20 %, between phases

Environment

Ambient air temp for storage/transportation -40…85 °C

Directives 2014/53/EU - radio equipment directive

ip degree of protection IP20 conforming to IEC 60529

operating altitude 0...2000 m

Range of product PowerLogic

ambient air temperature for operation -25…60 °C

electromagnetic compatibility Industrial electromagnetic environment conforming to IEC 61326-1
Radiated EMC conforming to ETSI EN 301 489-17
Electromagnetic emission conforming to IEC 62311

Environmental characteristics Dustproof class 3S3 conforming to IEC 60721-3-3
Salt mist class 3C2 conforming to IEC 60721-3-3
Indoor use

overvoltage category III conforming to IEC 61010-1

standards IEC 61557-12
IEC 61010-1
IEC 61010-2-030
IEC 61326-1
ETSI EN 300 328
ETSI EN 301 487-1

measurement category Category III conforming to IEC 61010-2-030

quality labels CE

relative humidity 0…95 % at 45 °C conforming to IEC 60721-3-3

vibration resistance 3M4 conforming to IEC 60721-3-3
