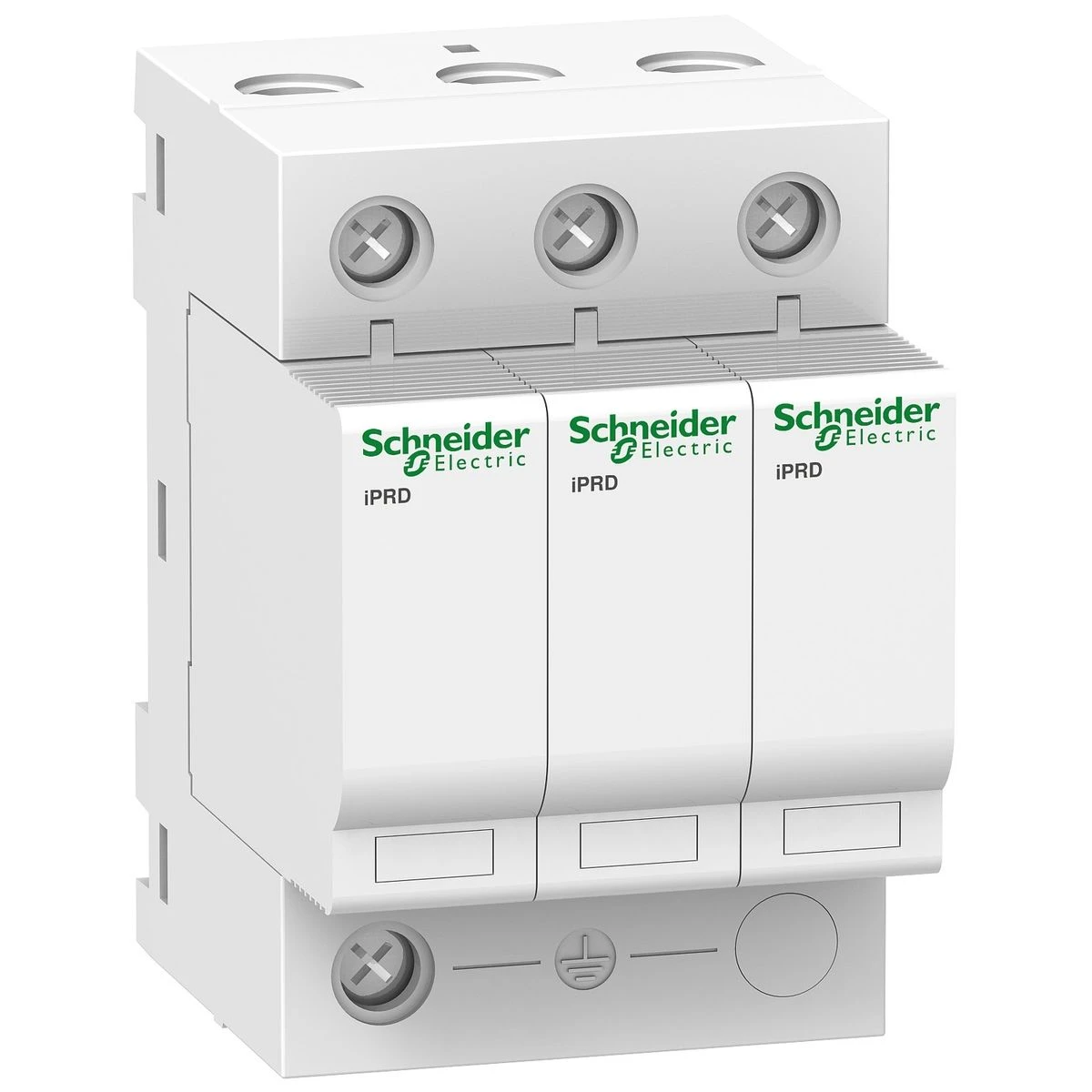

A9L16445 - IPRD40r modular surge arrester 3 poles 340V with remote transfer - Schneider Electric

Expected in 2-4 weeks
A9L16445 - IPRD40r modular surge arrester 3 poles 340V with remote transfer - Schneider Electric - IPRD40r modular surge arrester 3 poles 340V with remote transfer - Schneider Electric - 0
A9L16445 - IPRD40r modular surge arrester 3 poles 340V with remote transfer - Schneider Electric
150,69 € excl. VAT
186,85 € incl. VAT
Text About:
IPRD40r modular surge arrester 3 poles 340V with remote transfer - Schneider Electric
186,85 €
SPECIFICATIONS
Main
Device short name iPRD
Signalling circuit voltage 0.25 A/250 V AC 50/60 Hz
Surge arrester type Electrical distribution network
Product Name Acti9 iPRD
Remote signalling With
Earthing system TN-C
Complementary
9 mm pitches 6
[uc] maximum continuous operating voltage Common mode: 340 V L/PE
[ue] rated operational voltage 230 V AC (+/- 10 %) at 50/60 Hz
400 V AC (+/- 10 %) at 50/60 Hz
[i total] discharge current 120 kA
[imax] maximum discharge current Common mode: 40 kA L/PE
Product certifications CE
[in] nominal discharge current Common mode: 15 kA (L/PE)
Common mode: 15 kA (N/PE)
Handle front plate colour 81 mm
Product or component type Surge arrester with pluggable cartridge
tightening torque 2.5 N.m
Connections - terminals Tunnel type terminal (downside) 2.5…35 mm²
Tunnel type terminal (upside) 2.5…35 mm²
Device application Distribution
width (w) 54 mm
Colour White (RAL 9003)
Ik degree of protection IK03 conforming to IEC 62262
Maximum [up] voltage protection level Common mode <1.4 kV type 2 L/PE
Mounting mode Clip-on (DIN rail)
Disconnector device type Associated circuit breaker IC60N 40 A curve C - Icu 10 kA
Associated circuit breaker iC60H 40 A curve C - Icu 15 kA
Associated circuit breaker iC60L 40 A curve C - Icu 25 kA
depth 69 mm
Signal contacts composition 1 SD (1 C/O)
Surge arrester class type Type 2
Surge arrester technology MOV
Poles description 3P
Environment
Ambient air temp for storage/transportation -40…85 °C
operating altitude 2000 m
Range of product Acti9
ambient air temperature for operation -25…60 °C
standards EN 61643-11
IEC 61643-11
quality labels KEMA-KEUR
OVE
NF
relative humidity 5…90 %
About this product

The A9L16445 - IPRD40r modular surge arrester 3 poles 340V with remote transfer is conceived to match the wants of industry experts, such as electrical installers, electric engineers, maintenance service providers, and Original Equipment manufacturers. A9L16445 delivers remarkable integrity and asset for designers in the automation and control industry. This IPRD40r modular surge arrester 3 poles 340V with remote transfer and other iPRD from Schneider Electric are in stock at the most favorable cost and shipment duration through baltelec.eu, a well-known dealer meeting the needs of professionals in their collection needs.

Technicians who have used Schneider Electric iPRD have regularly praised the creator's soundness. It has been noted that the notable capability of A9L16445 - IPRD40r modular surge arrester 3 poles 340V with remote transfer extends to a variety of operations. Its premium properties make it ideal solution for assorted uses. Your developed solution will excel in quality, energy-efficiency and price.

Our professionals concentrates in addressing industrial and tertiary professionals’ needs. We get the distinct needs and requirements of our patrons in the sector. By cooperating with our team, our partners access access to the optimal price and supply timeline of the top-of-the-line products like A9L16445 - IPRD40r modular surge arrester 3 poles 340V with remote transfer from Schneider Electric at a value-for-money price. Account holders take pleasure in added discounts and premium support.

Make a move and order A9L16445 - IPRD40r modular surge arrester 3 poles 340V with remote transfer at our certified and user-friendly internet shop. Don't delay in making this wise resolution that affirms the finest quality and complies with the personalized expectations of customers like your group.

Should you have any worries or concerns about A9L16445 - IPRD40r modular surge arrester 3 poles 340V with remote transfer or any other Schneider Electric products, drop us a line or refer to our Information center section below. We have collected answers to common uncertainties to support you further in making an enlightened decision about industrial and tertiary electrical components.

Remember, A9L16445 - IPRD40r modular surge arrester 3 poles 340V with remote transfer from Schneider Electric is dependable, economical, and outstanding to its rivals in the iPRD category. Make it a part of your apparatus instantly. Snap up at BALTELEC, your dependable vendor for all your iPRD.

In our Baltelec.eu internet store you will encounter IPRD40r modular surge arrester 3 poles 340V with remote transfer - A9L16445 worth 183.84 €, which will be a reliable and fashionable solution for your wishes. This article is engineered by the Schneider Electric brand using the modern technologies and aligns with the pinnacle standards of security and productivity. We provide products from the iPRD category that integrate durability and efficacy, which is an excellent possibility for various roles. Not minding of whether you crave hardware for small fabrication or for expert industrial purpose, IPRD40r modular surge arrester 3 poles 340V with remote transfer will be a safe partner in your occupation.

Baltelec aims to make the purchasing process as simple and fast as accomplishable for our shoppers. We offer detailed summaries and high-quality pictures of IPRD40r modular surge arrester 3 poles 340V with remote transfer so that you can make an knowledgeable choice. A team of virtuosos is always ready to help you with any inquiries in the iPRD section relevant to the electing and use of articles. We are trusting that IPRD40r modular surge arrester 3 poles 340V with remote transfer will meet your criteria and become an imperative element of your device for just 183.84 €.

Frequently Asked Questions about A9L16445 - IPRD40r modular surge arrester 3 poles 340V with remote transfer:
