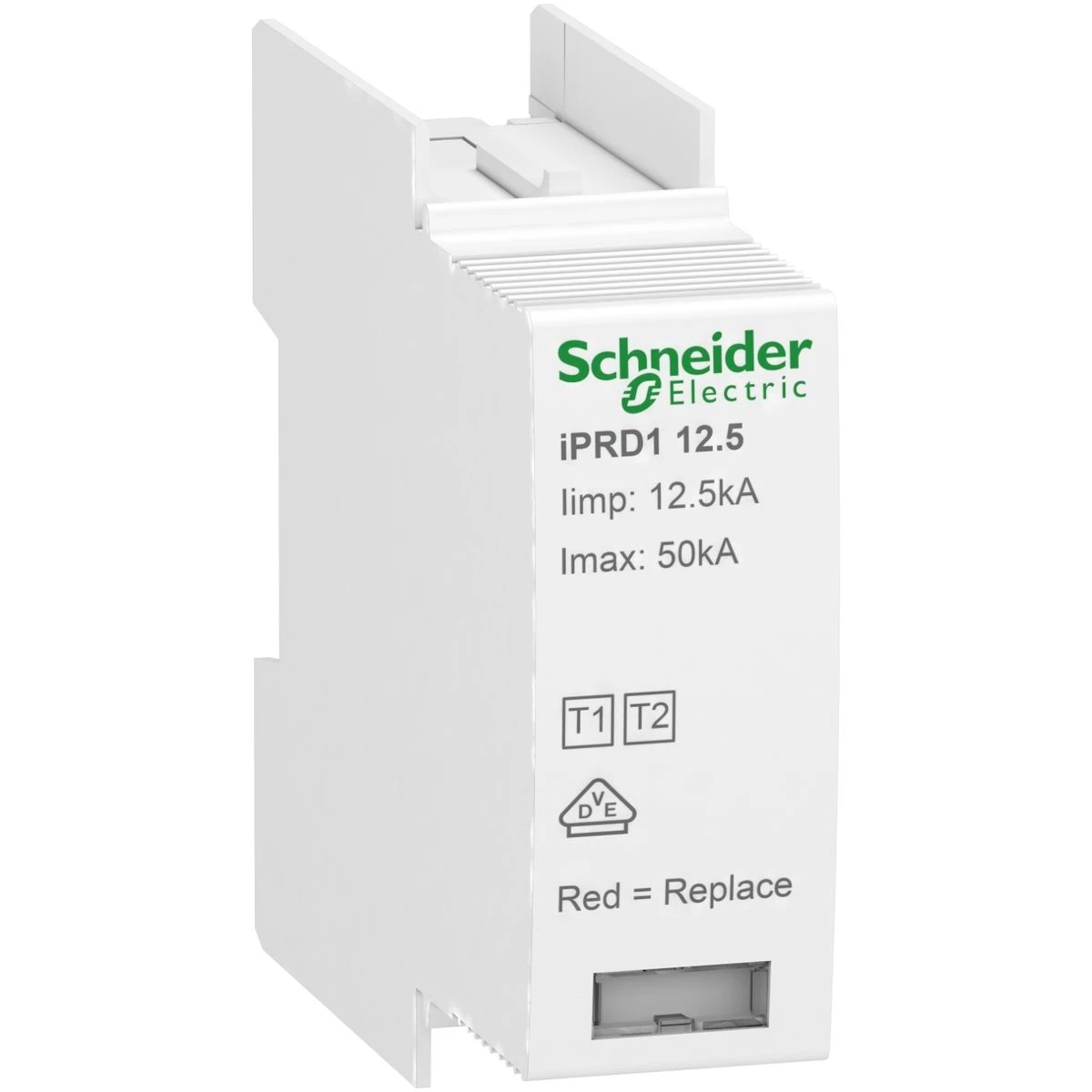

A9L16082 - Cartridge for surge arrester, Acti9 iPRD1 C12.5r L/PE - Schneider Electric

Expected in 2-4 weeks

58,25 €

Text About:

Cartridge for surge arrester, Acti9 iPRD1 C12.5r L/PE - Schneider Electric

In cart

58,25 €

SPECIFICATIONS

Main

Surge arrester type Electrical distribution network

Earthing system TN-C
TT
TN-S

Complementary

[uc] maximum continuous operating voltage 350 V

[ue] rated operational voltage 230 V AC 50...60 Hz

range compatibility Acti9 (Acti9 iPRD1) surge arrester

response time < 25 ns

Handle front plate colour 57 mm

Product or component type Cartridge

Material PBT (polybutylene terephthalate)

width (w) 18 mm

Colour White (RAL 9003)

Local signalling Mechanical indicator (white and red)

Maximum [up] voltage protection level <1.5 kV type 1 + 2

Mounting mode Plug-in

Net weight 112 g

Mounting support Into SPD module

depth 56 mm

Nominal discharge current 20 kA

Surge arrester class type Type 1 + 2

Surge arrester technology MOV

Environment

Ambient air temp for storage/transportation -40…80 °C

ip degree of protection IP20 front face:

operating altitude 0...2000 m

Range of product Acti9

ambient air temperature for operation -25…60 °C

standards EN 61643-11
IEC 61643-11

relative humidity 25…90 %
