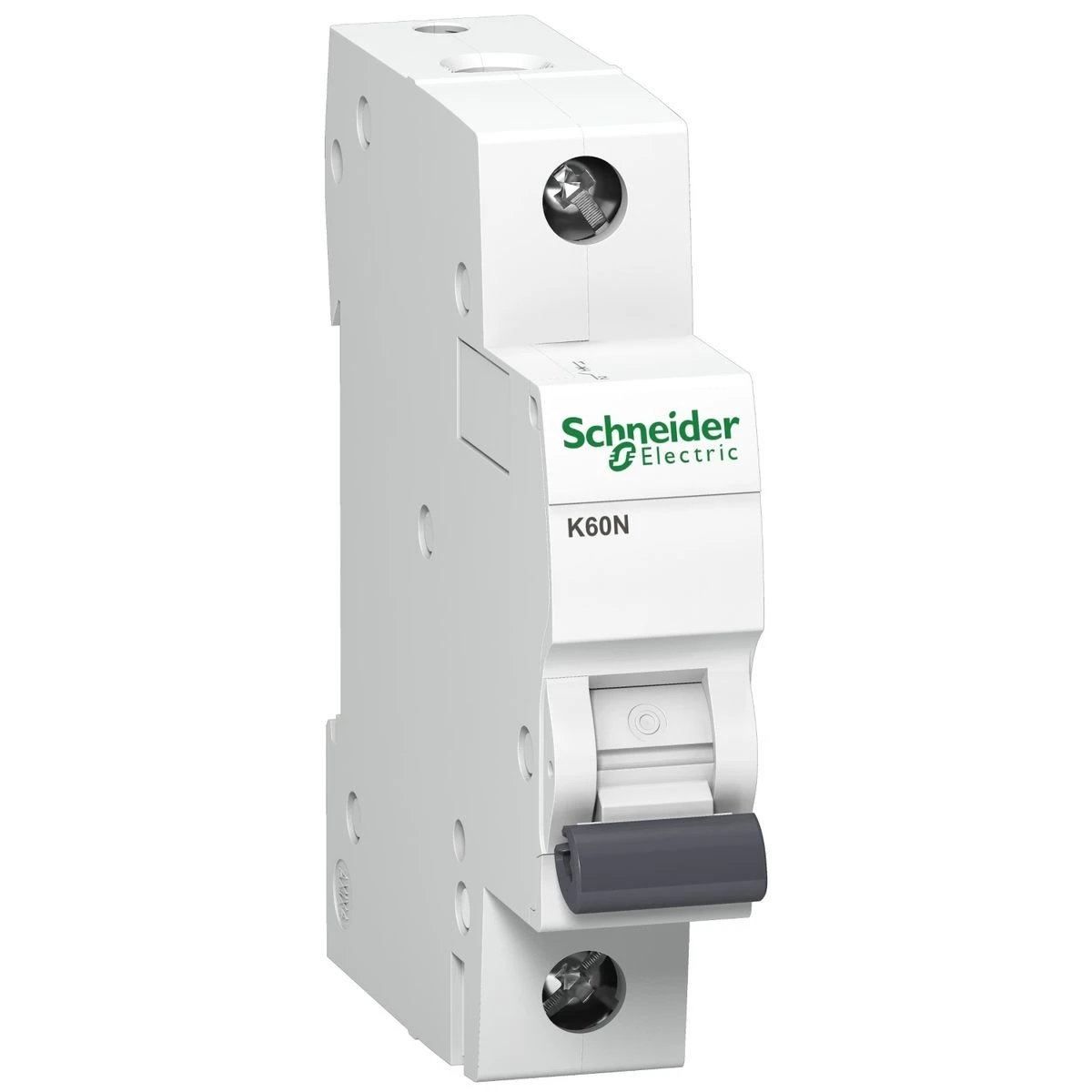

A9K02132 - Miniature circuit breaker (MCB), Acti9 K60N, 1P, 32A, C curve, 6000A (IEC/EN 60898-1) - Schneider Electric

Expected in 2-4 weeks

3,06 € excl. VAT

3,73 € incl. VAT

Text About:

Miniature circuit breaker (MCB), Acti9 K60N, 1P, 32A, C curve, 6000A (IEC/EN 60898-1) - Schneider Electric

In cart

3,73 €

SPECIFICATIONS

Additional Information

curve C

Main

Device short name K60N

Range Acti9

Number of protected poles 1

Product Name Acti9 K60

Trip unit technology Thermal-magnetic

[ui] rated insulation voltage 440 V AC 50/60 Hz conforming to EN/IEC 60898-1

Complementary

9 mm pitches 2

[in] rated current 32 A

[ics] rated service breaking capacity 6000 A 100 % conforming to EN/IEC 60898-1 - 230 V AC 50/60 Hz

Control type Toggle

Product certifications OVE
VDE

Handle front plate colour 81 mm

Product or component type Miniature circuit-breaker

tightening torque 3.5 N.m top or bottom

[uimp] rated impulse withstand voltage 4 kV conforming to EN/IEC 60898-1

Comb busbar and distribution block compatibility Downside: biconnect

Connections - terminals Tunnel type terminals (downstream) 0.5…35 mm² rigid
Tunnel type terminals (upstream) 0.5…35 mm² rigid
Tunnel type terminals (downstream) 0.5…25 mm² flexible
Tunnel type terminals (upstream) 0.5…25 mm² flexible

Contact position indication No

Device application Distribution

width (w) 18 mm

network frequency 50/60 Hz

Colour White

Local signalling Without

Mounting mode Fixed

Net weight 0.12 kg

wire stripping length 14 mm for top or bottom connection

Earth-leakage protection Without

Mounting support DIN rail

depth 70 mm

mechanical durability 20000 cycles

electrical durability 10000 cycles

magnetic trip limit 5...10 x In

Network type AC

Pollution degree 2 conforming to IEC 60898-1
2 conforming to EN 60898-1

Limitation class 3 conforming to EN/IEC 60898-1

Suitability for isolation Yes conforming to EN/IEC 60898-1

Poles description 1P

Utilisation category Category A conforming to IEC 60947-2

Environment

Ambient air temp for storage/transportation -40…70 °C

ip degree of protection IP20 conforming to IEC 60529

operating altitude 0...2000 m

ambient air temperature for operation -25…70 °C

overvoltage category II

standards EN/IEC 60898-1

Tropicalisation 2 conforming to IEC 60068-1

relative humidity 95 % at 55 °C
