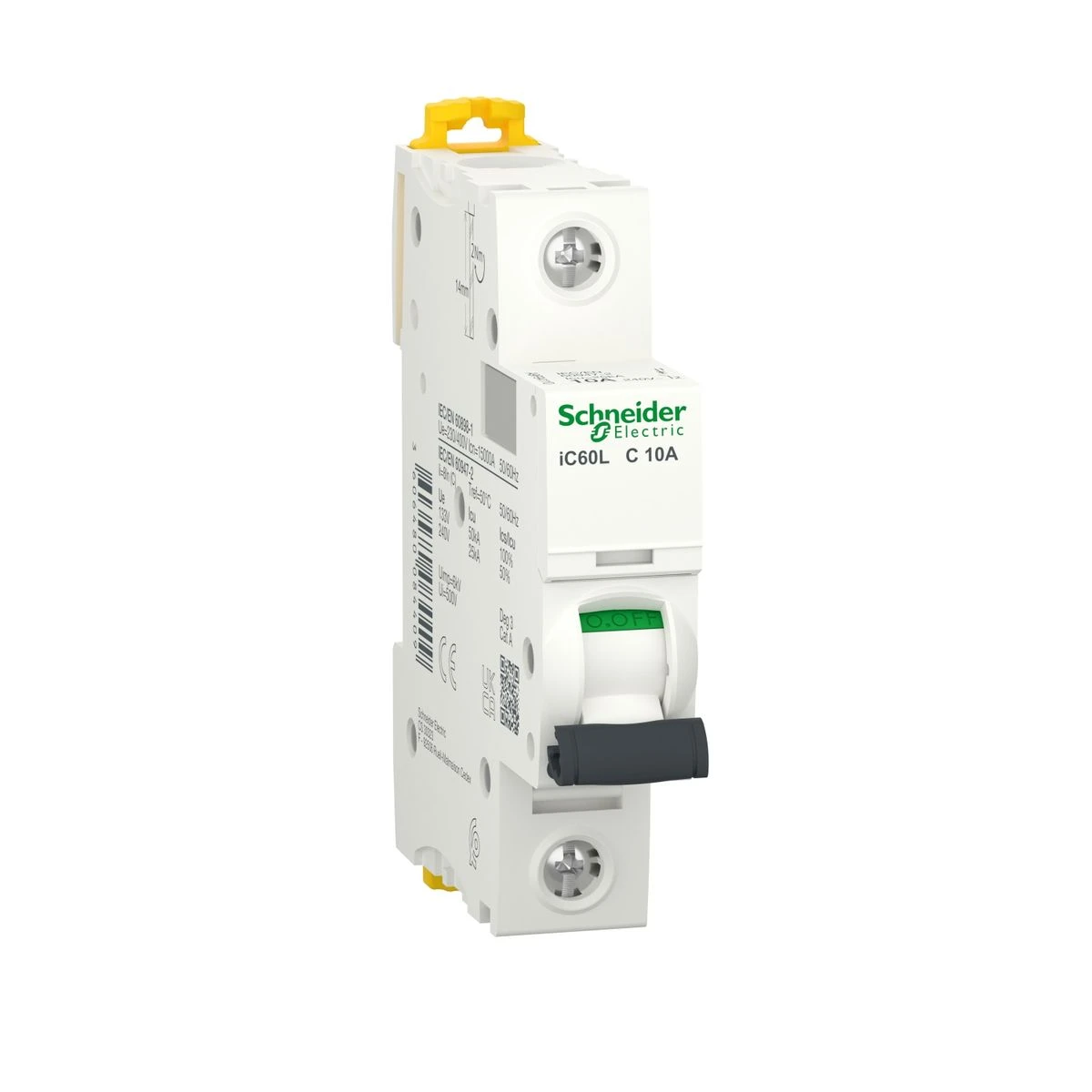

A9F94110 - Miniature circuit breaker (MCB), Acti9 iC60L, 1P, 10A, C curve, 15000A (IEC/EN 60898-1), 25kA (IEC/EN 60947-2) - Schneider Electric

In stock EAN: 3606480084409
A9F94110 - Miniature circuit breaker (MCB), Acti9 iC60L, 1P, 10A, C curve, 15000A (IEC/EN 60898-1), 25kA (IEC/EN 60947-2) - Schneider Electric - Miniature circuit breaker (MCB), Acti9 iC60L, 1P, 10A, C curve, 15000A (IEC/EN 60898-1), 25kA (IEC/EN 60947-2) - Schneider Electric - 0
EAN: 3606480084409
A9F94110 - Miniature circuit breaker (MCB), Acti9 iC60L, 1P, 10A, C curve, 15000A (IEC/EN 60898-1), 25kA (IEC/EN 60947-2) - Schneider Electric
42,30 € excl. VAT
52,45 € incl. VAT
Text About:
Miniature circuit breaker (MCB), Acti9 iC60L, 1P, 10A, C curve, 15000A (IEC/EN 60898-1), 25kA (IEC/EN 60947-2) - Schneider Electric
52,45 €
SPECIFICATIONS
Additional Information
curve C
Main
Range Acti9
sectioning ability Oui se conformer à EN 60898-1
Oui se conformer à EN 60947-2
Oui se conformer à CEI 60898-1
Oui se conformer à CEI 60947-2
job category Catégorie A se conformer à EN 60947-2
Catégorie A se conformer à CEI 60947-2
name of the device iC60L
type of product or equipment Disjoncteur miniature
Product Name Acti9 iC60
[ui] rated insulation voltage 500 V CA 50/60 Hz se conformer à EN 60947-2
500 V CA 50/60 Hz se conformer à CEI 60947-2
number of poles protected 1
type of trigger Thermique-magnétique
Complementary
9 mm pitches 2
application Distribution
[ics] rated service breaking capacity 12,5 kA 50 % se conformer à EN 60947-2 - 220...240 V CA 50/60 Hz
12,5 kA 50 % se conformer à CEI 60947-2 - 220...240 V CA 50/60 Hz
35 kA 50 % se conformer à EN 60947-2 - 12...60 V CA 50/60 Hz
35 kA 50 % se conformer à CEI 60947-2 - 12...60 V CA 50/60 Hz
25 kA 50 % se conformer à EN 60947-2 - 100…133 V CA 50/60 Hz
25 kA 50 % se conformer à CEI 60947-2 - 100…133 V CA 50/60 Hz
7500 A 50 % se conformer à EN 60898-1 - 230 V CA 50/60 Hz
7500 A 50 % se conformer à CEI 60898-1 - 230 V CA 50/60 Hz
20 kA 100 % se conformer à EN 60947-2 - 72 V CC
20 kA 100 % se conformer à CEI 60947-2 - 72 V CC
25 kA 100 % se conformer à EN 60947-2 - 12...60 V CC
25 kA 100 % se conformer à CEI 60947-2 - 12...60 V CC
Handle front plate colour 85 mm
tightening torque 2 N.m haut ou bas
[uimp] rated impulse withstand voltage 6 kV se conformer à EN 60947-2
6 kV se conformer à CEI 60947-2
compatibility of distributors, combs, busbars Haut ou bas : oui
in rated operational current 10 A
limiting class 3 se conformer à EN 60898-1
3 se conformer à CEI 60898-1
product weight 0,215 kg
fully apparent cut Oui
mode d'installation Fixe
electrical life 10000 cycle
connection mode Terminal simple (haut ou bas) 1…25 mm² rigide
Terminal simple (haut ou bas) 1…16 mm² souple
magnetic trigger 8 x In +/- 20 %
mechanical endurance 20000 cycle
width (w) 18 mm
network frequency 50/60 Hz
Colour Blanc
voltage indication Signalisation de déclenchement
wire stripping length 14 mm pour haut ou bas connexion
depth 78,5 mm
mounting bracket Rail DIN
Network type CA
CC
differential protection Sans
order type Par maneton
Poles description 1P
Environment
degree of pollution 3 se conformer à EN 60947-2
3 se conformer à CEI 60947-2
ip degree of protection IP20 se conformer à CEI 60529
IP20 se conformer à EN 60529
operating altitude 0...2000 m
operating ambient temperature -35…70 °C
overvoltage category IV
standards CEI 60898-1
EN 60947-2
EN 60898-1
CEI 60947-2
relative humidity 95 % à 55 °C
storage room temperature -40…85 °C
tropicalization 2 se conformer à CEI 60068-1
About this product

The A9F94110 - Miniature circuit breaker (MCB), Acti9 iC60L, 1P, 10A, C curve, 15000A (IEC/EN 60898-1), 25kA (IEC/EN 60947-2) is conceived to fulfill the prerequisites of trade professionals, such as panel manufacturers, wiring specialists, upkeep firms, and industry fabricators. A9F94110 presents superior reliability and beneficence for contractors in the power engineering industry. This Miniature circuit breaker (MCB), Acti9 iC60L, 1P, 10A, C curve, 15000A (IEC/EN 60898-1), 25kA (IEC/EN 60947-2) and other iC60 from Schneider Electric are on offer at the finest pricing and delivery schedule through BALTELEC online store, a credible dealer fulfilling the needs of tradesmen in their provision needs.

Contractors who have adopted Schneider Electric iC60 have repeatedly complimented the producer's dependability. It has been highlighted that the notable workmanship of A9F94110 - Miniature circuit breaker (MCB), Acti9 iC60L, 1P, 10A, C curve, 15000A (IEC/EN 60898-1), 25kA (IEC/EN 60947-2) extends to a array of purposes. Its ideal qualities make it optimal to meet diverse demands, promoting success in your industrial, tertiary, and automation efforts.

Our team concentrates in accommodating industrial and tertiary professionals’ needs. We comprehend the customized expectations and demands of our clients in the sector. By collaborating with Baltelec.eu, your enterprise acquire access to the finest fees and delivery schedule of the top-of-the-line products like A9F94110 - Miniature circuit breaker (MCB), Acti9 iC60L, 1P, 10A, C curve, 15000A (IEC/EN 60898-1), 25kA (IEC/EN 60947-2) from Schneider Electric at cost-effective price. Registered customers enjoy additional savings and expedited requests handling.

Make a move and procure A9F94110 - Miniature circuit breaker (MCB), Acti9 iC60L, 1P, 10A, C curve, 15000A (IEC/EN 60898-1), 25kA (IEC/EN 60947-2) at our certified and hassle-free website. Don't delay in making this wise action that affirms the superior quality and addresses the personalized standards of customers like your business.

In the event of any concerns or concerns about A9F94110 - Miniature circuit breaker (MCB), Acti9 iC60L, 1P, 10A, C curve, 15000A (IEC/EN 60898-1), 25kA (IEC/EN 60947-2) or any other Schneider Electric products, send us a note or refer to our Assistance center section below. We have brought together answers to habitual questions to facilitate you further in making an enlightened decision about industrial and tertiary electrical components.

Remember, A9F94110 - Miniature circuit breaker (MCB), Acti9 iC60L, 1P, 10A, C curve, 15000A (IEC/EN 60898-1), 25kA (IEC/EN 60947-2) from Schneider Electric is reliable, inexpensive, and first-rate to its rivals in the iC60 category. Feel free to make it a part of your solution instantly. Procure at BaltElec, your respected merchant for all your iC60.

In our Baltelec.eu e-commerce store you will find Miniature circuit breaker (MCB), Acti9 iC60L, 1P, 10A, C curve, 15000A (IEC/EN 60898-1), 25kA (IEC/EN 60947-2) - A9F94110 worth 51.61 €, which will be a constant and state-of-the-art solution for your needs. This thing is constructed by the Schneider Electric brand using the up-to-the-minute technologies and meets the highest standards of well-being and efficacy. We deliver products from the iC60 category that mix robustness and utility, which is an superior decision for various roles. Irrespective of whether you want equipment for small formation or for specialized industrial exertion, Miniature circuit breaker (MCB), Acti9 iC60L, 1P, 10A, C curve, 15000A (IEC/EN 60898-1), 25kA (IEC/EN 60947-2) will be a secure partner in your task.

Baltelec aims to make the purchasing process as straightforward and fast as achievable for our shoppers. We offer detailed explanations and high-quality visuals of Miniature circuit breaker (MCB), Acti9 iC60L, 1P, 10A, C curve, 15000A (IEC/EN 60898-1), 25kA (IEC/EN 60947-2) so that you can make an educated choice. A team of masters is always ready to help you with any doubts in the iC60 section linked to the choosing and use of supplies. We are guaranteed that Miniature circuit breaker (MCB), Acti9 iC60L, 1P, 10A, C curve, 15000A (IEC/EN 60898-1), 25kA (IEC/EN 60947-2) will meet your hopes and become an essential element of your device for just 51.61 €.
