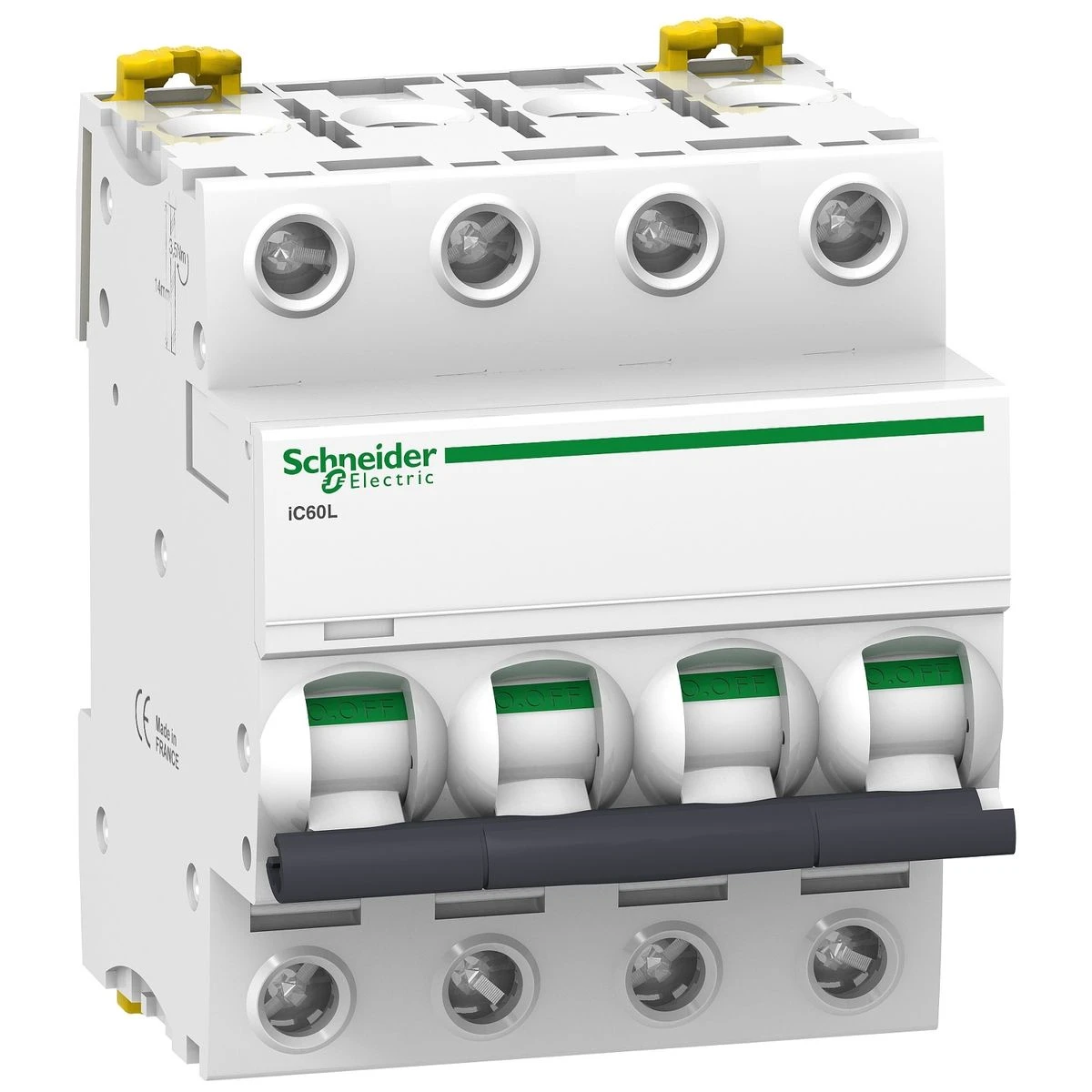

A9F92450 - Miniature circuit-breaker, Acti9 iC60L, 4P, 50 A, Z curve, 15000 A (IEC 60898-1), 15 kA (IEC 60947-2) - Schneider Electric

Pending restock

163,91 € excl. VAT

203,25 € incl. VAT

Text About:

Miniature circuit-breaker, Acti9 iC60L, 4P, 50 A, Z curve, 15000 A (IEC 60898-1), 15 kA (IEC 60947-2) - Schneider Electric

In cart

203,25 €

SPECIFICATIONS

Additional Information

curve Z

Main

Device short name iC60L

Range Acti9

Number of protected poles 4

Product Name Acti9 iC60

Trip unit technology Thermal-magnetic

[ui] rated insulation voltage 500 V AC 50/60 Hz conforming to EN 60947-2
500 V AC 50/60 Hz conforming to IEC 60947-2

Complementary

9 mm pitches 8

[in] rated current 50 A

[ics] rated service breaking capacity 15 kA 50 % conforming to EN 60947-2 - 220...240 V AC 50/60 Hz
7.5 kA 50 % conforming to EN 60947-2 - 380...415 V AC 50/60 Hz
5 kA 50 % conforming to EN 60947-2 - 440 V AC 50/60 Hz
15 kA 50 % conforming to IEC 60947-2 - 220...240 V AC 50/60 Hz
7.5 kA 50 % conforming to IEC 60947-2 - 380...415 V AC 50/60 Hz
5 kA 50 % conforming to IEC 60947-2 - 440 V AC 50/60 Hz
35 kA 50 % conforming to EN 60947-2 - 12...133 V AC 50/60 Hz
35 kA 50 % conforming to IEC 60947-2 - 12...133 V AC 50/60 Hz
20 kA 100 % conforming to EN 60947-2 - 180...250 V DC
20 kA 100 % conforming to IEC 60947-2 - 180...250 V DC

Control type Toggle

Handle front plate colour 85 mm

Product or component type Miniature circuit-breaker

tightening torque 3.5 N.m top or bottom

[uimp] rated impulse withstand voltage 6 kV conforming to EN 60947-2
6 kV conforming to IEC 60947-2

Comb busbar and distribution block compatibility Top or bottom: YES

Connections - terminals Single terminal (top or bottom) 1…35 mm² rigid
Single terminal (top or bottom) 1…25 mm² flexible

Contact position indication Yes

Device application Distribution

width (w) 72 mm

network frequency 50/60 Hz

Colour White

Local signalling Trip indicator

Mounting mode Fixed

Net weight 0.5 kg

wire stripping length 14 mm for top or bottom connection

Earth-leakage protection Separate block

Mounting support DIN rail

depth 78.5 mm

mechanical durability 20000 cycles

electrical durability 10000 cycles

magnetic trip limit 3 x In +/- 20 %

Network type AC
DC

Pollution degree 3 conforming to EN 60947-2
3 conforming to IEC 60947-2

Limitation class 3 conforming to EN 60898-1
3 conforming to IEC 60898-1

Suitability for isolation Yes conforming to EN 60947-2
Yes conforming to IEC 60947-2

Poles description 4P

Utilisation category Category A conforming to EN 60947-2
Category A conforming to IEC 60947-2

Environment

Ambient air temp for storage/transportation -40…85 °C

ip degree of protection IP20 conforming to IEC 60529
IP20 conforming to EN 60529

operating altitude 0...2000 m

ambient air temperature for operation -35…70 °C

overvoltage category IV

standards IEC 60947-2
EN 60947-2

Tropicalisation 2 conforming to IEC 60068-1

relative humidity 95 % at 55 °C
