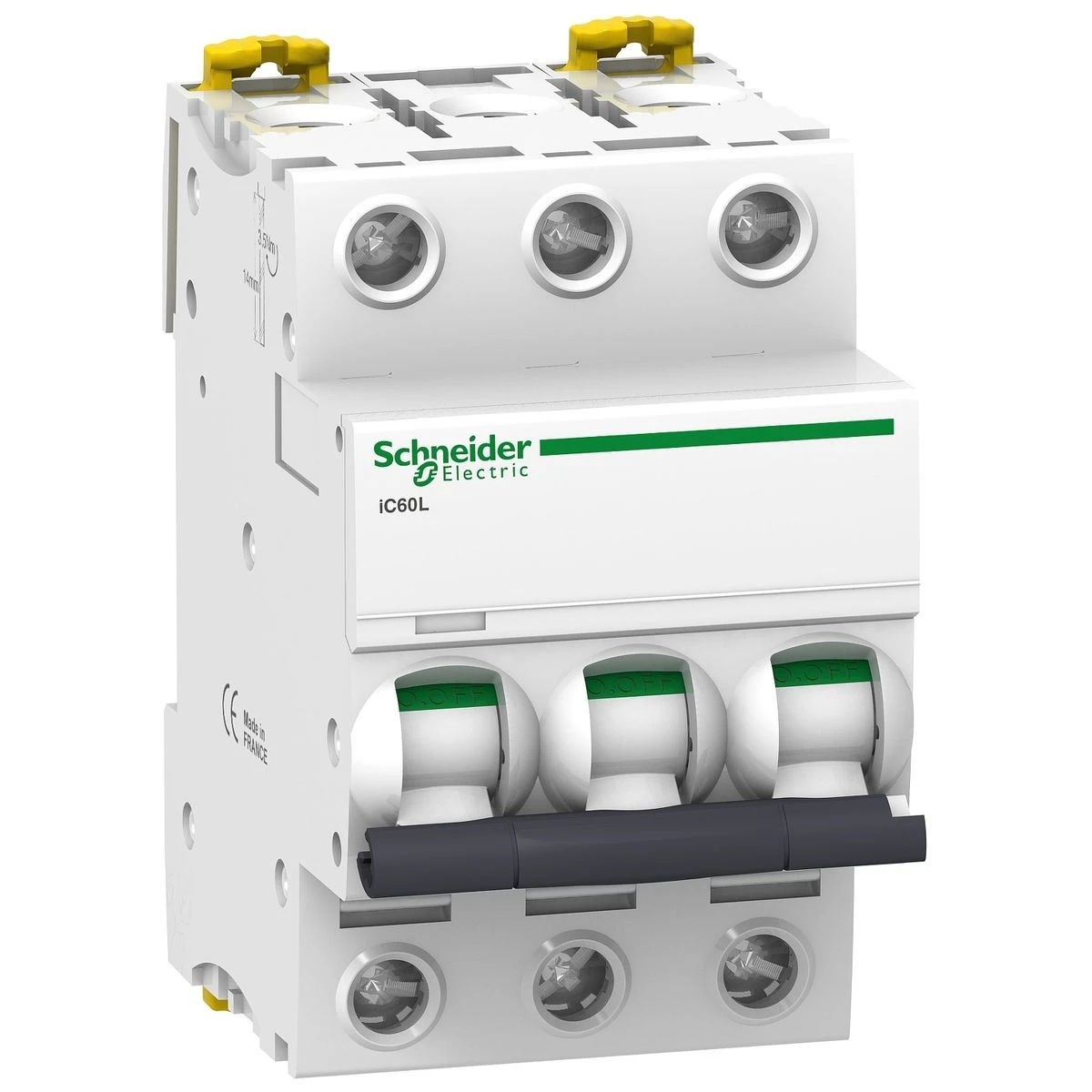

A9F92332 - iC60L - miniature circuit breaker - 3P - 32A - Z curve - Schneider Electric

Pending restock
A9F92332 - iC60L - miniature circuit breaker - 3P - 32A - Z curve - Schneider Electric - iC60L - miniature circuit breaker - 3P - 32A - Z curve - Schneider Electric - 0
A9F92332 - iC60L - miniature circuit breaker - 3P - 32A - Z curve - Schneider Electric
74,12 € excl. VAT
91,90 € incl. VAT
Text About:
iC60L - miniature circuit breaker - 3P - 32A - Z curve - Schneider Electric
91,90 €
SPECIFICATIONS
Additional Information
curve Z
Main
Device short name iC60L
Range Acti9
Number of protected poles 3
Product Name Acti9 iC60
Trip unit technology Thermal-magnetic
[ui] rated insulation voltage 500 V AC 50/60 Hz conforming to EN 60947-2
500 V AC 50/60 Hz conforming to IEC 60947-2
Complementary
9 mm pitches 6
[in] rated current 32 A
[ics] rated service breaking capacity 18 kA 50 % conforming to EN 60947-2 - 220...240 V AC 50/60 Hz
10 kA 50 % conforming to EN 60947-2 - 380...415 V AC 50/60 Hz
7.5 kA 50 % conforming to EN 60947-2 - 440 V AC 50/60 Hz
18 kA 50 % conforming to IEC 60947-2 - 220...240 V AC 50/60 Hz
10 kA 50 % conforming to IEC 60947-2 - 380...415 V AC 50/60 Hz
7.5 kA 50 % conforming to IEC 60947-2 - 440 V AC 50/60 Hz
35 kA 50 % conforming to EN 60947-2 - 12...133 V AC 50/60 Hz
35 kA 50 % conforming to IEC 60947-2 - 12...133 V AC 50/60 Hz
20 kA 100 % conforming to EN 60947-2 - 125...180 V DC
20 kA 100 % conforming to IEC 60947-2 - 125...180 V DC
Control type Toggle
Handle front plate colour 85 mm
Product or component type Miniature circuit-breaker
tightening torque 3.5 N.m top or bottom
[uimp] rated impulse withstand voltage 6 kV conforming to EN 60947-2
6 kV conforming to IEC 60947-2
Comb busbar and distribution block compatibility Top or bottom: YES
Connections - terminals Single terminal (top or bottom) 1…35 mm² rigid
Single terminal (top or bottom) 1…25 mm² flexible
Contact position indication Yes
Device application Distribution
width (w) 54 mm
network frequency 50/60 Hz
Colour White
Local signalling Trip indicator
Mounting mode Fixed
Net weight 0.375 kg
wire stripping length 14 mm for top or bottom connection
Earth-leakage protection Separate block
Mounting support DIN rail
depth 78.5 mm
mechanical durability 20000 cycles
electrical durability 10000 cycles
magnetic trip limit 3 x In +/- 20 %
Network type AC
DC
Pollution degree 3 conforming to EN 60947-2
3 conforming to IEC 60947-2
Limitation class 3 conforming to EN 60898-1
3 conforming to IEC 60898-1
Suitability for isolation Yes conforming to EN 60947-2
Yes conforming to IEC 60947-2
Poles description 3P
Utilisation category Category A conforming to EN 60947-2
Category A conforming to IEC 60947-2
Environment
Ambient air temp for storage/transportation -40…85 °C
ip degree of protection IP20 conforming to IEC 60529
IP20 conforming to EN 60529
operating altitude 0...2000 m
ambient air temperature for operation -35…70 °C
overvoltage category IV
standards IEC 60947-2
EN 60947-2
Tropicalisation 2 conforming to IEC 60068-1
relative humidity 95 % at 55 °C
About this product

The A9F92332 - iC60L - miniature circuit breaker - 3P - 32A - Z curve is conceived to respond to the expectations of industry experts, such as installers, electrical fitters, facility management firms, and original producers. A9F92332 yields outstanding robustness and benefits for engineers in the power management industry. This iC60L - miniature circuit breaker - 3P - 32A - Z curve and other iC60 from Schneider Electric are procurable the best price and supply period through BALTELEC website, a respected merchant catering to engineers in their buying needs.

Clients who have opted for Schneider Electric iC60 have regularly approved the maker's trustworthiness. It has been remarked that the outstanding capability of A9F92332 - iC60L - miniature circuit breaker - 3P - 32A - Z curve extends to a broad spectrum of deployments. Its supreme components make it suitable for assorted uses, promoting success in your industrial, tertiary, and automation efforts.

Our team concentrates in accommodating industrial and tertiary professionals’ needs. We get the particular standards and preferences of our partners in the industry. By collaborating with BaltElec, you receive access to the best price and delivery period of excellent products like A9F92332 - iC60L - miniature circuit breaker - 3P - 32A - Z curve from Schneider Electric at cost-effective price. Professional buyers with Baltelec account enjoy additional savings and dedicated support.

Don't wait and grab A9F92332 - iC60L - miniature circuit breaker - 3P - 32A - Z curve at our protected and convenient webshop. Don't delay in making this shrewd investment that ensures the greatest quality and meets the defined demands of traders like your group.

Should you have any worries or concerns about A9F92332 - iC60L - miniature circuit breaker - 3P - 32A - Z curve or any other Schneider Electric products, get in touch with us or refer to our FAQs section below. We have consolidated answers to frequent concerns to aid you further in making an informed decision about industrial and tertiary electrical components.

Remember, A9F92332 - iC60L - miniature circuit breaker - 3P - 32A - Z curve from Schneider Electric is consistent, inexpensive, and superior to its counterparts in the iC60 category. Make it a part of your configuration now. Order at Baltelec webstore, your reliable source for all your professional electrical equipment and automation needs.

In our Baltelec.eu dot-com store you will spot iC60L - miniature circuit breaker - 3P - 32A - Z curve - A9F92332 worth 90.42 €, which will be a trustworthy and fashionable solution for your wishes. This object is produced by the Schneider Electric brand using the modern technologies and aligns with the peak standards of precaution and capacity. We furnish produce from the iC60 category that unite longevity and efficacy, which is an superior decision for various applications. Not minding of whether you seek apparatus for small assembly or for qualified industrial utilization, iC60L - miniature circuit breaker - 3P - 32A - Z curve will be a sure aid in your work.

Baltelec endeavors to make the shopping process as easy and fast as accomplishable for our clients. We offer detailed portrayals and high-quality visuals of iC60L - miniature circuit breaker - 3P - 32A - Z curve so that you can make an briefed choice. A team of adepts is always ready to help you with any concerns in the iC60 section connected to the choice and use of commodities. We are sure that iC60L - miniature circuit breaker - 3P - 32A - Z curve will meet your criteria and become an indispensable element of your setup for just 90.42 €.
