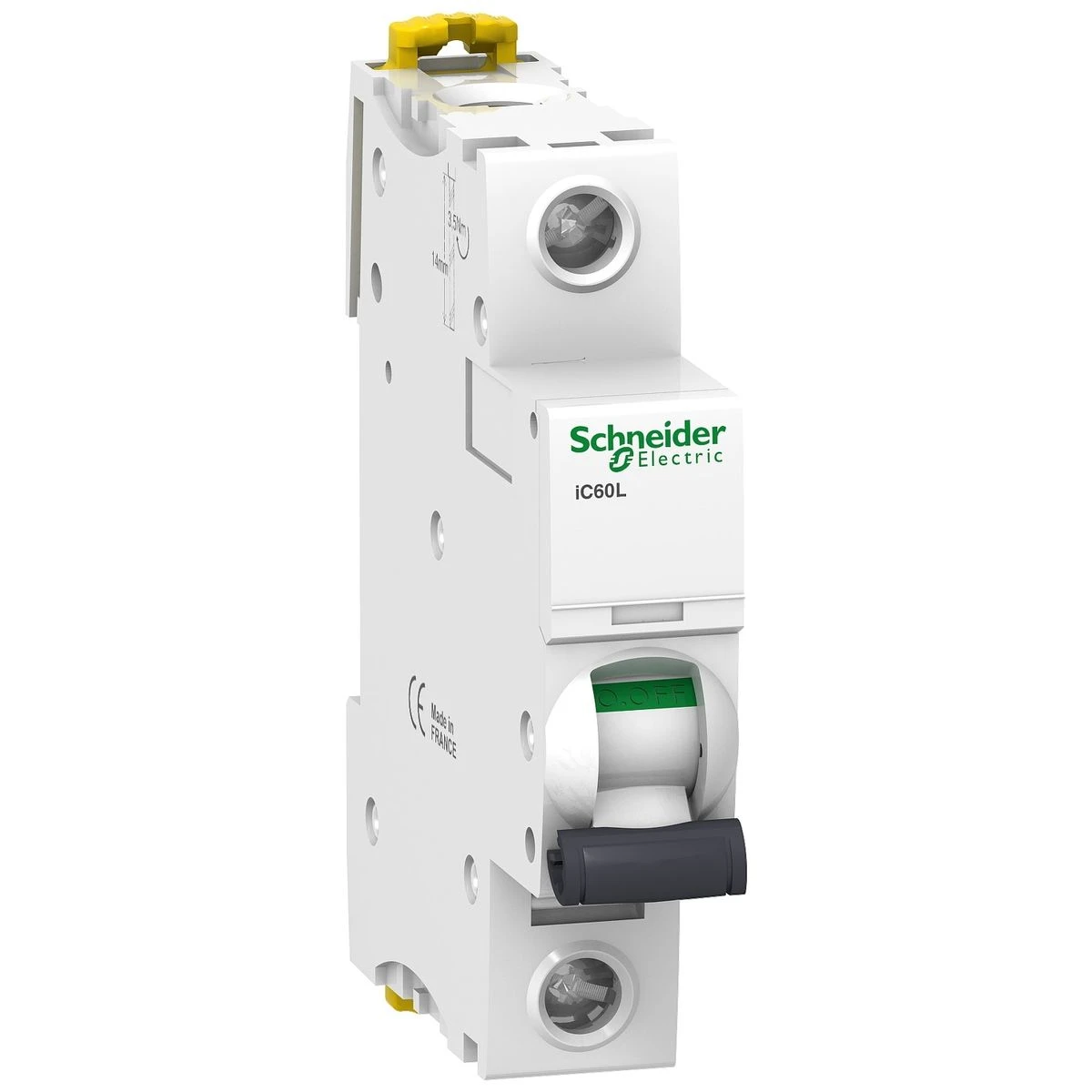

A9F92172 - iC60L - miniature circuit breaker - 1P - 1.6A - Z curve - Schneider Electric

Pending restock
A9F92172 - iC60L - miniature circuit breaker - 1P - 1.6A - Z curve - Schneider Electric - iC60L - miniature circuit breaker - 1P - 1.6A - Z curve - Schneider Electric - 0
A9F92172 - iC60L - miniature circuit breaker - 1P - 1.6A - Z curve - Schneider Electric
18,93 € excl. VAT
23,47 € incl. VAT
Text About:
iC60L - miniature circuit breaker - 1P - 1.6A - Z curve - Schneider Electric
23,47 €
SPECIFICATIONS
Additional Information
curve Z
Main
Device short name iC60L
Range Acti9
Number of protected poles 1
Product Name Acti9 iC60
Trip unit technology Thermal-magnetic
[ui] rated insulation voltage 500 V AC 50/60 Hz conforming to EN 60947-2
500 V AC 50/60 Hz conforming to IEC 60947-2
Complementary
9 mm pitches 2
[in] rated current 1.6 A
[ics] rated service breaking capacity 100 kA 100 % conforming to EN 60947-2 - 12...60 V AC 50/60 Hz
100 kA 100 % conforming to EN 60947-2 - 220...240 V AC 50/60 Hz
100 kA 100 % conforming to IEC 60947-2 - 12...60 V AC 50/60 Hz
100 kA 100 % conforming to IEC 60947-2 - 220...240 V AC 50/60 Hz
100 kA 100 % conforming to EN 60947-2 - 100...133 V AC 50/60 Hz
100 kA 100 % conforming to IEC 60947-2 - 100...133 V AC 50/60 Hz
20 kA 100 % conforming to EN 60947-2 - 72 V DC
20 kA 100 % conforming to IEC 60947-2 - 72 V DC
25 kA 100 % conforming to EN 60947-2 - 12...60 V DC
25 kA 100 % conforming to IEC 60947-2 - 12...60 V DC
Control type Toggle
Handle front plate colour 85 mm
Product or component type Miniature circuit-breaker
tightening torque 2 N.m top or bottom
[uimp] rated impulse withstand voltage 6 kV conforming to EN 60947-2
6 kV conforming to IEC 60947-2
Comb busbar and distribution block compatibility Top or bottom: YES
Connections - terminals Single terminal (top or bottom) 1…25 mm² rigid
Single terminal (top or bottom) 1…16 mm² flexible
Contact position indication Yes
Device application Distribution
width (w) 18 mm
network frequency 50/60 Hz
Colour White
Local signalling Trip indicator
Mounting mode Fixed
Net weight 0.215 kg
wire stripping length 14 mm for top or bottom connection
Earth-leakage protection Without
Mounting support DIN rail
depth 78.5 mm
mechanical durability 20000 cycles
electrical durability 10000 cycles
magnetic trip limit 3 x In +/- 20 %
Network type DC
AC
Pollution degree 3 conforming to EN 60947-2
3 conforming to IEC 60947-2
Limitation class 3 conforming to EN 60898-1
3 conforming to IEC 60898-1
Suitability for isolation Yes conforming to EN 60947-2
Yes conforming to IEC 60947-2
Poles description 1P
Utilisation category Category A conforming to EN 60947-2
Category A conforming to IEC 60947-2
Environment
Ambient air temp for storage/transportation -40…85 °C
ip degree of protection IP20 conforming to IEC 60529
IP20 conforming to EN 60529
operating altitude 0...2000 m
ambient air temperature for operation -35…70 °C
overvoltage category IV
standards EN 60947-2
IEC 60947-2
Tropicalisation 2 conforming to IEC 60068-1
relative humidity 95 % at 55 °C
About this product

The A9F92172 - iC60L - miniature circuit breaker - 1P - 1.6A - Z curve is devised to accommodate the wants of industry experts, such as electrical installers, electrical installers, facility upkeep providers, and original producers. A9F92172 provides first-rate performance and profit for planners in the power management industry. This iC60L - miniature circuit breaker - 1P - 1.6A - Z curve and other iC60 from Schneider Electric are available at the most competitive price and shipping time through BaltElec, a well-regarded supplier attending to professionals in their obtaining needs.

Clients who have acquired Schneider Electric iC60 have repeatedly complimented the manufacturer’s dependability. It has been highlighted that the superior energy-efficiency of A9F92172 - iC60L - miniature circuit breaker - 1P - 1.6A - Z curve extends to a broad spectrum of functions. Its ideal qualities make it appropriate for assorted uses, promoting success in your industrial, tertiary, and automation efforts.

Our team focuses in addressing industrial and tertiary professionals’ needs. We comprehend the particular expectations and preferences of our clients in the sector. By collaborating with our experts, your team acquire access to the superior fees and stock of superior products like A9F92172 - iC60L - miniature circuit breaker - 1P - 1.6A - Z curve from Schneider Electric at cost-effective price. Registered users take pleasure in exclusive discounts and premium support.

Move quickly and request A9F92172 - iC60L - miniature circuit breaker - 1P - 1.6A - Z curve at our trusted and convenient online store. Don't delay in making this sensible option that confirms the supreme quality and covers the particular criteria of traders like your outfit.

When you have any problems or concerns about A9F92172 - iC60L - miniature circuit breaker - 1P - 1.6A - Z curve or any other Schneider Electric products, contact us or refer to our Frequently Asked Questions section below. We have amassed answers to regular concerns to serve you further in making an smart decision about industrial and tertiary electrical components.

Remember, A9F92172 - iC60L - miniature circuit breaker - 1P - 1.6A - Z curve from Schneider Electric is consistent, thrifty, and superior to other brands in the iC60 category. Don't hesitate to make it a part of your electrical system right now. Acquire at baltele.eu, your steady distributor for all your Schneider Electric.

In our Baltelec.eu virtual store you will encounter iC60L - miniature circuit breaker - 1P - 1.6A - Z curve - A9F92172 worth 23.09 €, which will be a dependable and current solution for your preferences. This thing is invented by the Schneider Electric brand using the modern technologies and aligns with the highest standards of assurance and workmanship. We furnish produce from the iC60 category that associate toughness and usability, which is an first-rate alternative for various functions. Irrespective of whether you demand hardware for small assembly or for expert industrial exertion, iC60L - miniature circuit breaker - 1P - 1.6A - Z curve will be a constant companion in your endeavor.

Baltelec endeavors to make the getting process as uncomplicated and fast as accomplishable for our clients. We offer detailed accounts and high-quality shots of iC60L - miniature circuit breaker - 1P - 1.6A - Z curve so that you can make an briefed choice. A team of connoisseurs is always ready to help you with any doubts in the iC60 section pertaining to the opting and use of commodities. We are persuaded that iC60L - miniature circuit breaker - 1P - 1.6A - Z curve will meet your criteria and become an significant element of your kit for just 23.09 €.

Common Queries about Schneider Electric A9F92172:

  • What are the benefits of ordering A9F92172 from BALTELEC?

    When your purchase A9F92172 - iC60L - miniature circuit breaker - 1P - 1.6A - Z curve from BALTELEC, you receive genuine quality Schneider Electric iC60 products at the most competitive prices and delivery period. Additionally, loyal buyersreceive further discounts and first-class attention.

  • Can Baltelec advise if A9F92172 is suitable for my project?

    To ensure that A9F92172 - iC60L - miniature circuit breaker - 1P - 1.6A - Z curve is appropriate for your technical requirements, we provide detailed information pertaining to product's specs, technical characteristics, and applicable standards. You can find this data on the specific page of the item model. If you seek additional help, our customer support team is available to help you in reaching an educated choice.

  • Which guarantee coverage is offered for Schneider Electric iC60L - miniature circuit breaker - 1P - 1.6A - Z curve?

    BaltElec online store stands for the quality of the items we deliver. The regular warranty coverage for Schneider Electric iC60 including A9F92172 is 12 months. Nonetheless, it depends depending on the individual product, category, and could be extended. You can find comprehensive guarantee information on the Schneider Electric iC60L - miniature circuit breaker - 1P - 1.6A - Z curve dedicated page or by reaching out to our customer service representatives.

  • Do you provide global shipping for A9F92172 including other Schneider Electric items?

    Yes. Apart from catering to Estonia, Latvia, Lithuania and other European Union countries, we provide international shipping for Schneider Electric iC60L - miniature circuit breaker - 1P - 1.6A - Z curve. Please keep in mind that shipping options, costs, and delivery schedule may differ depending on the shipping location. For complex orders, feel free to reach out to BALTELEC sales team.

  • Do Schneider Electric MBC provided by BALTELEC adhere to international norms for safety and reliability?

    Of course. All Schneider Electric products provided at Baltelec.eu online store adhere to international norms such as IEC 60898-1 and carry the CE certification. Such norms guarantee that the items meet stringent safety, technical, reliability, and performance criteria.

  • Can BALTELEC provide assistance on integrating renewable energy solutions, such as solar power systems or wind power converters, into my projects?

    Certainly!  Baltelec online store understands the significance of clean energy integration within community. Our team of professionals can assist you in picking the suitable Schneider Electric items, to incorporate them into your renewable energy projects}. We can offer recommendations on integrating solar power systems, wind power converters, and additional eco-friendly options to optimize energy generation and efficiency.

  • Do you have energy-efficient options available within the iC60 category to support environmental sustainability?

    Absolutely! Baltelec.eu online store provides numerous energy-efficient solutions within the iC60 category that are aligned with energy-saving goals. Our Schneider Electric products, such as the A9F92172, are engineered with energy conservation in mind. By integrating these products into your electrical system, you can optimize energy usage and minimize environmental impact. Additionally, we present affordable pricing for our eco-friendly Schneider Electric products,, making them an economical choice for supporting sustainability.

  • Are A9F92172 sold by BaltElec e-shop original?

    Absolutely, we only offer genuine Schneider Electric products, including but not limited to A9F92172. We procure our products solely through legitimate distribution channels to ensure their legitimacy and high quality.
