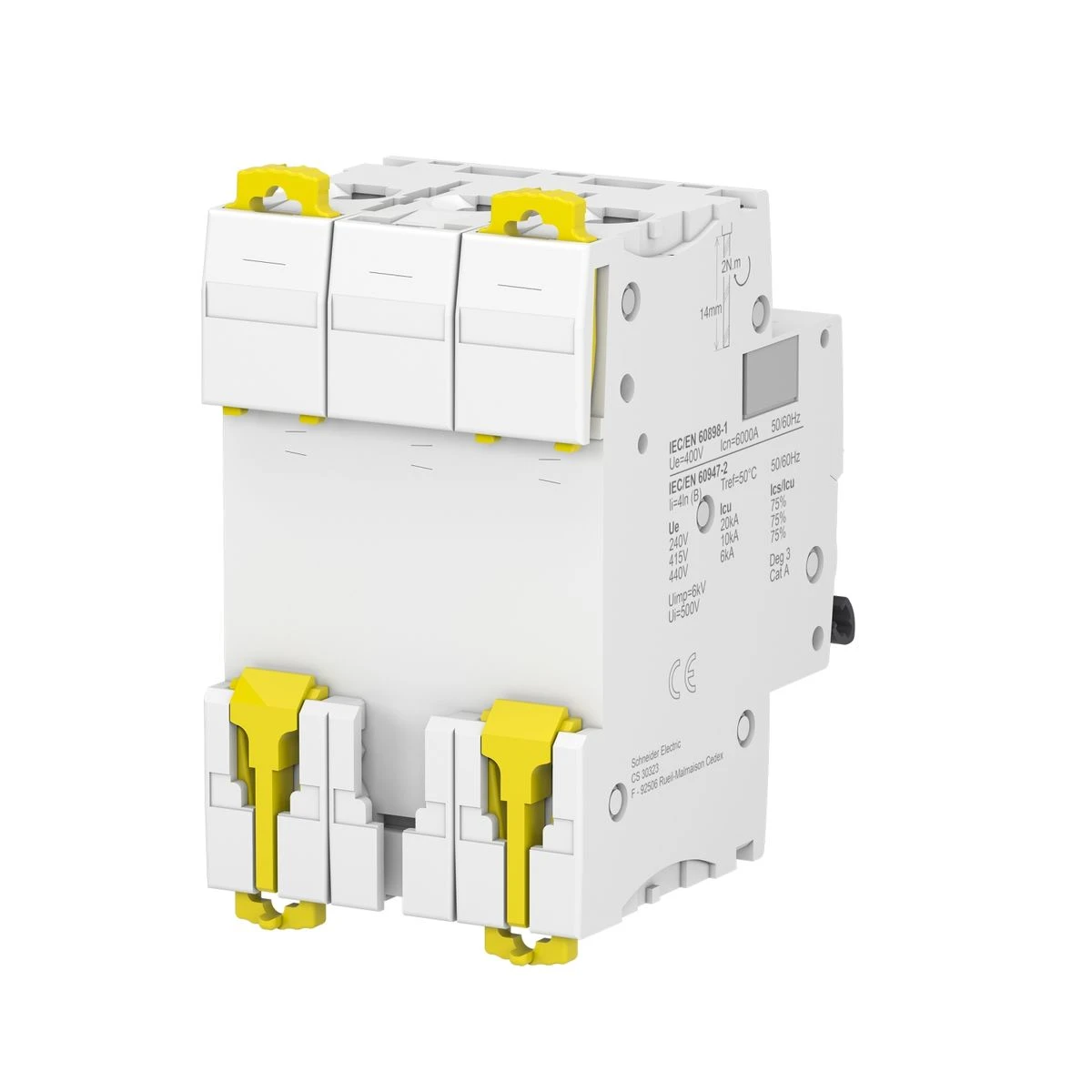

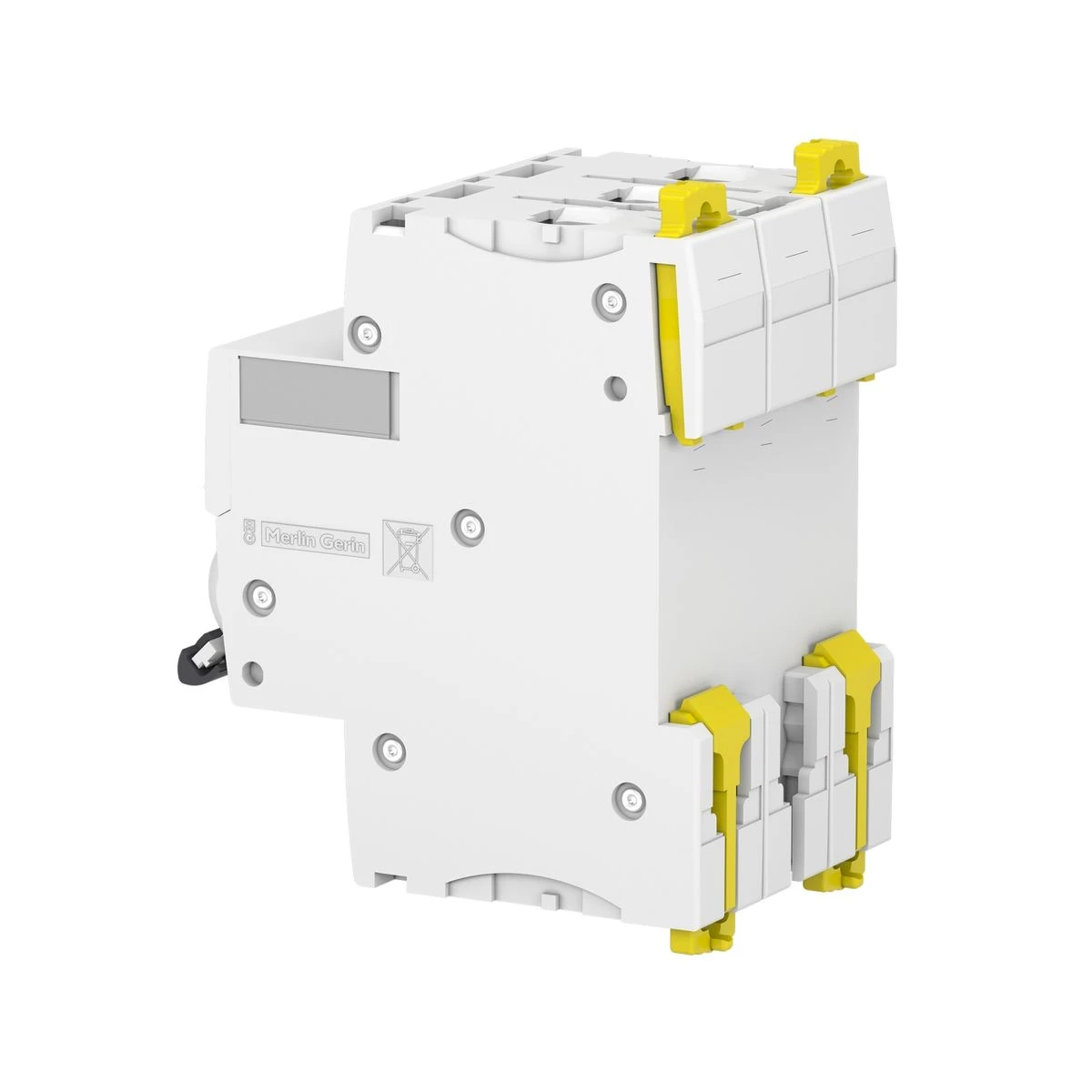

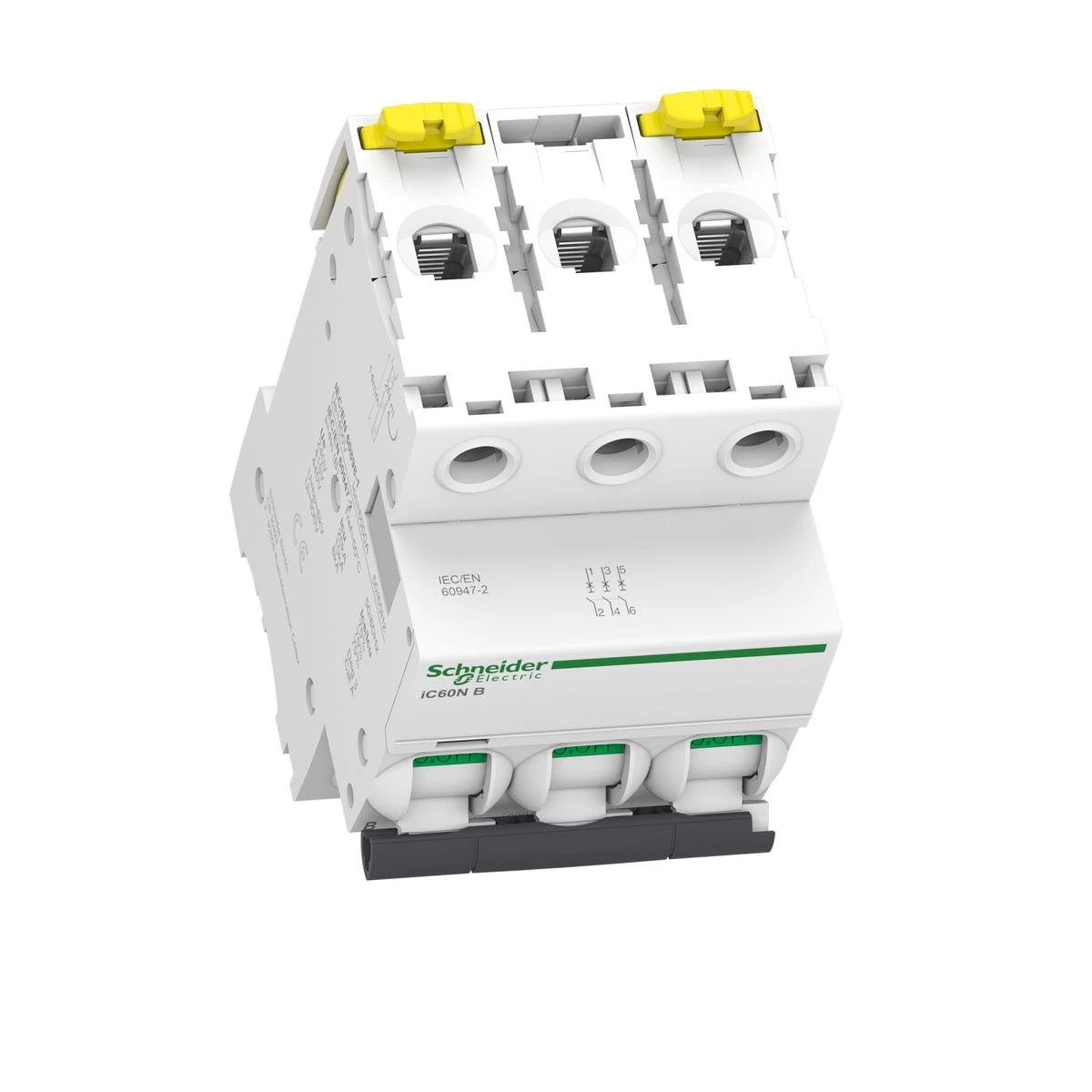

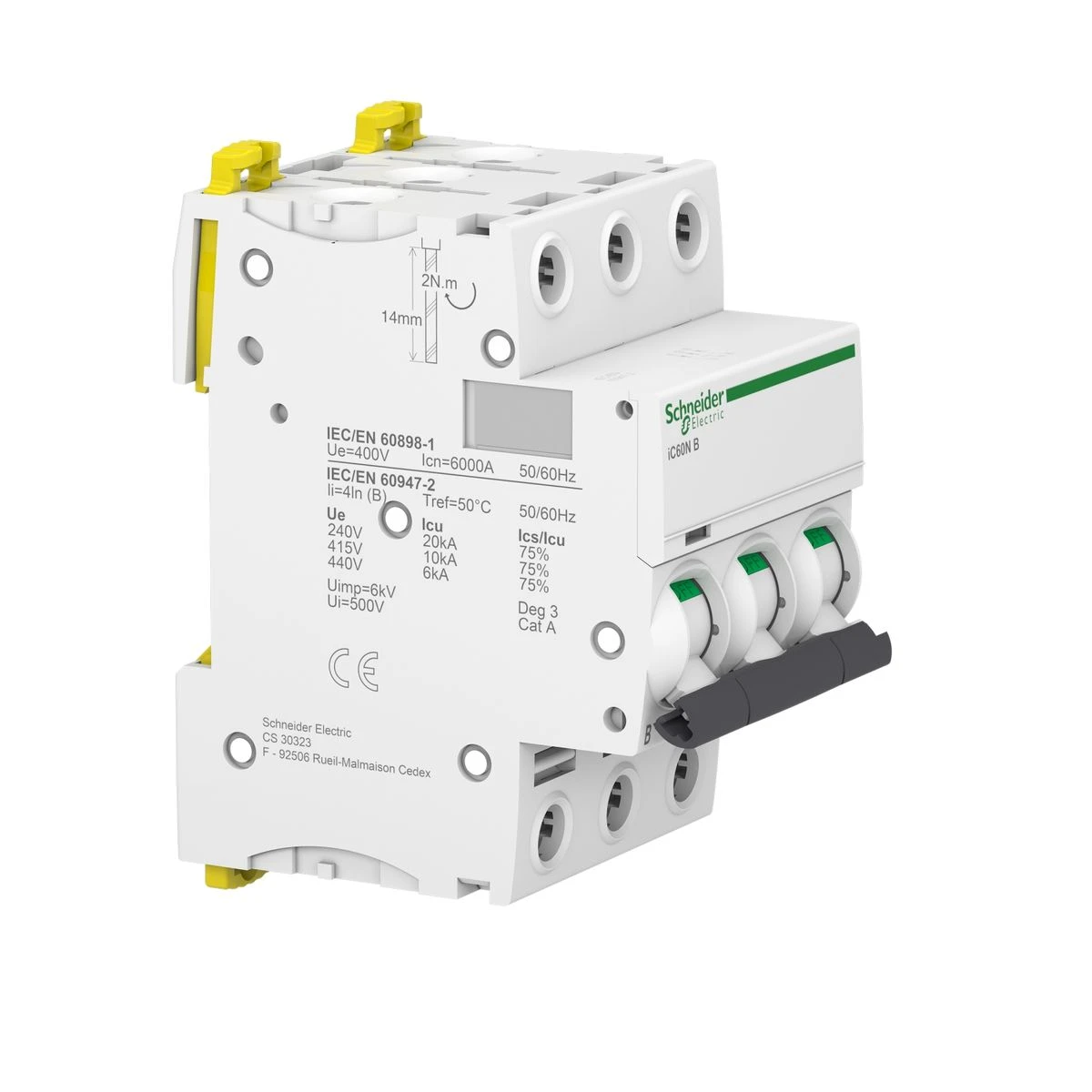

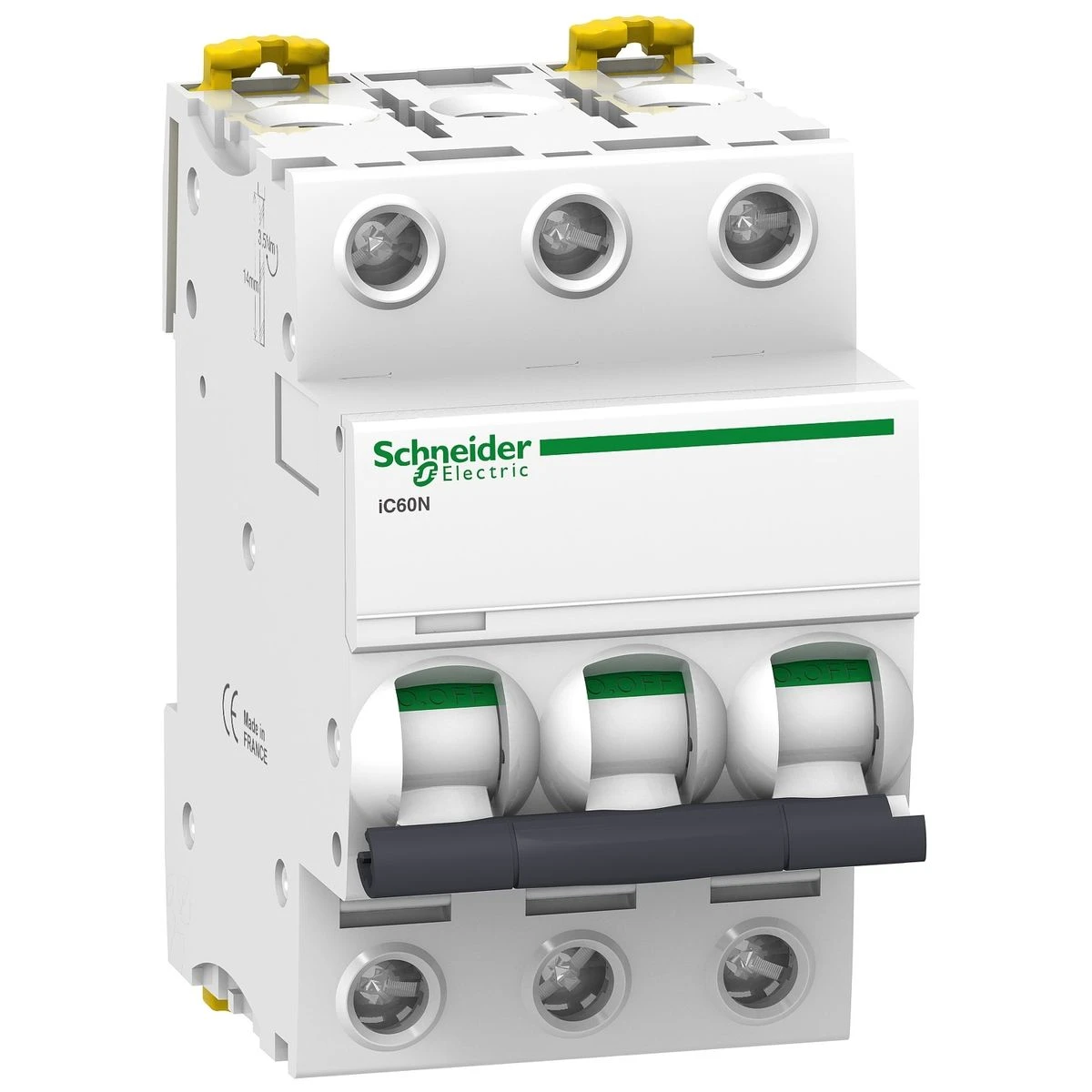

A9F73316 - Miniature circuit breaker (MCB), Acti9 iC60N, 3P, 16A, B curve, 6000A (IEC/EN 60898-1), 10kA (IEC/EN 60947-2) - Schneider Electric

29 In stock

A9F73316 - Miniature circuit breaker (MCB), Acti9 iC60N, 3P, 16A, B curve, 6000A (IEC/EN 60898-1), 10kA (IEC/EN 60947-2) - Schneider Electric

20,74 €

Text About:

Miniature circuit breaker (MCB), Acti9 iC60N, 3P, 16A, B curve, 6000A (IEC/EN 60898-1), 10kA (IEC/EN 60947-2) - Schneider Electric

In cart

20,74 €

SPECIFICATIONS

Additional Information

curve B

Main

Device short name IC60N

Range Acti9

Number of protected poles 3

Product Name Acti9 iC60

Trip unit technology Thermal-magnetic

[ui] rated insulation voltage 500 V AC 50/60 Hz conforming to EN 60947-2
500 V AC 50/60 Hz conforming to IEC 60947-2

Complementary

9 mm pitches 6

[in] rated current 16 A

[ics] rated service breaking capacity 15 kA 75 % conforming to EN 60947-2 - 220...240 V AC 50/60 Hz
7.5 kA 75 % conforming to EN 60947-2 - 380...415 V AC 50/60 Hz
4.5 kA 75 % conforming to EN 60947-2 - 440 V AC 50/60 Hz
15 kA 75 % conforming to IEC 60947-2 - 220...240 V AC 50/60 Hz
7.5 kA 75 % conforming to IEC 60947-2 - 380...415 V AC 50/60 Hz
4.5 kA 75 % conforming to IEC 60947-2 - 440 V AC 50/60 Hz
27 kA 75 % conforming to IEC 60947-2 - 12...133 V AC 50/60 Hz
27 kA 75 % conforming to EN 60947-2 - 12...133 V AC 50/60 Hz
6000 A 100 % conforming to EN 60898-1 - 400 V AC 50/60 Hz
6000 A 100 % conforming to IEC 60898-1 - 400 V AC 50/60 Hz
10 kA 100 % conforming to IEC 60947-2 - 125...180 V DC
10 kA 100 % conforming to EN 60947-2 - 125...180 V DC

Control type Toggle

Handle front plate colour 85 mm

Product or component type Miniature circuit-breaker

tightening torque 2 N.m top or bottom

[uimp] rated impulse withstand voltage 6 kV conforming to EN 60947-2
6 kV conforming to IEC 60947-2

Comb busbar and distribution block compatibility Top or bottom: YES

Connections - terminals Single terminal (top or bottom) 1…25 mm² rigid
Single terminal (top or bottom) 1…16 mm² flexible

Contact position indication Yes

Device application Distribution

width (w) 54 mm

network frequency 50/60 Hz

Colour White

Local signalling Trip indicator

Mounting mode Fixed

Net weight 0.375 kg

wire stripping length 14 mm for top or bottom connection

Earth-leakage protection Separate block

Mounting support DIN rail

depth 78.5 mm

mechanical durability 20000 cycles

electrical durability 10000 cycles

magnetic trip limit 4 x In +/- 20 %

Network type DC
AC

Pollution degree 3 conforming to EN 60947-2
3 conforming to IEC 60947-2

Limitation class 3 conforming to EN 60898-1
3 conforming to IEC 60898-1

Suitability for isolation Yes conforming to EN 60898-1
Yes conforming to EN 60947-2
Yes conforming to IEC 60898-1
Yes conforming to IEC 60947-2

Poles description 3P

Utilisation category Category A conforming to EN 60947-2
Category A conforming to IEC 60947-2

Environment

Ambient air temp for storage/transportation -40…85 °C

ip degree of protection IP20 conforming to IEC 60529
IP20 conforming to EN 60529

operating altitude 0...2000 m

ambient air temperature for operation -35…70 °C

overvoltage category IV

standards EN 60898-1
IEC 60898-1
EN 60947-2
IEC 60947-2

Tropicalisation 2 conforming to IEC 60068-1

relative humidity 95 % at 55 °C
