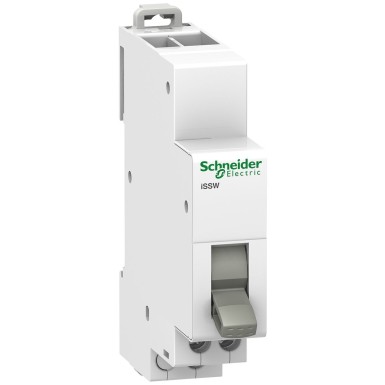

A9E18073 - Acti9, iSSW 3-position switch 1 OF changeover contact 20A 230V - Schneider Electric

Expected in 2-4 weeks EAN: 3606480088506

EAN: 3606480088506

9,76 € excl. VAT

11,90 € incl. VAT

Text About:

Acti9, iSSW 3-position switch 1 OF changeover contact 20A 230V - Schneider Electric

In cart

11,90 €

SPECIFICATIONS

Main

product range Acti9

name of the device iSSW

type of product or equipment Commutateur linéaire

Product Name Acti 9 iSSW

Complementary

9 mm pitches 2

[ie] rated operational current 20 A

[ue] rated operational voltage 250 V CA 50/60 Hz

application Commande de circuit électrique

contact description 1 F/O

Handle front plate colour 82 mm

tightening torque 1 N.m

marking 1 - 0 - 2

mode d'installation Encliquetable

electrical life AC-22: 30000 cycle cos Phi = 0.8

connection mode Bornier tunnel échelonné (dessous) 2 câble(s) 0,5…2,5 mm² souple
Bornier tunnel échelonné (dessous) 2 câble(s) 0,5…2,5 mm² rigide sans extrémité de câble

width (w) 18 mm

Colour Blanc

wire stripping length 9 mm

depth 75 mm

mounting bracket Rail DIN

order type Par maneton 3 positions

Environment

degree of pollution 3

ip degree of protection IP20 se conformer à CEI 60529

standards CEI 60669-1
CEI 60947-5-1

relative humidity 95 % à 55 °C

operating ambient air temperature -20…50 °C

storage room temperature -40…70 °C

tropicalization 2
