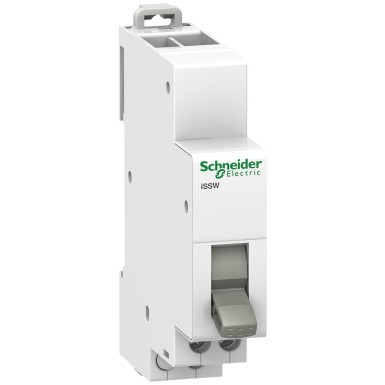

A9E18072 - linear switch - iSSW - 1 NO + 1 NC - 20A - 250 V AC - 2 positions - Schneider Electric
Expected in 2-4 weeks
EAN: 3606480088490
16,13 € excl. VAT
19,68 € incl. VAT
Text About:
linear switch - iSSW - 1 NO + 1 NC - 20A - 250 V AC - 2 positions - Schneider Electric
SPECIFICATIONS
Main
product range
Acti9
name of the device
iSSW
type of product or equipment
Commutateur linéaire
Product Name
Acti 9 iSSW
Complementary
9 mm pitches
2
[ie] rated operational current
20 A
[ue] rated operational voltage
250 V CA 50/60 Hz
application
Commande de circuit électrique
contact description
1 "O" + 1 "F"
Handle front plate colour
82 mm
tightening torque
1 N.m
marking
0 - 1
mode d'installation
Encliquetable
electrical life
AC-22: 30000 cycle cos Phi = 0.8
connection mode
Bornier tunnel échelonné (dessous) 2 câble(s) 0,5…2,5 mm² souple
Bornier tunnel échelonné (dessous) 2 câble(s) 0,5…2,5 mm² rigide sans extrémité de câble
Bornier tunnel échelonné (dessous) 2 câble(s) 0,5…2,5 mm² rigide sans extrémité de câble
width (w)
18 mm
Colour
Blanc
wire stripping length
9 mm
depth
75 mm
mounting bracket
Rail DIN
order type
Par maneton 2 positions
Environment
degree of pollution
3
ip degree of protection
IP20 se conformer à CEI 60529
operating ambient temperature
-20…50 °C
standards
CEI 60669-1
CEI 60947-5-1
CEI 60947-5-1
relative humidity
95 % à 55 °C
storage room temperature
-40…70 °C
tropicalization
2
