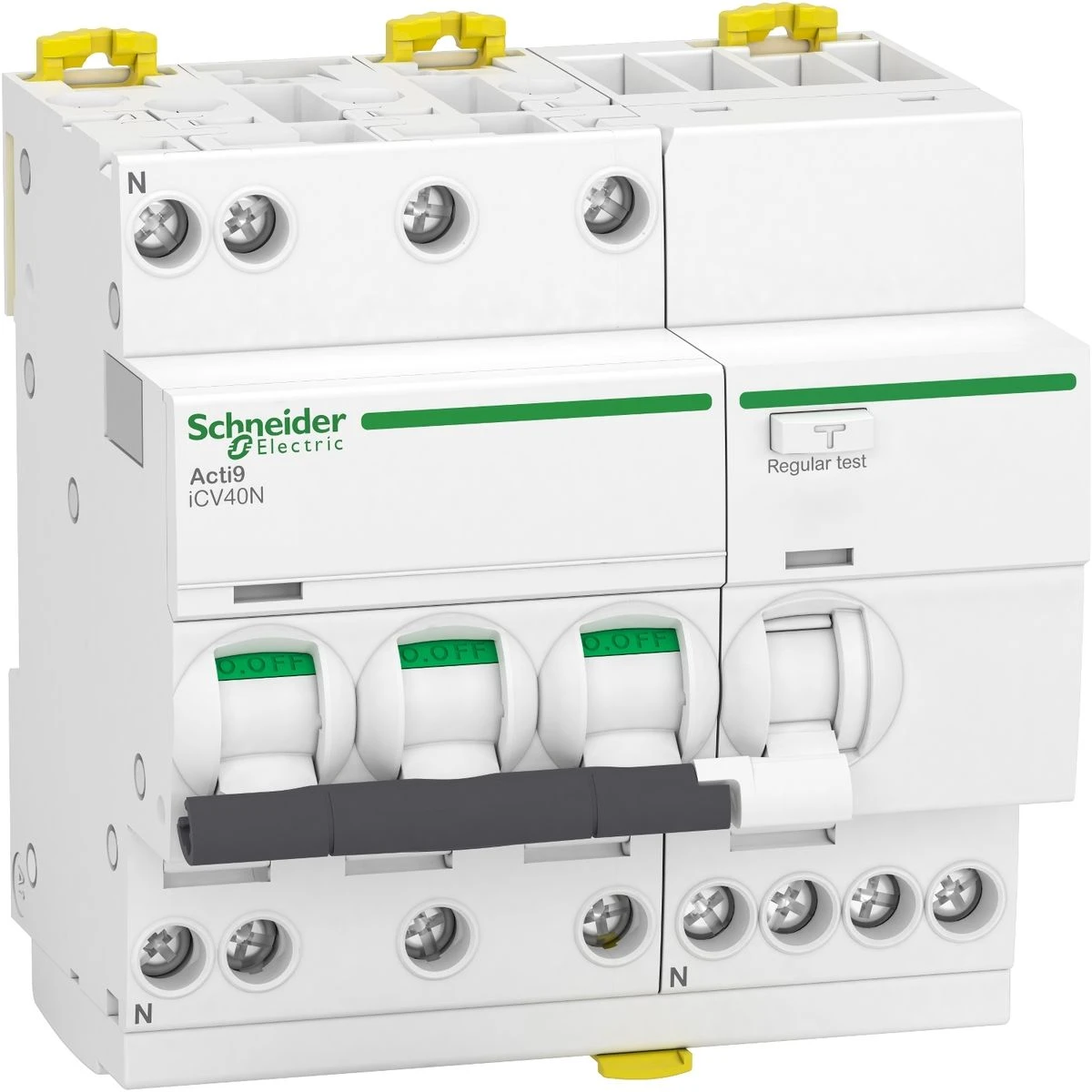

A9DE3716 - Residual current breaker with overcurrent protection (RCBO), Acti9 iCV40N, 3P+N, 16A, C curve, 6000A, AC type, 30mA - Schneider Electric
Expected in 2-4 weeks
139,86 € excl. VAT
170,63 € incl. VAT
Text About:
Residual current breaker with overcurrent protection (RCBO), Acti9 iCV40N, 3P+N, 16A, C curve, 6000A, AC type, 30mA - Schneider Electric
SPECIFICATIONS
Additional Information
curve
C
Main
Device short name
iCV40N
Device location in system
Outgoer
Range
Acti9
Earth-leakage protection class
Type AC
Neutral position
Left
Number of protected poles
3
Earth-leakage protection time delay
Instantaneous
Earth-leakage sensitivity
30 mA
Product Name
Acti9 iCV40
Trip unit technology
Thermal-magnetic
[ui] rated insulation voltage
440 V AC 50/60 Hz
Complementary
9 mm pitches
10
[in] rated current
16 A
[ue] rated operational voltage
400 V AC 50/60 Hz
[ics] rated service breaking capacity
6000 A 100 % x Icn at 400 V AC 50/60 Hz conforming to EN/IEC 61009-2-1
Control type
Toggle
Product certifications
CE
Connection pitch
18 mm between phases
9 mm between phase and neutral
9 mm between phase and neutral
Handle front plate colour
93 mm
Product or component type
Residual current breaker with overcurrent protection (RCBO)
tightening torque
2 N.m top or bottom
[uimp] rated impulse withstand voltage
4 kV
Comb busbar and distribution block compatibility
Top or bottom: tooth
Connections - terminals
Tunnel type terminals top or bottom 1…16 mm² rigid
Tunnel type terminals top or bottom 1…10 mm² flexible
Tunnel type terminals top or bottom 1…10 mm² flexible
Locking options description
Padlocking device
Sealable
Sealable
Contact position indication
Yes
Device application
Distribution
width (w)
90 mm
network frequency
50/60 Hz
Colour
White
Local signalling
Fault indication
ON/OFF indication
ON/OFF indication
Mounting mode
Clip-on
Net weight
500 g
wire stripping length
14 mm for top or bottom connection
Earth-leakage protection
Integrated
Mounting support
DIN rail
depth
73 mm
mechanical durability
20000 cycles
electrical durability
20000 cycles
magnetic trip limit
5...10 x In
Network type
AC
Pollution degree
3
Limitation class
3 conforming to EN/IEC 61009-2-1
residual current tripping technology
Voltage independent
Suitability for isolation
Yes conforming to EN/IEC 60947-2
Poles description
3P + N
Environment
Ambient air temp for storage/transportation
-40…85 °C
ip degree of protection
IP20 conforming to IEC 60529
IP40 (modular enclosure) conforming to IEC 60529
IP40 (modular enclosure) conforming to IEC 60529
operating altitude
2000 m
ambient air temperature for operation
-5…60 °C
electromagnetic compatibility
8/20 µs impulse withstand, 250 A conforming to EN/IEC 61009-1
overvoltage category
III conforming to IEC 60364
standards
EN/IEC 61009-2-1
quality labels
EAC
IMQ
IMQ
relative humidity
95 % at 55 °C
