A9D47210 - Schneider Electric ⚡

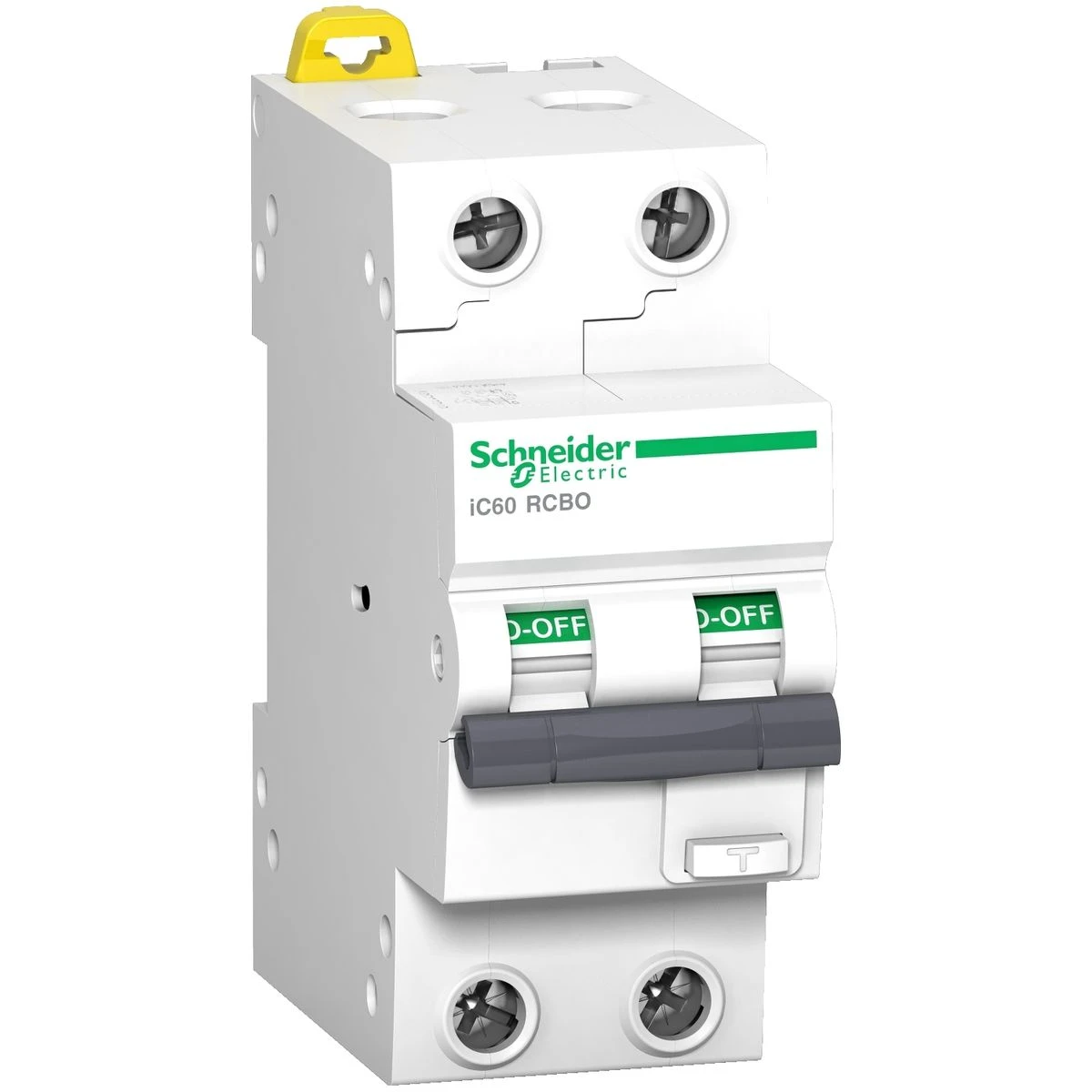

A9D47210 - Residual current breaker with overcurrent protection (RCBO), Acti9 iC60, 2P, 10A, B curve, 10000A/15kA, A-SI type, 30mA - Schneider Electric

Expected in 2-4 weeks

195,78 €

Text About:

Residual current breaker with overcurrent protection (RCBO), Acti9 iC60, 2P, 10A, B curve, 10000A/15kA, A-SI type, 30mA - Schneider Electric

In cart

195,78 €

SPECIFICATIONS

Additional Information

curve B

Main

Device short name iC60 RCBO

Device location in system Outgoer

Range Acti9

Earth-leakage protection class Type A-SI (Super Immunised)

Number of protected poles 2

Earth-leakage protection time delay Instantaneous

Earth-leakage sensitivity 30 mA

Product Name Acti9 iC60 RCBO

Trip unit technology Thermal-magnetic

[ui] rated insulation voltage 500 V AC 50 Hz

Complementary

9 mm pitches 4

[in] rated current 10 A

[ue] rated operational voltage 220...240 V AC 50 Hz

[ics] rated service breaking capacity 7500 A 75 % x Icn at 220...240 V AC 50 Hz conforming to EN/IEC 61009-2-1
7.5 kA 50 % x Icu at 220...240 V AC 50 Hz conforming to EN/IEC 60947-2

Control type Toggle

Connection pitch 9 mm between poles

Handle front plate colour 86 mm

Product or component type Residual current breaker with overcurrent protection (RCBO)

tightening torque 2 N.m

[uimp] rated impulse withstand voltage 4 kV

Comb busbar and distribution block compatibility Top or bottom: YES
Bottom: biconnect

Connections - terminals Tunnel type terminal top or bottom 1…35 mm² rigid
Tunnel type terminal top or bottom 1…25 mm² flexible
Tunnel type terminal top or bottom 1…25 mm² flexible with ferrule

Contact position indication No

Device application Distribution

width (w) 36 mm

network frequency 50 Hz

Colour White

Local signalling ON, OFF, fault trip

Mounting mode Clip-on

Net weight 273 g

wire stripping length 12 mm for top or bottom connection

Earth-leakage protection Integrated

Mounting support DIN rail

depth 78 mm

mechanical durability 20000 cycles

electrical durability 10000 cycles

magnetic trip limit 3...5 x In

Network type AC

Limitation class 3 conforming to EN/IEC 61009-2-1

residual current tripping technology Voltage independent

Surge current 3000 A

Suitability for isolation No conforming to IEC 60947-1

Poles description 2P

Environment

Ambient air temp for storage/transportation -40…70 °C

ip degree of protection IP40 (distribution enclosure) conforming to IEC 60529
IP20 conforming to IEC 60529

ambient air temperature for operation -25…40 °C

electromagnetic compatibility 8/20 µs impulse withstand, 3000 A conforming to EN/IEC 61009-2-1

overvoltage category III conforming to IEC 60364

standards EN/IEC 60947-2
EN/IEC 61009-2-1

quality labels IMQ
NF
VDE
KEMA-KEUR

Tropicalisation 2

relative humidity 95 % at 55 °C
